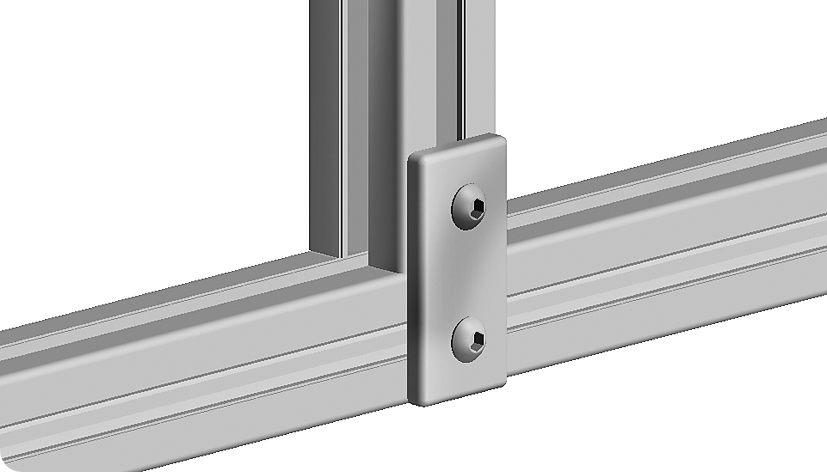

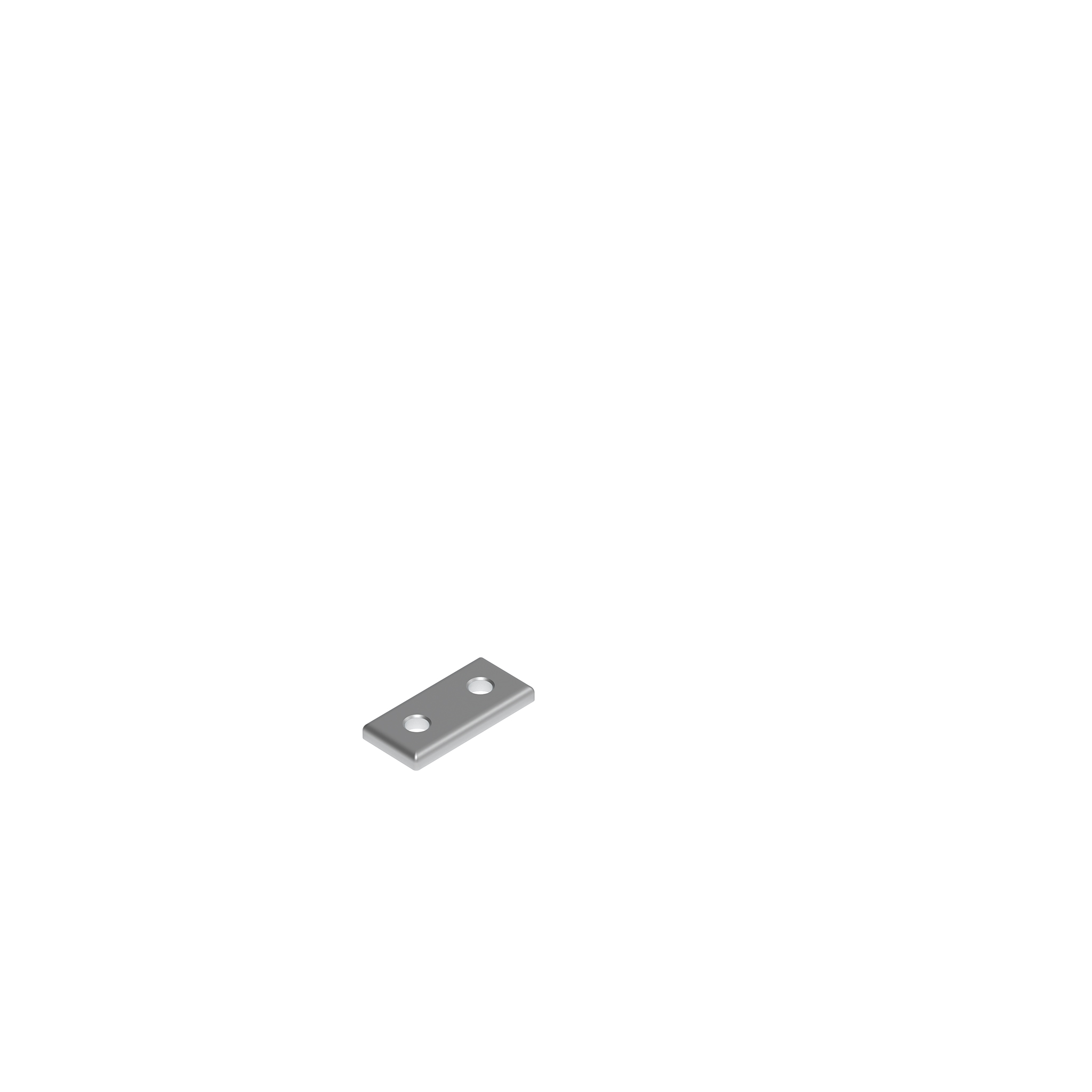

Connection Plate AL Rectangular 2 Hole, 1 Slot Version

Product information "Connection Plate AL Rectangular 2 Hole, 1 Slot Version"

Delivery Countries:
Worldwide

Description:
To connect two aluminum profiles

Material:
Aluminum

Specials:
Other surfaces, other colors on request

Surface:
Anodized

Zolltarifnummer:
76169990990

(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
Model:	Aluminum
Pack Quantity:	10 pieces
Weight (g):	7.0

Variants

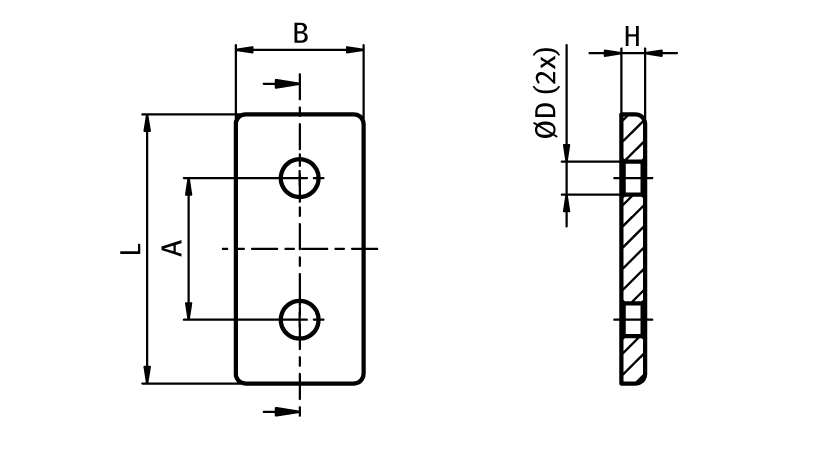

Product ID	L (mm)	Version	H (mm)	A (mm)	ØD (mm)	B (mm)
093VA2040	38.0	20 / 40	4.0	20.0	5.5	18.0
093VA2551	48.0 (1.89")	25 / 51 - 1" / 2"	4.0	25.4 (1")	7.0	23.0 (0.9")
093VA3060	57.0	30 / 60	5.0	30.0	7.0	27.0
093VA3876	72.0 (2.8")	38 / 76 - 1.5" / 3"	6.0	38.1 (1.5")	9.0	34.0 (1.34")
093VA4080	76.0	40 / 80	6.0	40.0	9.0	36.0
093VA4590	86.0	45 / 90	6.0	45.0	9.0	41.0
