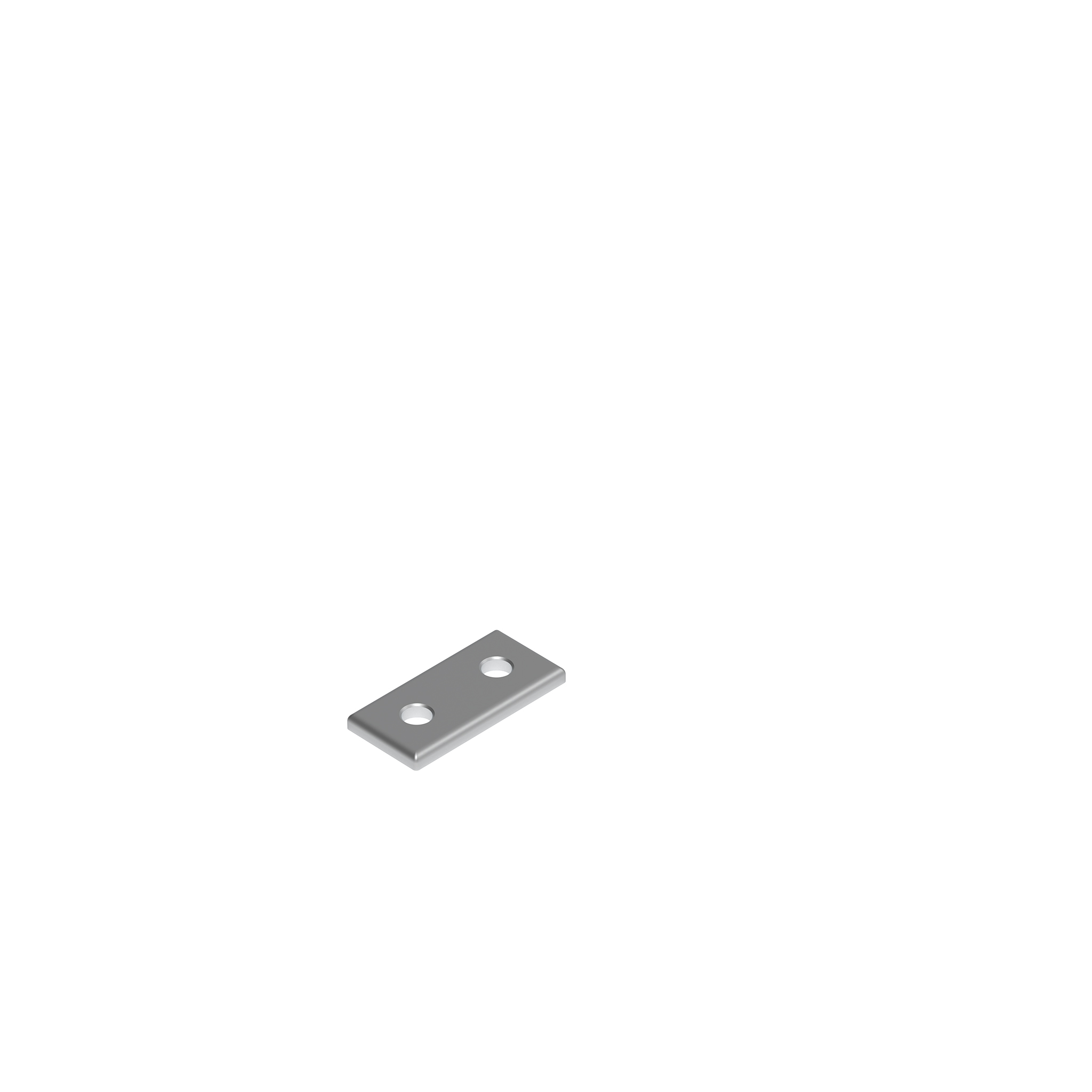

Connection Plate AL Rectangular 2 Hole, 1 Slot Version

Product information "Connection Plate AL Rectangular 2 Hole, 1 Slot Version"

Delivery Countries:
Worldwide / North America

Description:
To connect two aluminum profiles

Material:
Aluminum

Specials:
Other surfaces, other colors on request

Surface:
Anodized

Pack Quantity:	10 pieces
Model:	Aluminum
Weight (g):	11.0
ECLASS 6.0:	23360290
ECLASS 7.0:	23360290
ECLASS 8.0:	23360290
ECLASS 9.0:	23360290
ECLASS 10.0:	23360290
ECLASS 11.0:	23360290
ECLASS 12.0:	23360290
ECLASS 13.0:	23360290
Zolltarifnummer:	76169990990
Customs Tariff Number Export:	76169990
ERP Number:	119484

Variants

Part #	Version	H (mm)	A (mm)	B (mm)	L (mm)	ØD (mm)
093VA2040	20 / 40	4.0	20.0	18.0	38.0	5.5
093VA2551	25 / 51 - 1" / 2"	4.0	25.4 (1")	23.0 (0.9")	48.0 (1.89")	7.0
093VA3060	30 / 60	5.0	30.0	27.0	57.0	7.0
093VA3876	38 / 76 - 1.5" / 3"	6.0	38.1 (1.5")	34.0 (1.34")	72.0 (2.8")	9.0
093VA4080	40 / 80	6.0	40.0	36.0	76.0	9.0
093VA4590	45 / 90	6.0	45.0	41.0	86.0	9.0
