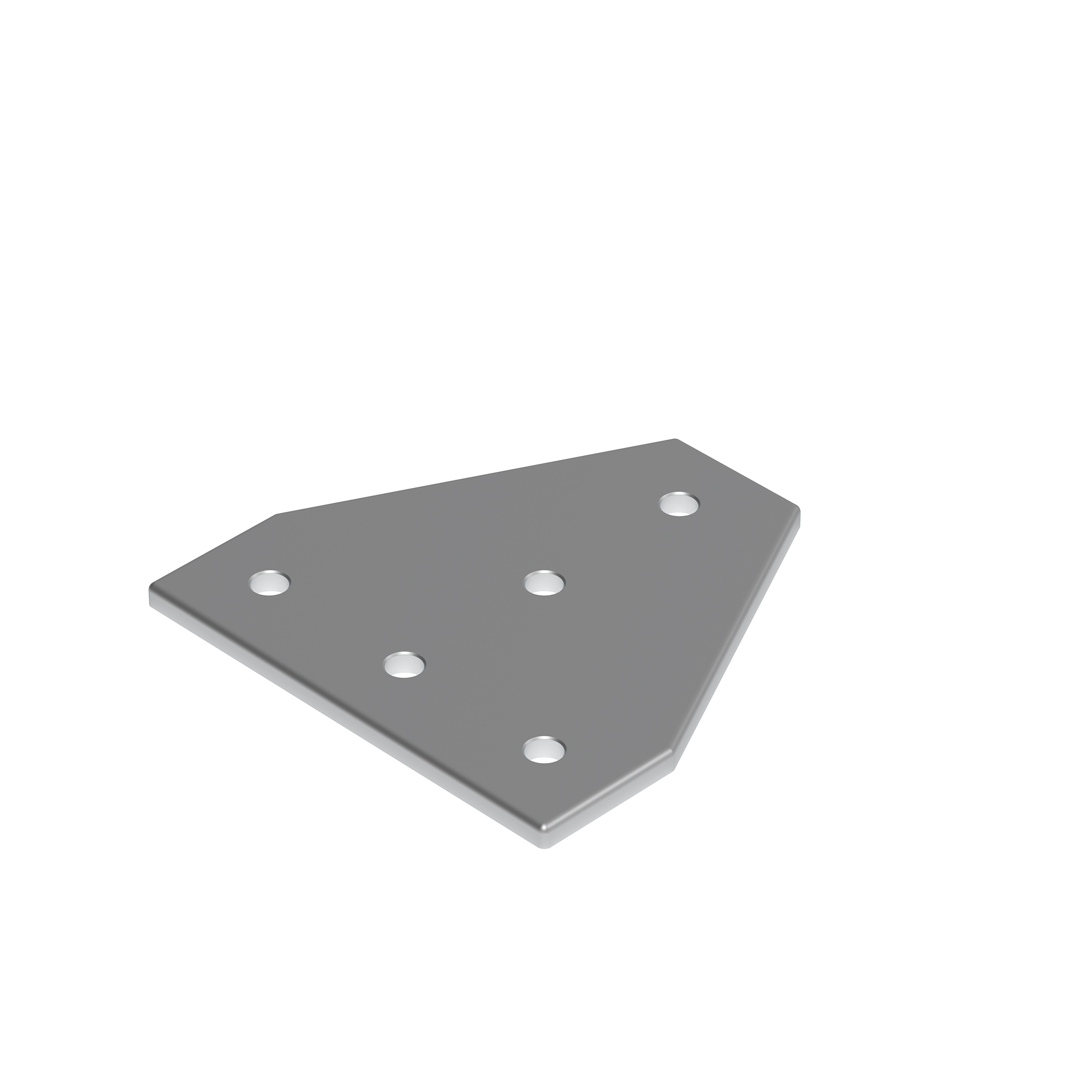

Connection Plate AL T 5 Hole, 1 Slot Version

Product information "Connection Plate AL T 5 Hole, 1 Slot Version"

Delivery Countries:
Worldwide

Description:

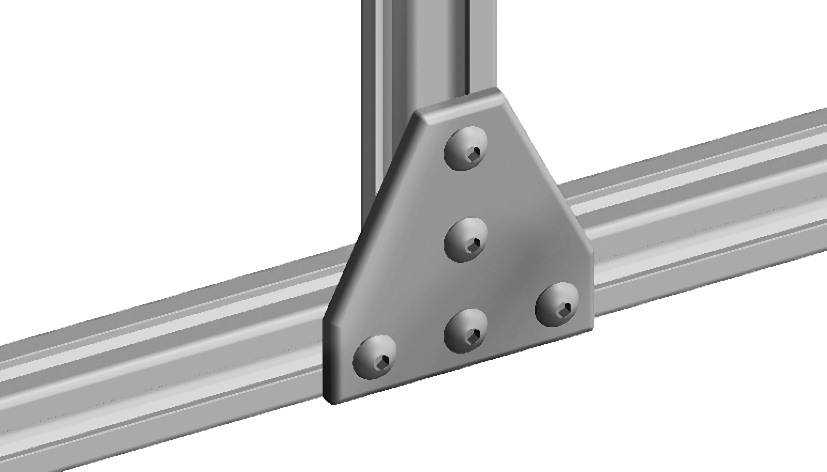

To tee connect two aluminum profiles

Material:
Aluminum

Specials:
Other surfaces, other colors on request

Surface:
Anodized
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Aluminum
Pack Quantity: 10 pieces
Weight (g): 210.0

Variants

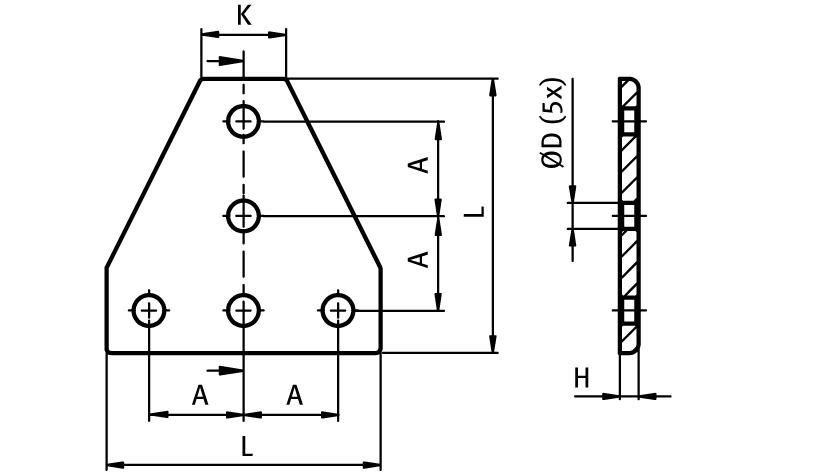

Product ID H (mm) ØD (mm) K (mm) A (mm) Version L (mm)
093VT114114 6.0 9.0 34.0 (1.3") 38.1 (1.5") 114 / 114 - 4.48" / 4.48" 110.0
093VT120120 6.0 9.0 36.0 40.0 120 / 120 116.0
093VT135135 6.0 9.0 41.0 45.0 135 / 135 131.0
093VT6060 4.0 5.5 18.0 20.0 60 / 60 58.0
093VT7676 4.0 7.0 23.0 (0.9") 25.4 (1") 76.2 / 76.2 - 3" / 3" 73.0 (2.9")
093VT9090 5.0 7.0 27.0 30.0 90 / 90 87.0
