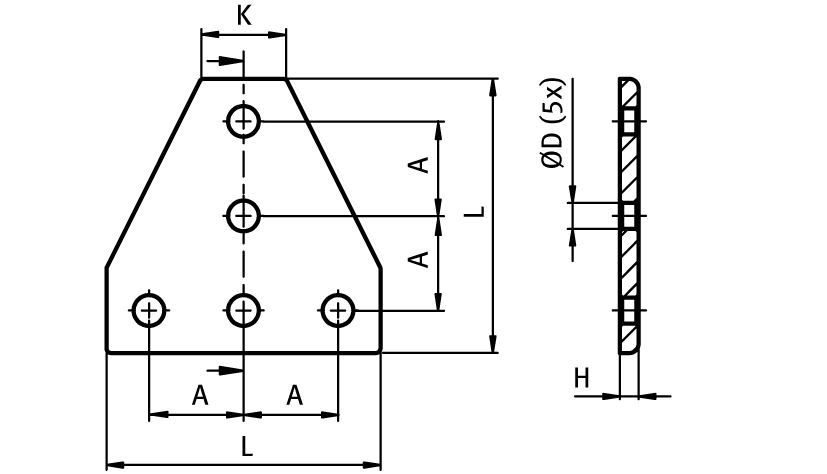

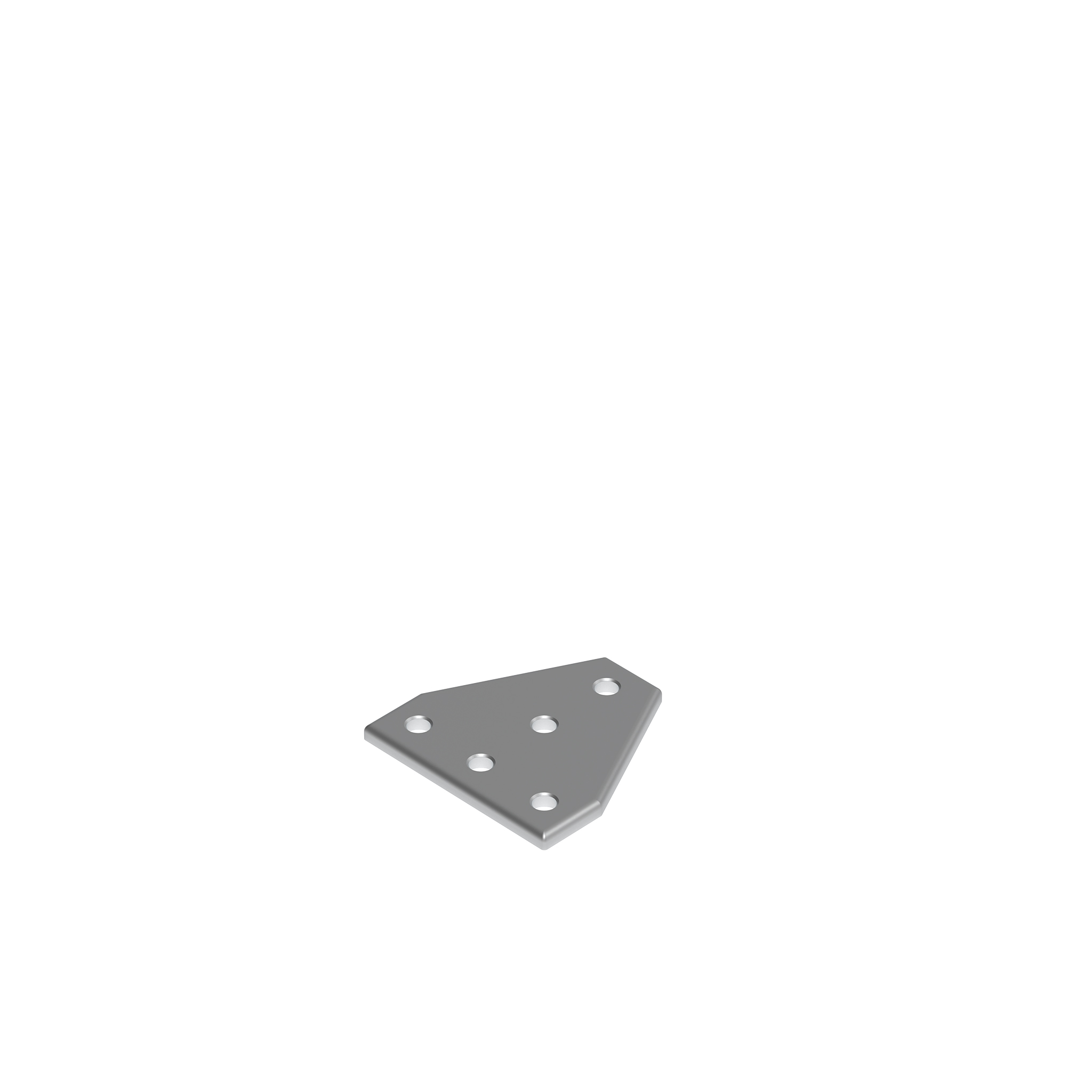

Connection Plate AL T 5 Hole, 1 Slot Version

Product information "Connection Plate AL T 5 Hole, 1 Slot Version"

Delivery Countries:
Worldwide / North America

Description:

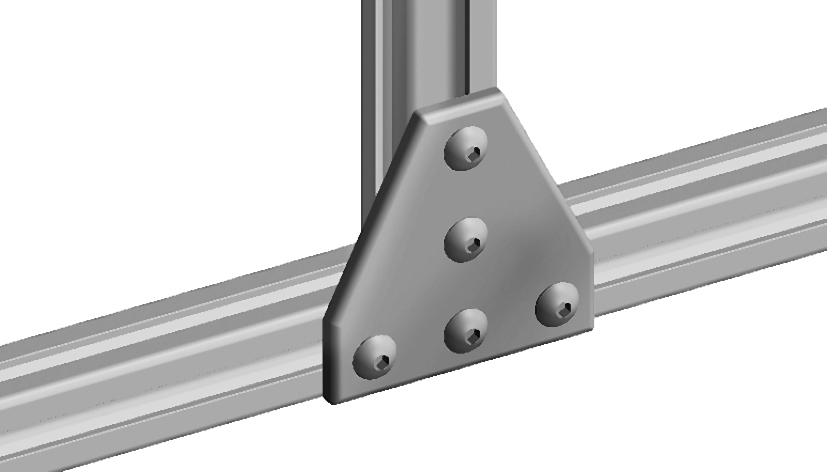

To tee connect two aluminum profiles

Material:
Aluminum

Specials:
Other surfaces, other colors on request

Surface:
Anodized

Pack Quantity:	10 pieces
Model:	Aluminum
Weight (g):	27.0
ECLASS 6.0:	23360290
ECLASS 7.0:	23360290
ECLASS 8.0:	23360290
ECLASS 9.0:	23360290
ECLASS 10.0:	23360290
ECLASS 11.0:	23360290
ECLASS 12.0:	23360290
ECLASS 13.0:	23360290
Customs Tariff Number Export:	76169990
ERP Number:	118318

Variants

Part #	Version	H (mm)	A (mm)	L (mm)	K (mm)	ØD (mm)
093VT114114	114 / 114 - 4.48" / 4.48"	6.0	38.1 (1.5")	110.0	34.0 (1.3")	9.0
093VT120120	120 / 120	6.0	40.0	116.0	36.0	9.0
093VT135135	135 / 135	6.0	45.0	131.0	41.0	9.0
093VT6060	60 / 60	4.0	20.0	58.0	18.0	5.5
093VT7676	76.2 / 76.2 - 3" / 3"	4.0	25.4 (1")	73.0 (2.9")	23.0 (0.9")	7.0
093VT9090	90 / 90	5.0	30.0	87.0	27.0	7.0
