Corner Connector 40, 2D with Cable Passage (Set)

Product information "Corner Connector 40, 2D with Cable Passage (Set)"

Color:
Cover cap: gray ≈ RAL 7042

Delivery Countries:
Worldwide

Description:

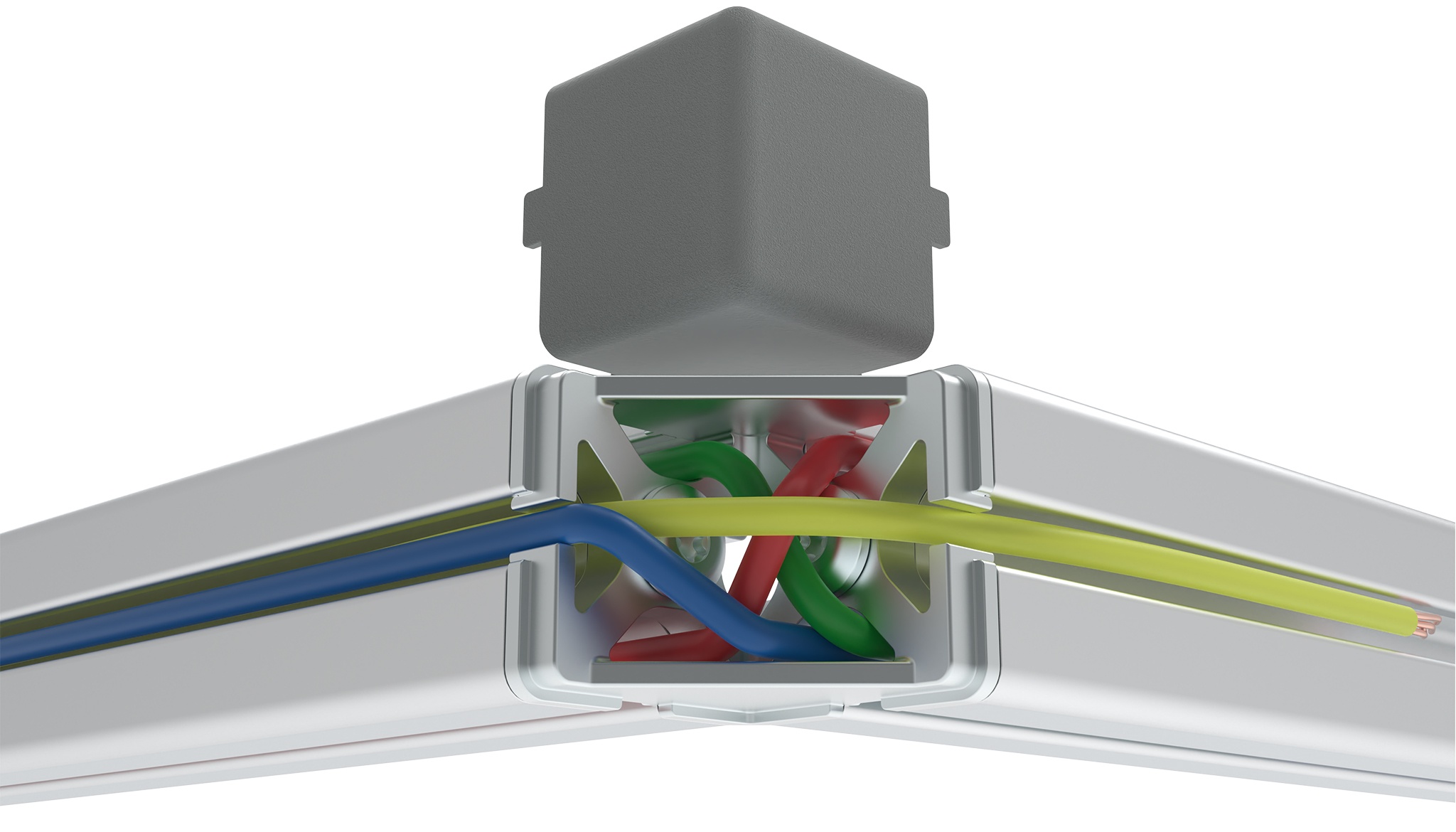

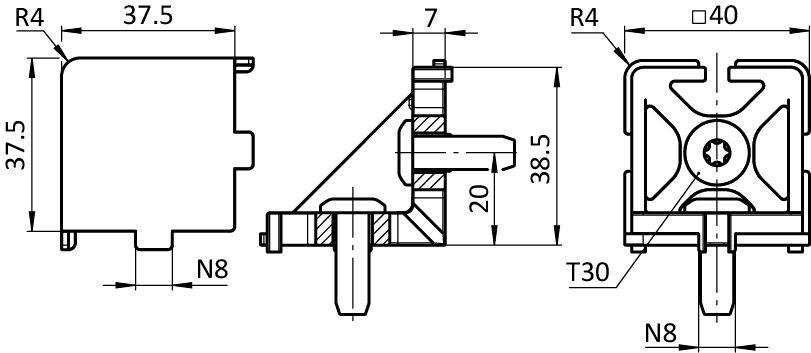

To connect two aluminum profiles at right angles, with opening in slot geometry for passage of cables;
With cover cap to cover the open side of the corner connector

Material:
Corner connector: Zinc die-cast
Cover cap: Plastic PA, glass ball reinforced
Self forming screw: Steel

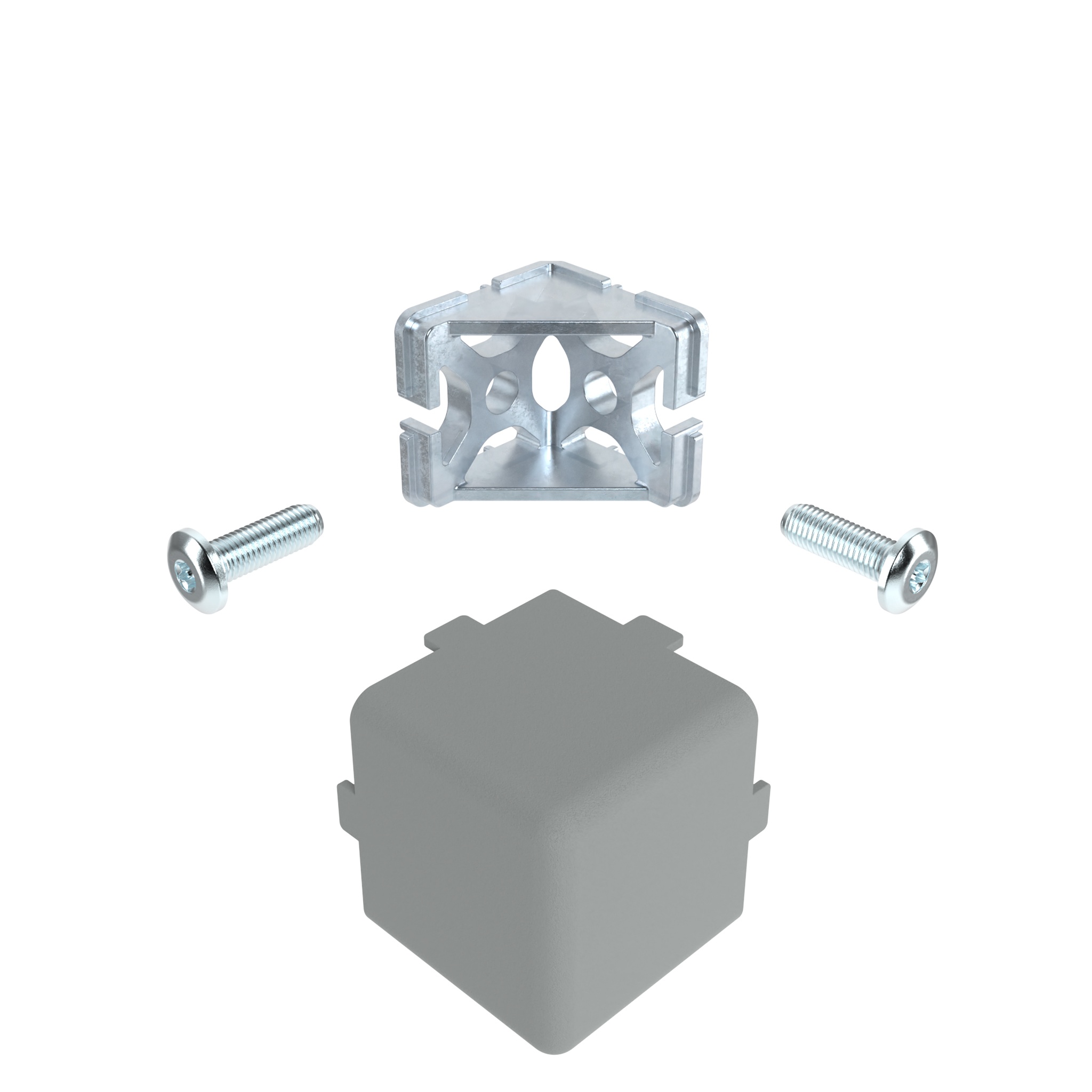

Set:
1 corner connector 40, 2D with cable passage
1 cover cap
2 self forming screws - S7 x 22

Specials:
Other materials, other surfaces, other colors on request

Surface:
Corner connector: Zinc plated
Self forming screw: Zinc plated

Tip:

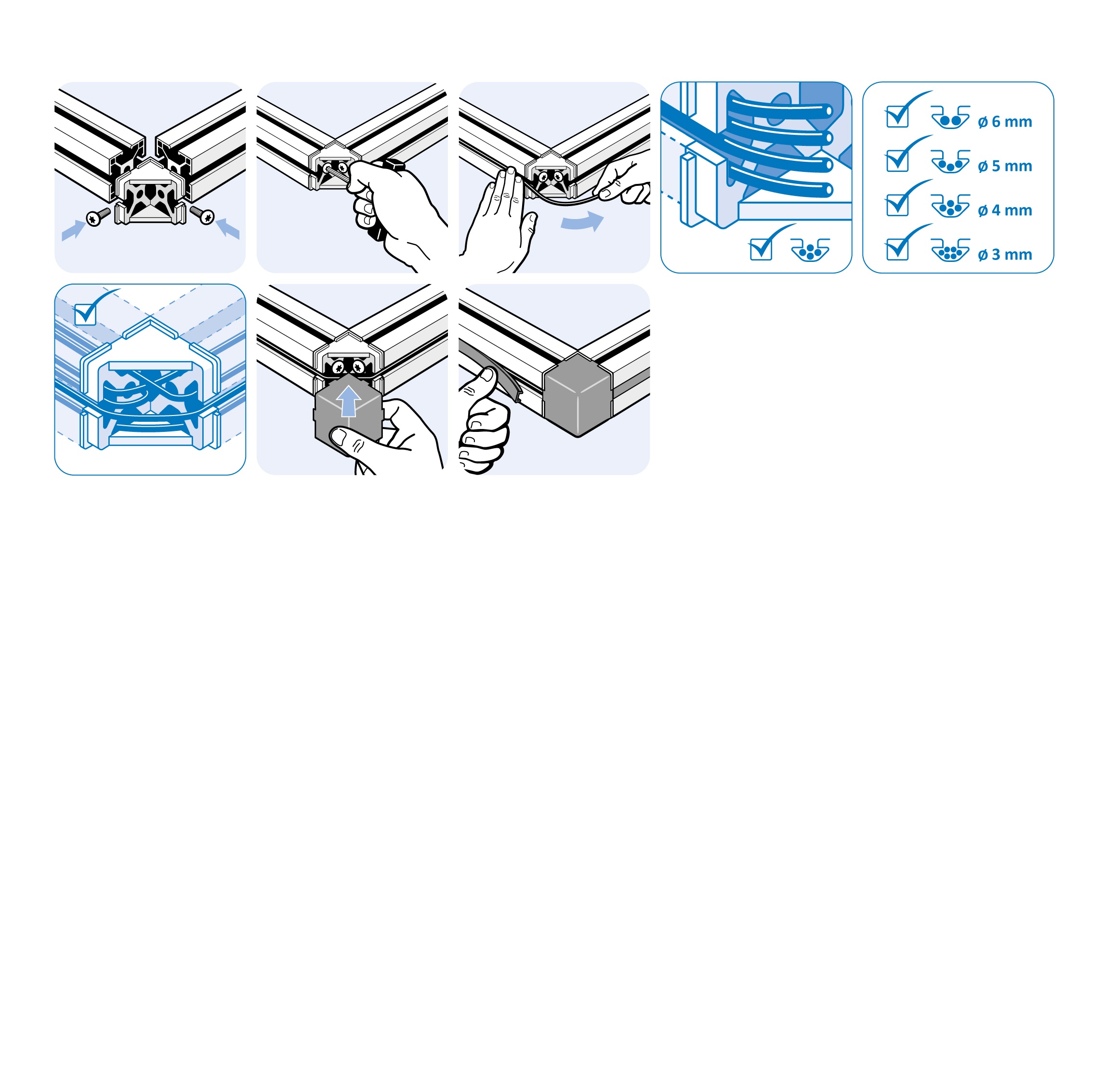

The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter:
Max. 6 cabels with an outer diameter of 3 mm
Max. 4 cabels with an outer diameter of 4 mm
Max. 3 cabels with an outer diameter of 5 mm
Max. 2 cabels with an outer diameter of 6 mm

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Zinc die-cast, profile 40
Pack Quantity: 1 set
Weight (g): 115.0
