CORNER CONNECTORS WITH CABLE PASSAGE (SET)
Patented: FATH Corner Connectors with Cable Passage – route cabling safely through profile connections
An innovation from the FATH LAB: The patented corner connections for aluminum profiles enable orderly and secure cable routing directly through the profile connection. The FATH Corner Connectors with Cable Passage are designed to allow delicate cables to pass through the inside of the connectors. With this clever component, you can implement a power supply directly in the slot.
FATH Corner Connectors with Cable Passage are made of high-strength zinc alloy. They are available for aluminum profile 40 / slot 8 and aluminum profile 45 / slot 10, for 2D and 3D profile designs.
Matching gray plastic cover caps are included with all versions of the FATH Corner Connector with Cable Passage 2D and 3D. Simply place it on the connector, press it in place – done! This means that your profile constructions with power supply are also protected against cable chaos and damage from external influences. The assembly kit is also included in the scope of delivery.
HIGHLIGHTS
- Orderly cable routing directly through the corner connection
- Available for 2D and 3D profile structures
- Up to six cables can be fed through
- Cover cap and assembly kit included
Recesses for up to six cables

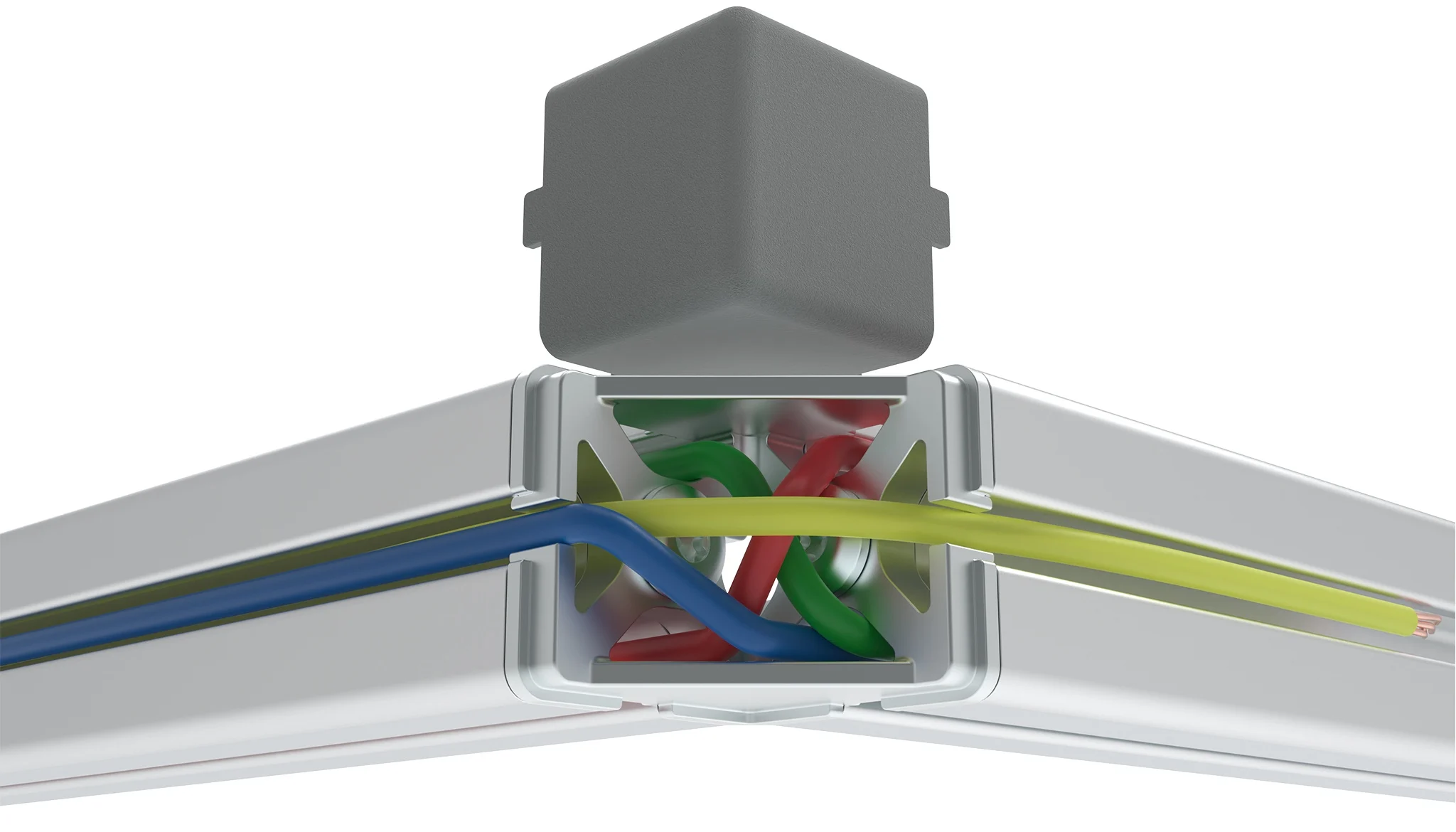

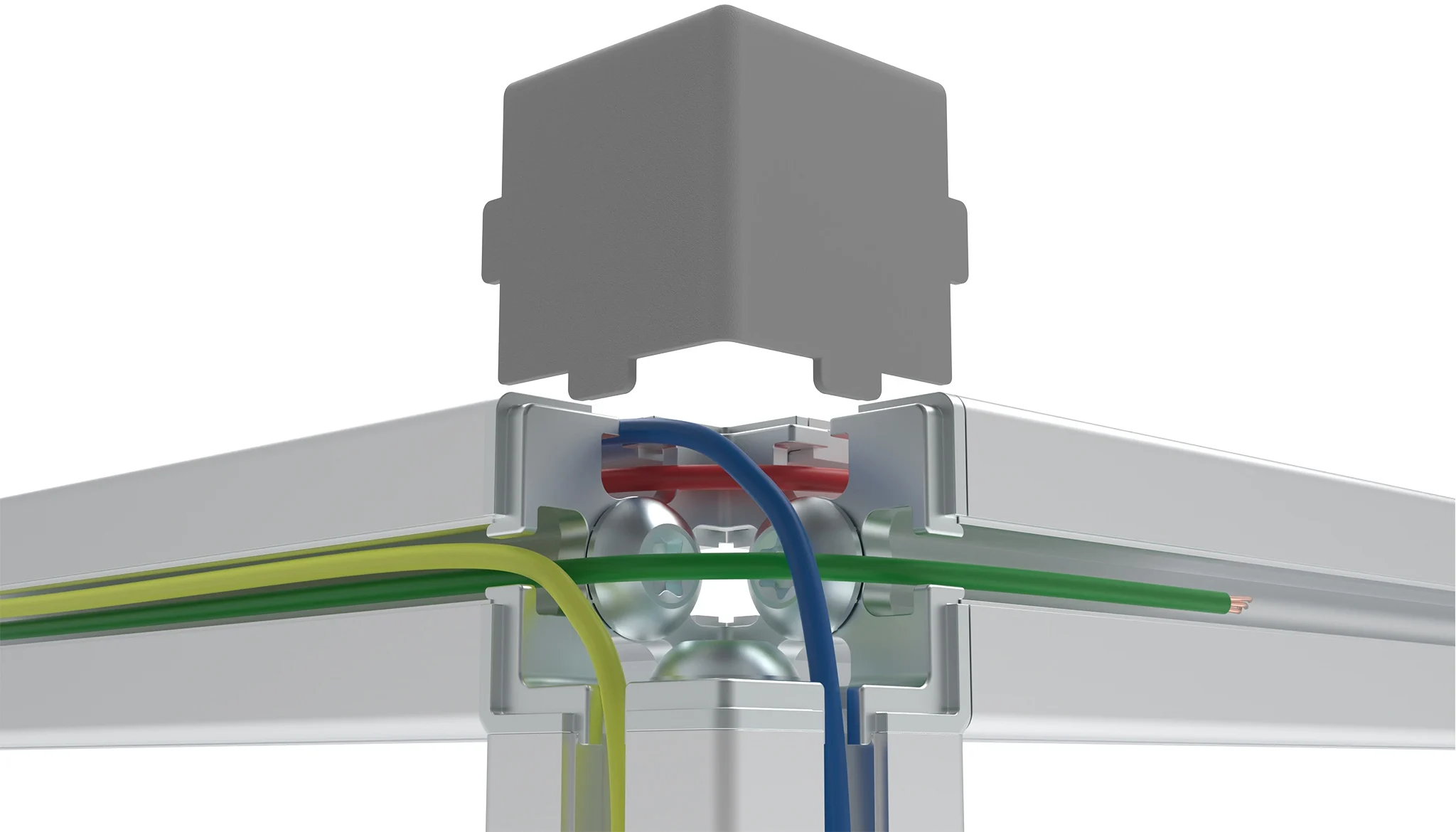

FATH Corner Connectors come with tapers and larger recesses underneath. Simply insert the cable into the recess through the taper, pull it through the connector and route it into the other levels of the aluminum profile structure. The FATH Corner Connector with Cable Passage for profile 40 / slot 8 offers room for at least four cables each with a maximum of 5 mm diameter. Up to four cables with a maximum diameter of 6 mm can be tucked away In the version for profile 45 / slot 10.
ARE YOU ALSO LOOKING FOR COVER PROFILES FOR OPTICAL FINISHING?
Here you will find all the options for different profile types, T-slot sizes, in many colors and also ESD variants.
Versions

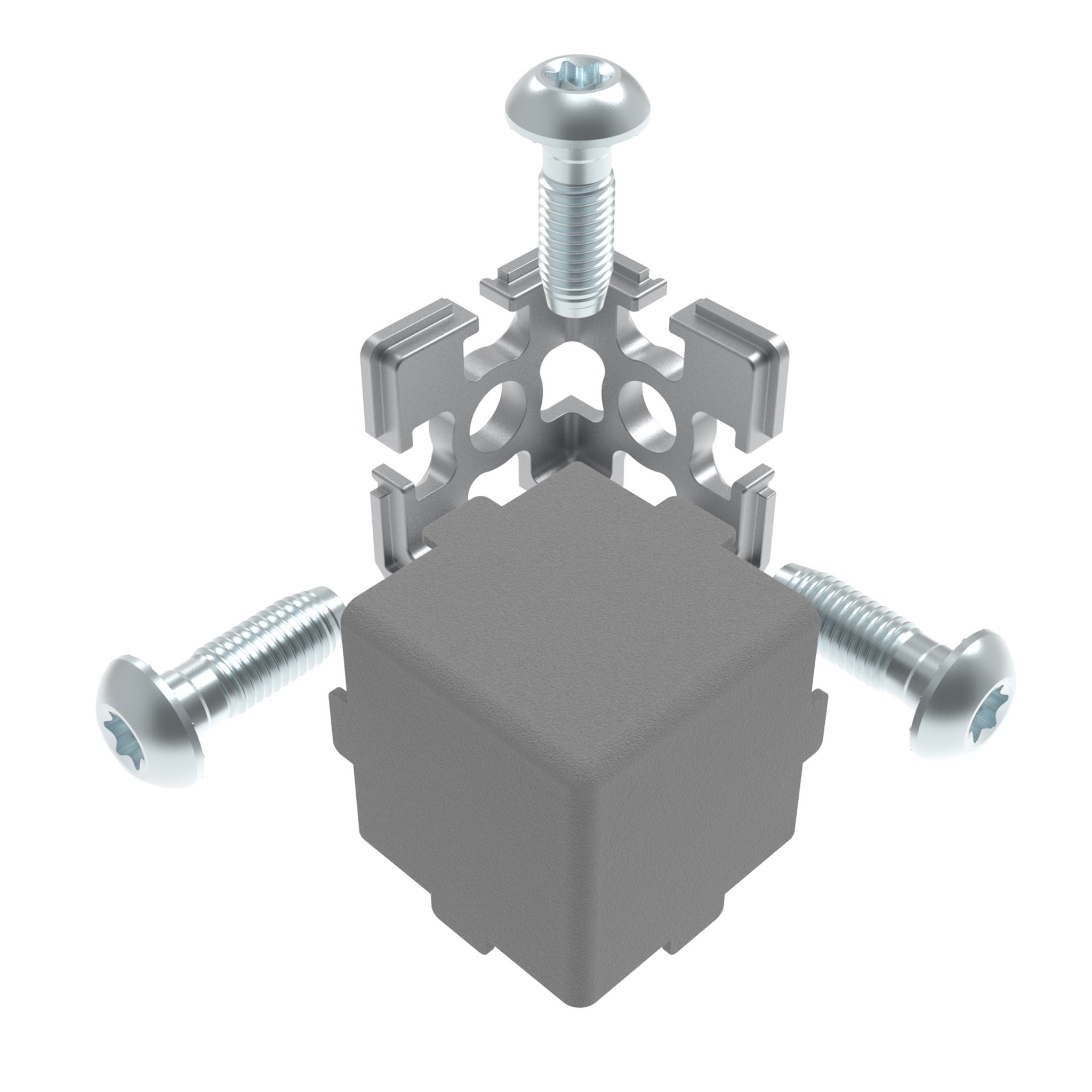

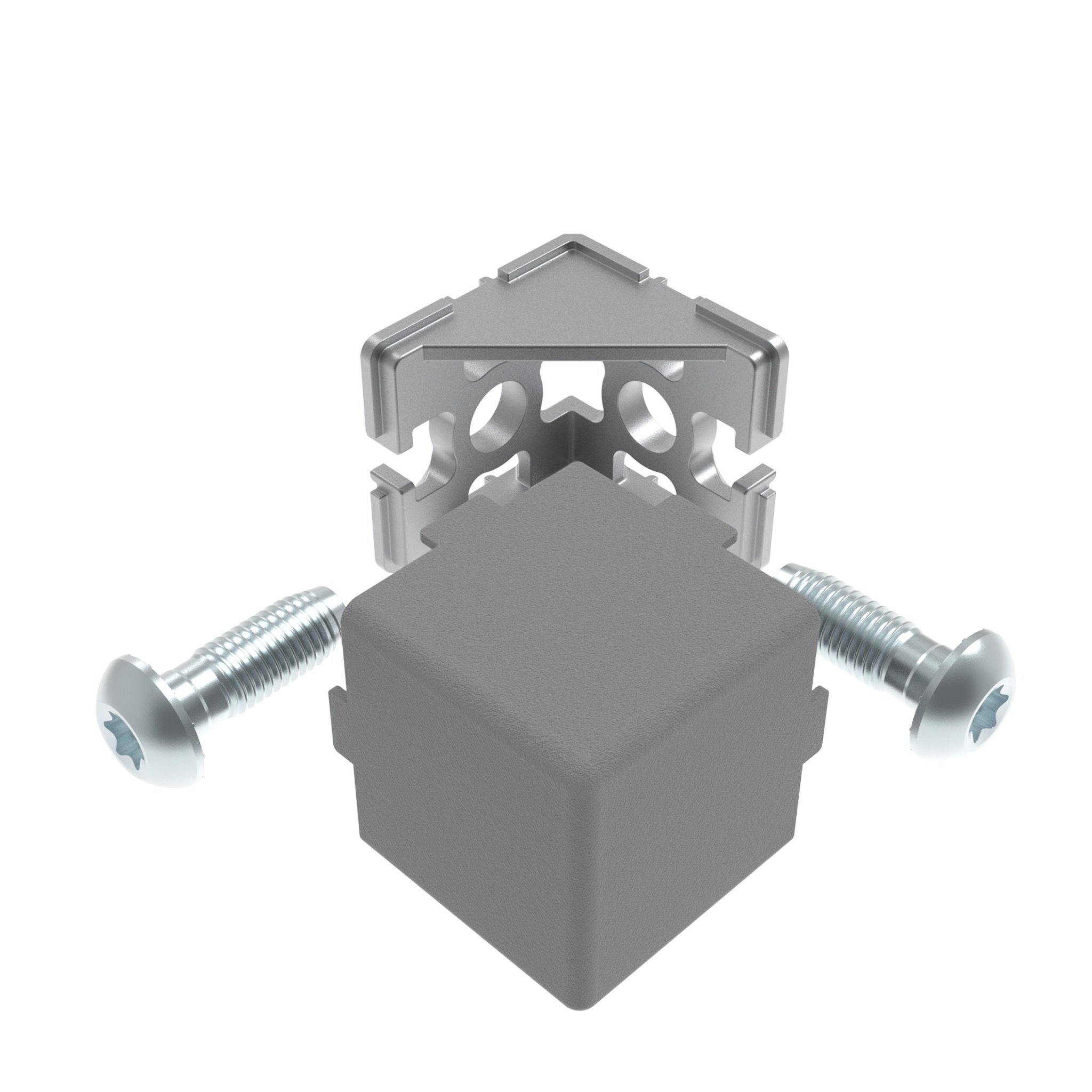

FATH Corner Connector with 2D Cable Passage
Connection for right-angled two-dimensional profile structures.

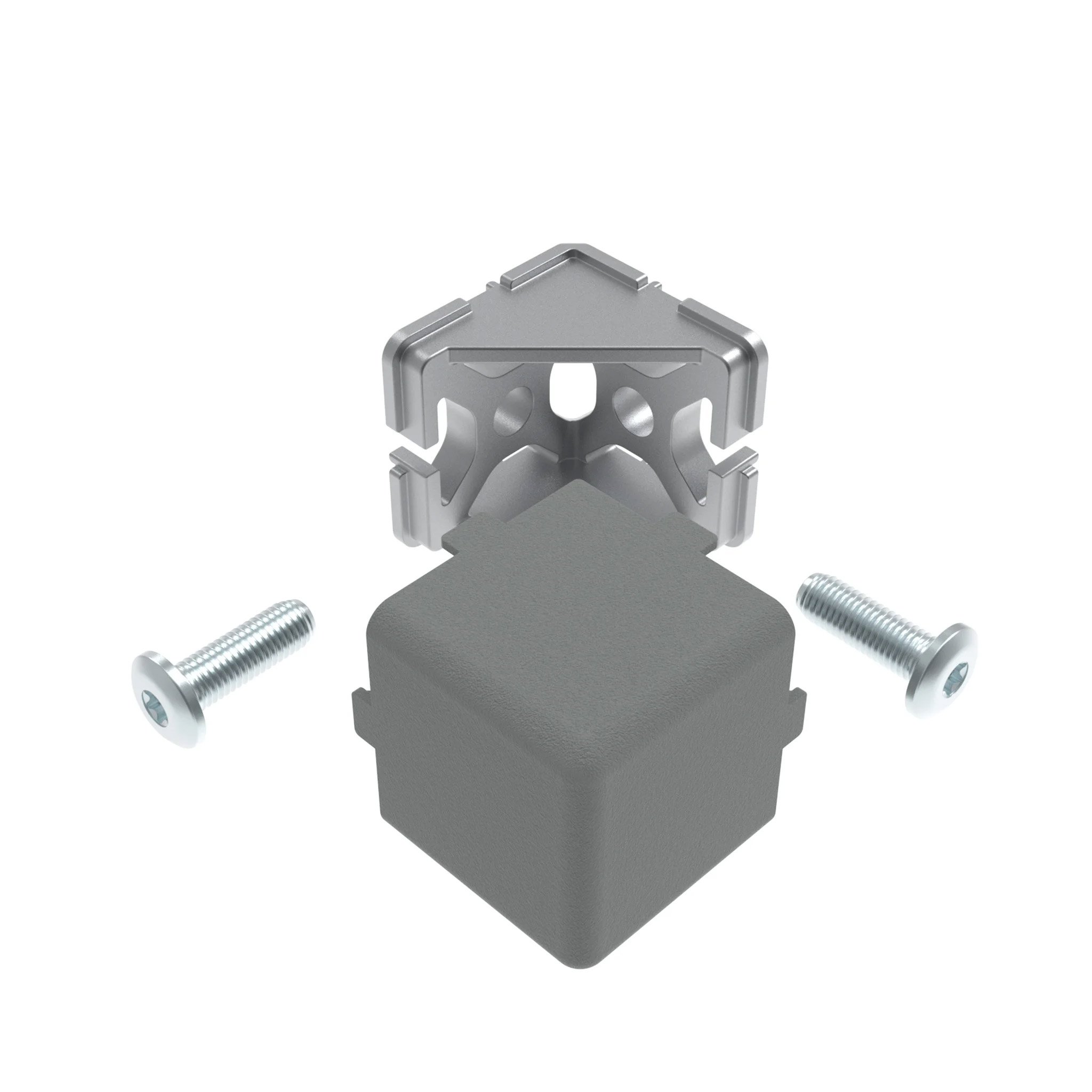

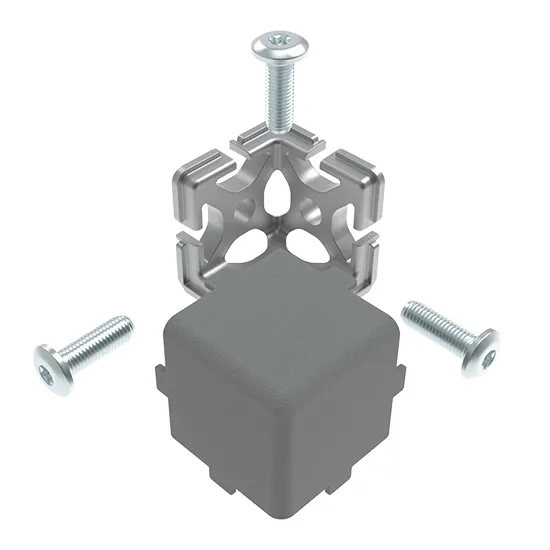

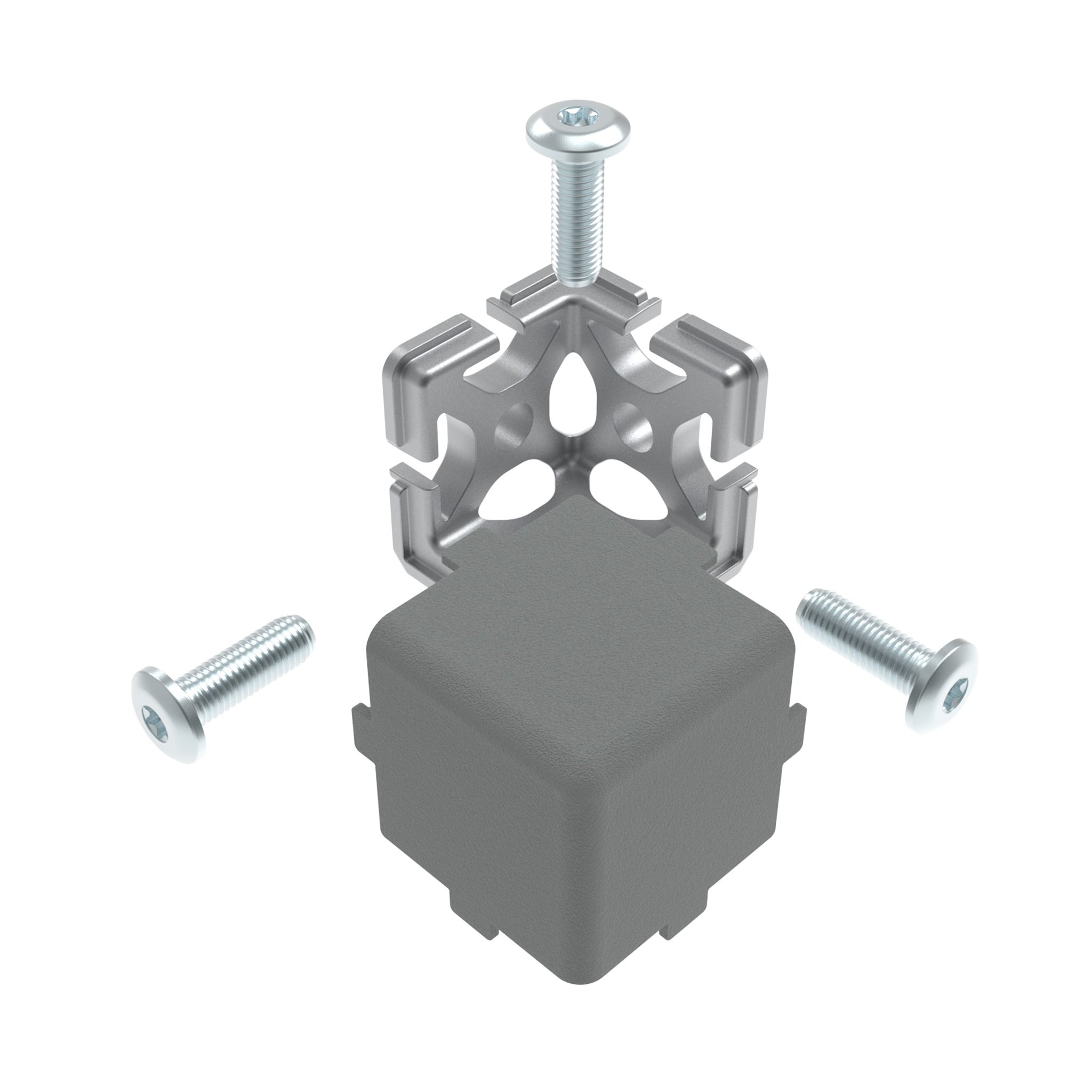

FATH Corner Connector with 3D Cable Passage
Connection for rectangular three-dimensional profile structures.
Color:Cover cap: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To connect three aluminum profiles at right angles, with opening in slot geometry for passage of cables; With cover cap to cover the open side of the corner connectorMaterial:Corner connector: Zinc die-cast Cover cap: Plastic PA, glass ball reinforced Self forming screw: SteelSet:1 corner connector 40, 3D with cable passage 1 cover cap 3 self forming screws - S7 x 22Specials:Other materials, other surfaces, other colors on requestSurface:Corner connector: Zinc plated Self forming screw: Zinc platedTip:The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter: Max. 6 cabels with an outer diameter of 3 mm Max. 4 cabels with an outer diameter of 4 mm Max. 3 cabels with an outer diameter of 5 mm Max. 2 cabels with an outer diameter of 6 mm
Color:Cover cap: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles, with opening in slot geometry for passage of cables; With cover cap to cover the open side of the corner connectorMaterial:Corner connector: Zinc die-cast Cover cap: Plastic PA, glass ball reinforced Self forming screw: SteelSet:1 corner connector 40, 2D with cable passage 1 cover cap 2 self forming screws - S7 x 22Specials:Other materials, other surfaces, other colors on requestSurface:Corner connector: Zinc plated Self forming screw: Zinc platedTip:The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter: Max. 6 cabels with an outer diameter of 3 mm Max. 4 cabels with an outer diameter of 4 mm Max. 3 cabels with an outer diameter of 5 mm Max. 2 cabels with an outer diameter of 6 mm
Color:Cover cap: gray ≈ RAL 7004Delivery Countries:WorldwideDescription:To connect three aluminum profiles at right angles, with opening in slot geometry for passage of cables; With cover cap to cover the open side of the corner connectorMaterial:Corner connector: Zinc die-cast Cover cap: Plastic PA, glass ball reinforced Self forming screw: SteelSet:1 corner connector 45, 3D with cable passage 1 cover cap 3 self forming screws - S12 x 30Specials:Other materials, other surfaces, other colors on requestSurface:Corner connector: Zinc plated Self forming screw: Zinc platedTip:The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter: Max. 6 cabels with an outer diameter of 3 mm Max. 4 cabels with an outer diameter of 4 mm Max. 3 cabels with an outer diameter of 5 mm Max. 2 cabels with an outer diameter of 6 mm
Color:Cover cap: gray ≈ RAL 7004Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles, with opening in slot geometry for passage of cables; With cover cap to cover the open side of the corner connectorMaterial:Corner connector: Zinc die-cast Cover cap: Plastic PA, glass ball reinforced Self forming screw: SteelSet:1 corner connector 45, 2D with cable passage 1 cover cap 2 self forming screws - S12 x 30Specials:Other materials, other surfaces, other colors on requestSurface:Corner connector: Zinc plated Self forming screw: Zinc platedTip:The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter: Max. 6 cabels with an outer diameter of 3 mm Max. 4 cabels with an outer diameter of 4 mm Max. 3 cabels with an outer diameter of 5 mm Max. 2 cabels with an outer diameter of 6 mm
