Corner Connector 40, 3D with Cable Passage (Set)
Part #:
093WC407N08VS01
Product information "Corner Connector 40, 3D with Cable Passage (Set)"
Color:
Cover cap: Gray ≈ RAL 7042
Delivery Countries:
Worldwide
Description:

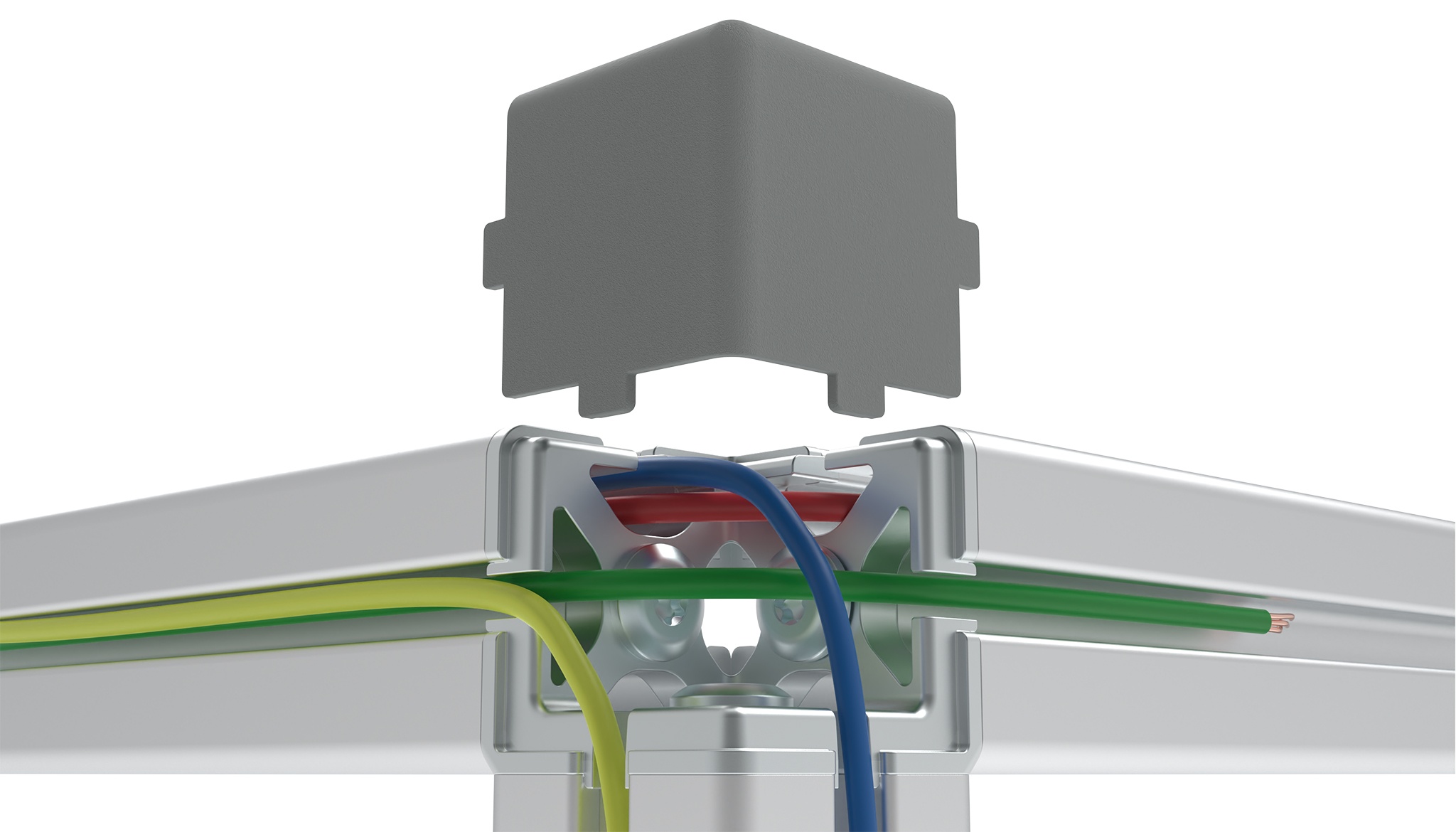

To connect three aluminum profiles at right angles, with opening in slot geometry for passage of cables;
With cover cap to cover the open side of the corner connector
Material:
Corner connector: Zinc die-cast
Cover cap: Plastic PA, glass ball reinforced
Self forming screw: Steel

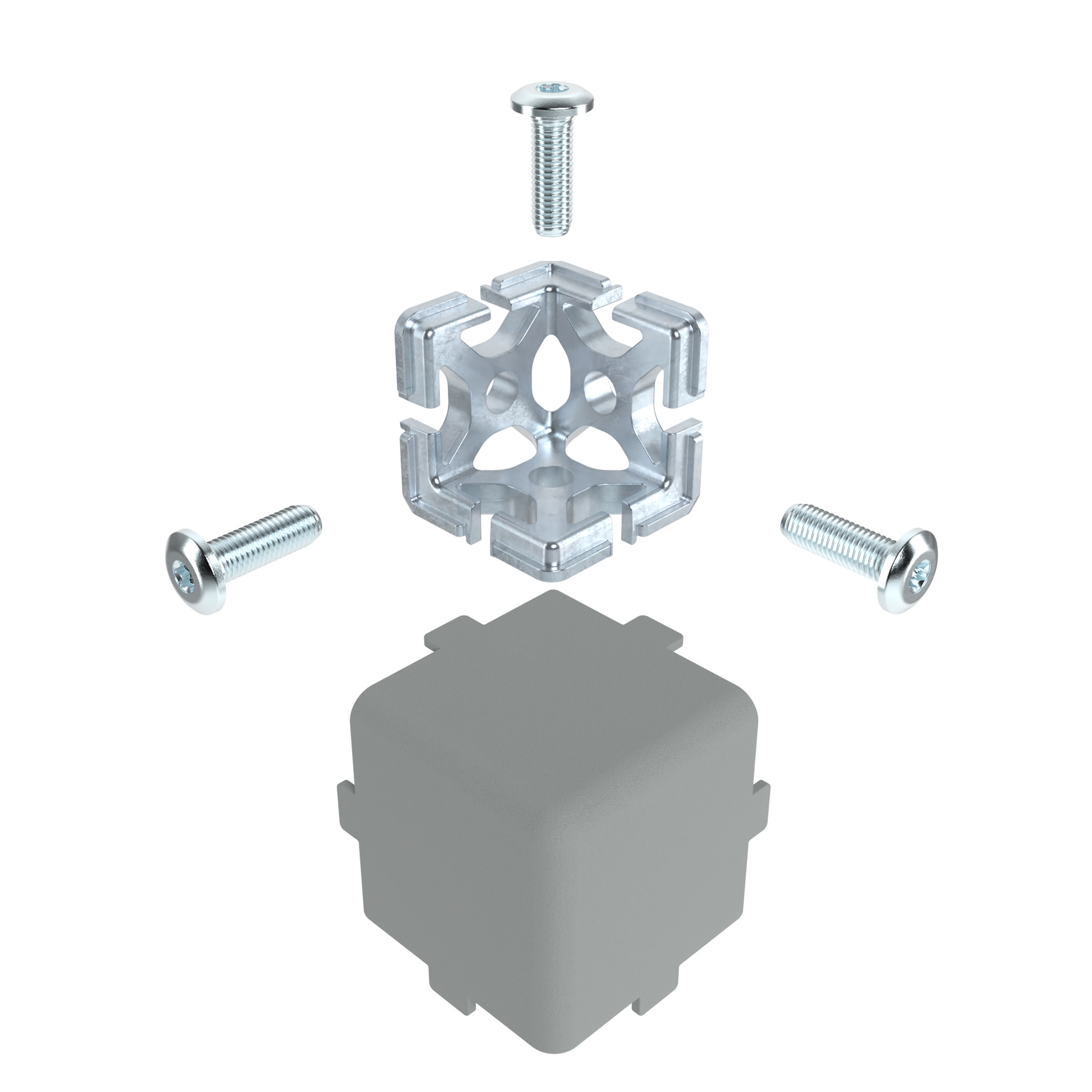

Set:
1 corner connector 40, 3D with cable passage
1 cover cap
3 self forming screws - S7 x 22
Specials:
Other materials, other surfaces, other colors on request
Surface:
Corner connector: Zinc plated
Self forming screw: Zinc plated
Tip:

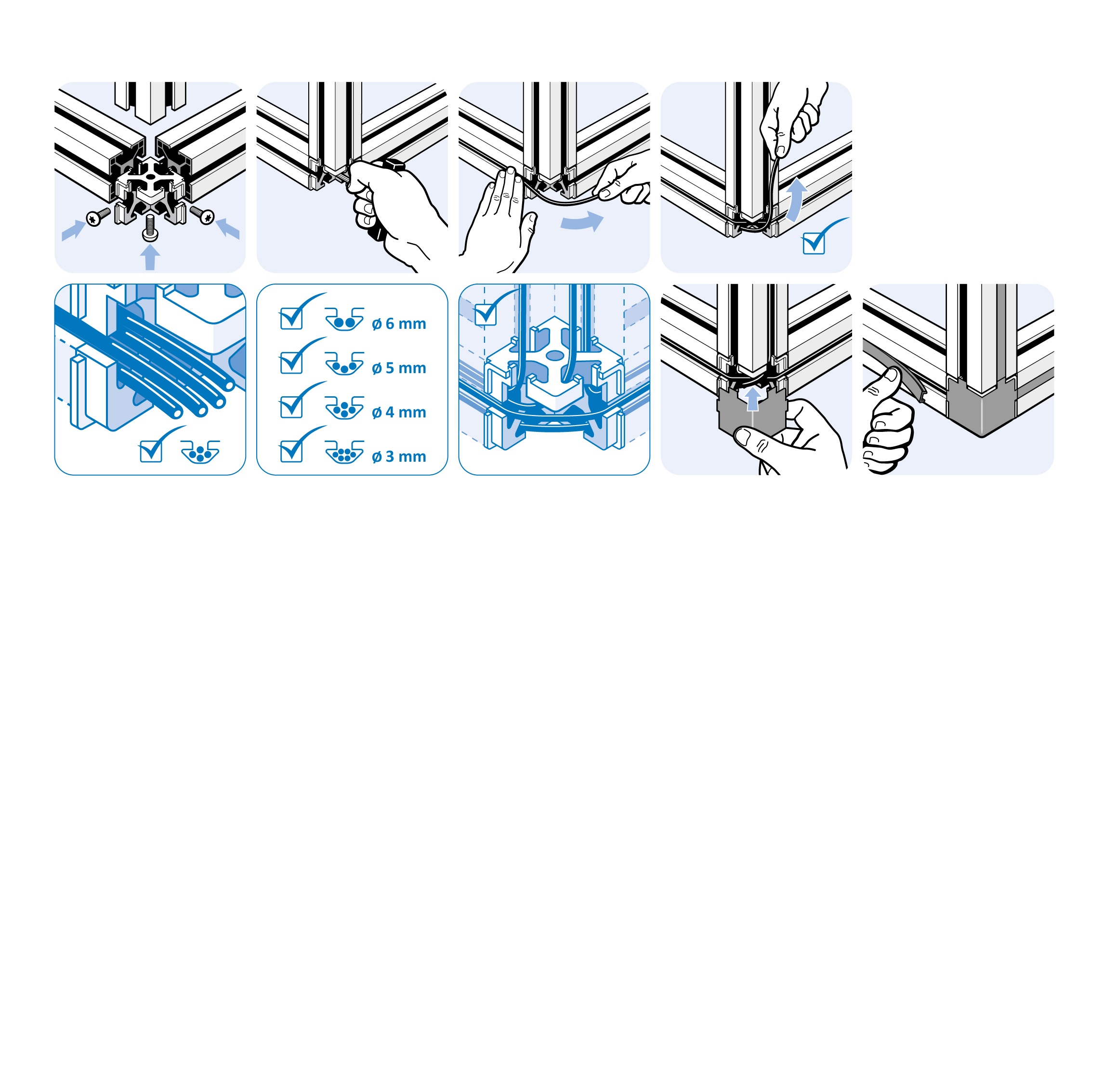

The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter:
Max. 6 cabels with an outer diameter of 3 mm
Max. 4 cabels with an outer diameter of 4 mm
Max. 3 cabels with an outer diameter of 5 mm
Max. 2 cabels with an outer diameter of 6 mm
Cover cap: Gray ≈ RAL 7042
Delivery Countries:
Worldwide
Description:
To connect three aluminum profiles at right angles, with opening in slot geometry for passage of cables;
With cover cap to cover the open side of the corner connector
Material:
Corner connector: Zinc die-cast
Cover cap: Plastic PA, glass ball reinforced
Self forming screw: Steel
Set:
1 corner connector 40, 3D with cable passage
1 cover cap
3 self forming screws - S7 x 22
Specials:
Other materials, other surfaces, other colors on request
Surface:
Corner connector: Zinc plated
Self forming screw: Zinc plated
Tip:
The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter:
Max. 6 cabels with an outer diameter of 3 mm
Max. 4 cabels with an outer diameter of 4 mm
Max. 3 cabels with an outer diameter of 5 mm
Max. 2 cabels with an outer diameter of 6 mm
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Customs Tariff Number Export: | 79070000 |
| Model: | Zinc die-cast, profile 40 |
| Pack Quantity: | 1 set |
| Weight (g): | 121.5 |
| Zolltarifnummer: | 79070000900 |
| pA Number: | 152465 |
