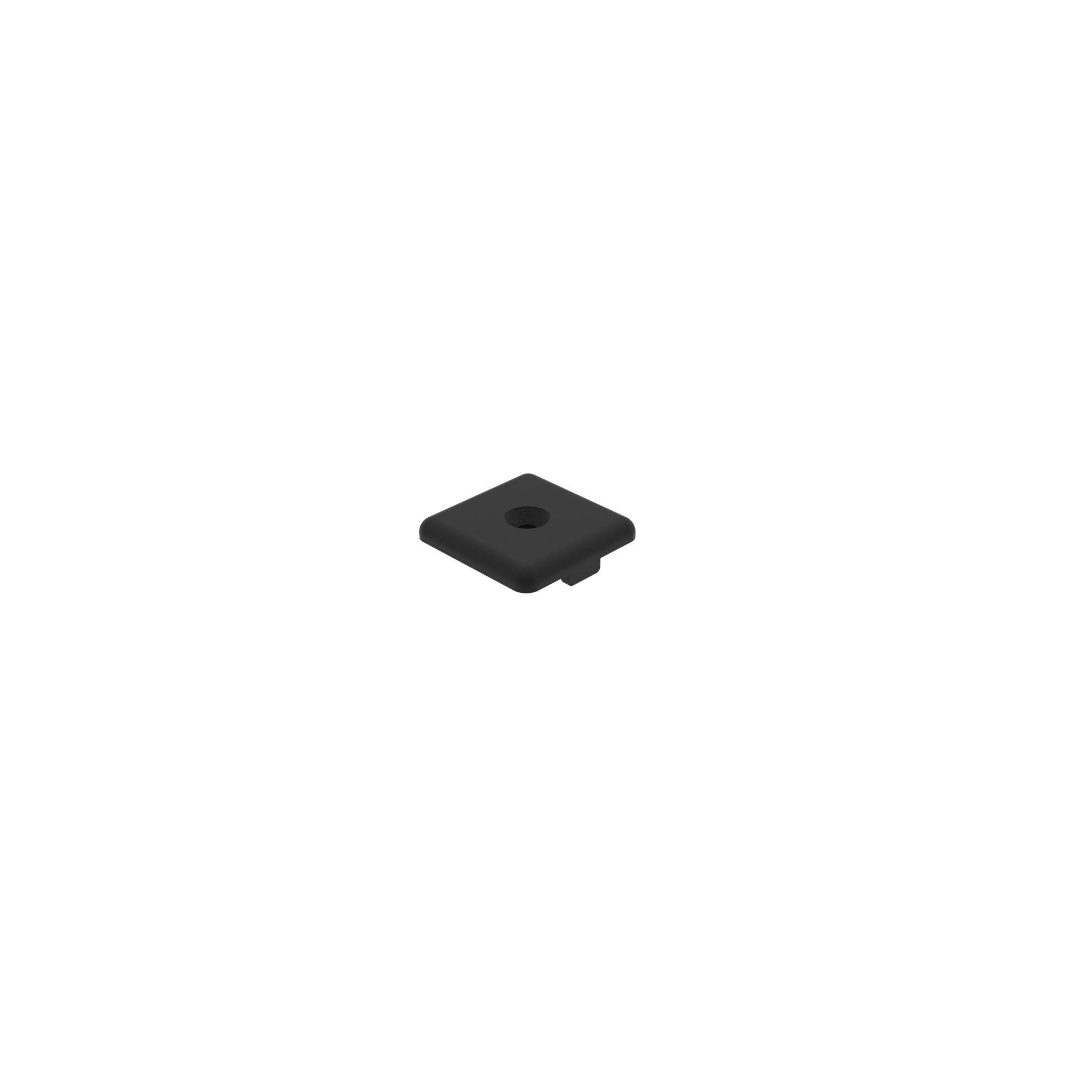

Cover Cap Fixable

Description:

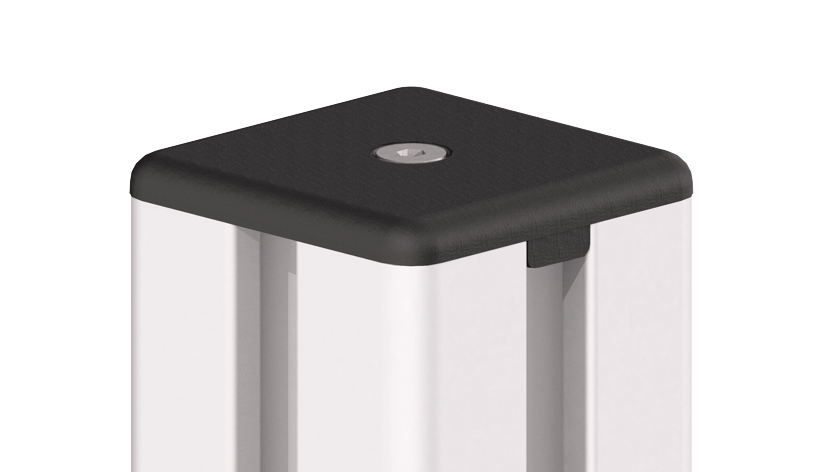

Screw-on cover cap for the end of the aluminum profile

Material:
Plastic PA, glass fiber reinforced

Color:
Black

Fastening:
With screw DIN EN ISO 10642 (DIN 7991) - M4 x 16

Tip:
Compatible screw see 4DIN7991M0416M

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Delivery Countries:
Worldwide

Pack Quantity:	100 pieces
Model:	Plastic PA
Weight (g):	3.5
ERP Number:	100058

Variants

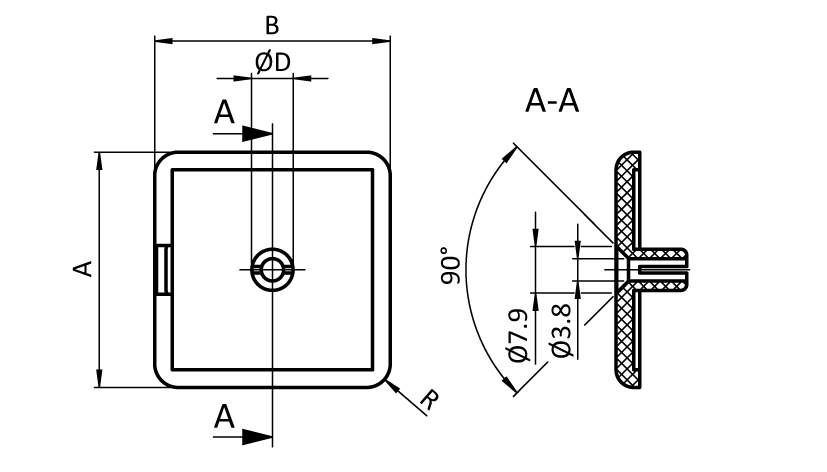

Part #	D (mm)	Feature	R (mm)	Screw	T (mm)	Dimensions A x B (mm)	Pack Quantity
091065	7.0	1 pin for core hole	3.0	1 screw	4.0	30 x 30	100 pieces
091066	7.0	2 Pins for core hole	3.0	2 screws	4.0	30 x 60	100 pieces
091067	7.0	1 pin for core hole	4.0	1 screw	4.0	40 x 40	100 pieces
091068	7.0	2 Pins for core hole	4.0	2 screws	4.0	40 x 80	50 pieces
091070	10.5	1 pin for core hole	3.0	1 screw	4.0	45 x 45	100 pieces
091073	10.4	2 Pins for core hole	3.0	2 screws	4.0	45 x 90	10 pieces
091071	10.5	1 pin for core hole	3.0	1 screw	4.0	60 x 60	50 pieces
091069	7.0	4 pins for core hole	4.0	4 screws	4.0	80 x 80	10 pieces
091074	10.4	4 pins for core hole	3.0	4 screws	4.0	90 x 90	10 pieces

Classifications

ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360192
ECLASS 12.0: 23360192
ECLASS 13.0: 23360192
Zolltarifnummer: 39269097900
Customs Tariff Number Export: 39269097

Certificates

Tags

Profile Type	Profile Type B, Profile Type I
Profile Form	T-slot Profiles

Matching accessories

Screw for Cover Cap Fixable

M: M4 x 16

Description:To fasten screw-on cover caps for the end of the aluminum profileMaterial:SteelSurface:Zinc platedTip:Compatible cover caps screw-on type see 091065Delivery Countries:Worldwide
