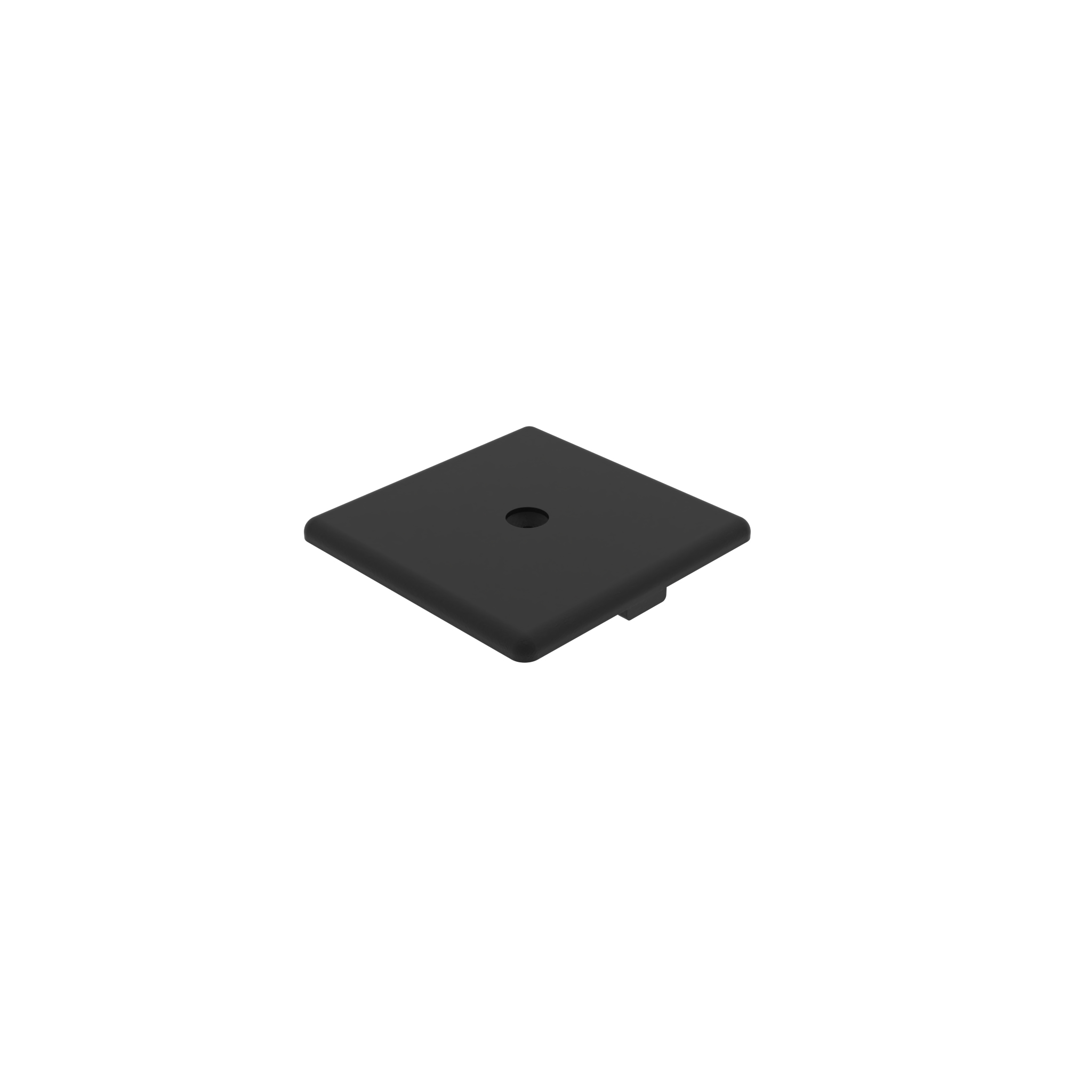

Cover Cap Fixable

Product information "Cover Cap Fixable"

Color:
Black

Delivery Countries:
Worldwide

Description:

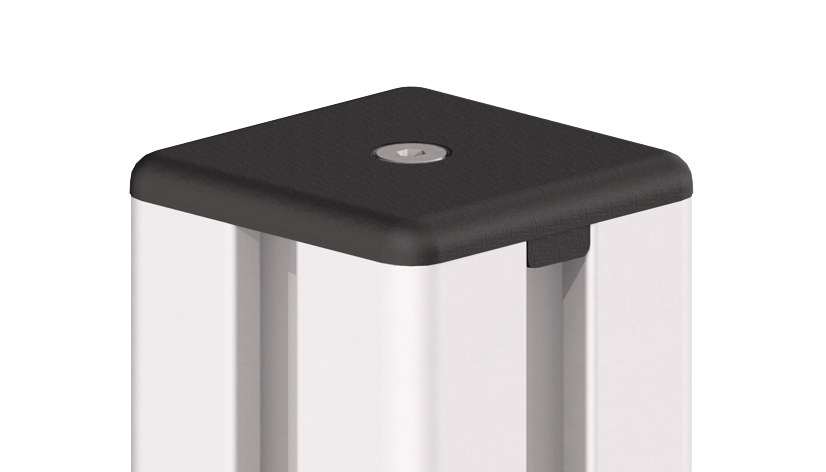

Screw-on cover cap for the end of the aluminum profile

Material:
Plastic PA, glass fiber reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Tip:
Compatible screw see 4DIN7991M0416M

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360192
(ECLASS 12.0): 23360192
(ECLASS 13.0): 23360192
Fastening: With screw DIN EN ISO 10642 (DIN 7991) - M4 x 16
Model: Plastic PA
Pack Quantity: 10 / 50 / 100 pieces
Pack Quantity (1): 50
Pack Quantity (Stück): 50
Weight (g): 15.0

Variants

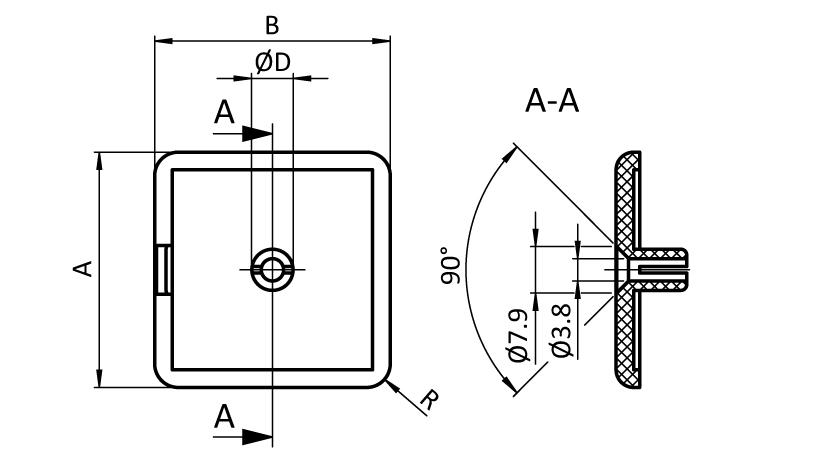

Product ID R (mm) T (mm) Feature Screw D (mm) Dimensions A x B (mm)
091065 3.0 4.0 1 pin for core hole 1 screw 7.0 30 x 30
091066 3.0 4.0 2 Pins for core hole 2 screws 7.0 30 x 60
091067 4.0 4.0 1 pin for core hole 1 screw 7.0 40 x 40
091068 4.0 4.0 2 Pins for core hole 2 screws 7.0 40 x 80
091069 4.0 4.0 4 pins for core hole 4 screws 7.0 80 x 80
091070 3.0 4.0 1 pin for core hole 1 screw 10.5 45 x 45
091071 3.0 4.0 1 pin for core hole 1 screw 10.5 60 x 60
091073 3.0 4.0 2 Pins for core hole 2 screws 10.4 45 x 90
091074 3.0 4.0 4 pins for core hole 4 screws 10.4 90 x 90
