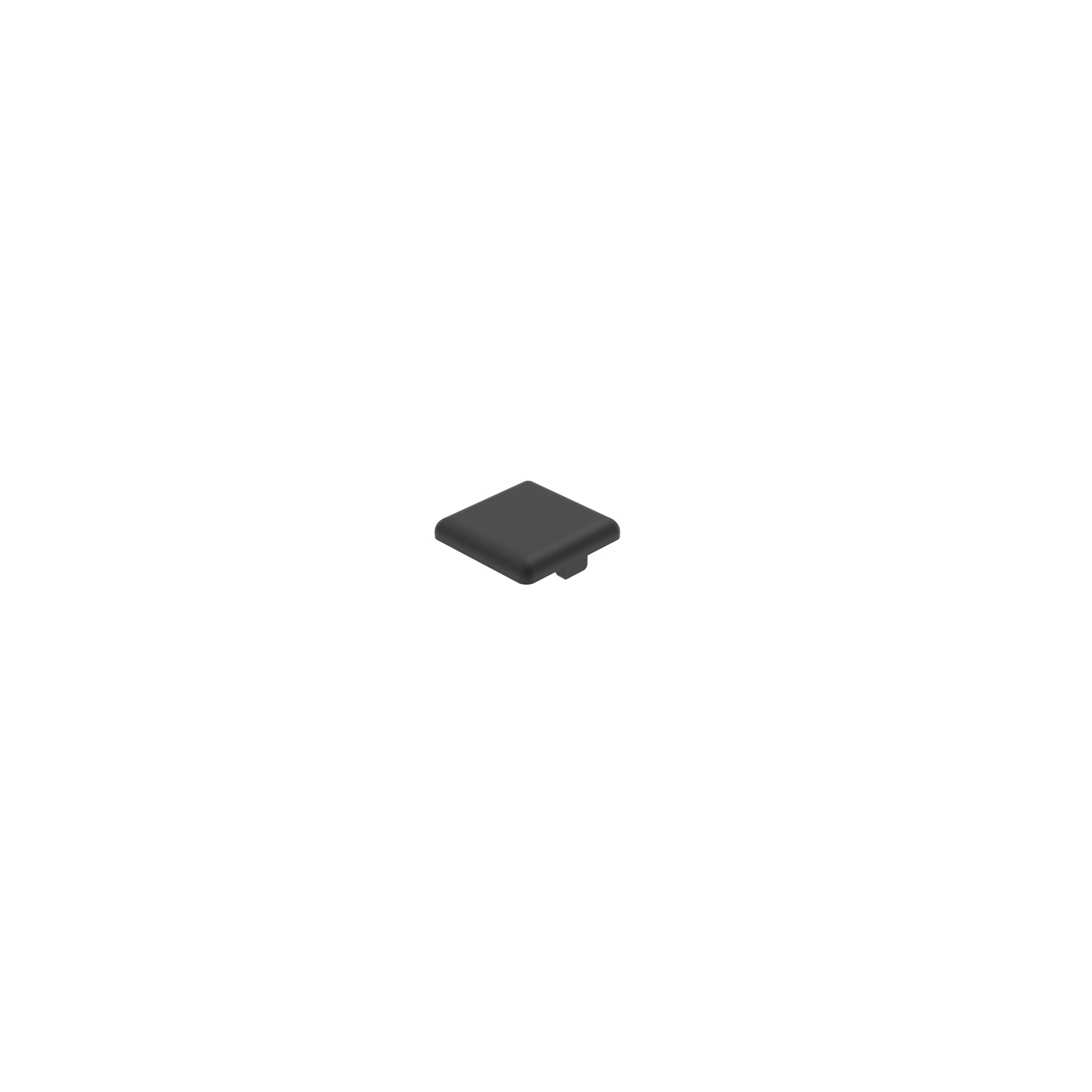

Cover Cap for 25.4 mm - 1" Modular Dimension

Product information "Cover Cap for 25.4 mm - 1" Modular Dimension"

Color:
Black

Delivery Countries:
Worldwide / North America

Description:
To cover the end of the profile

Material:
Plastic PA, glass fiber reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors on request
Pack Quantity: 100 pieces
Model: 25.4 mm - 1" modular dimension
Weight (g): 2.9
ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360192
ECLASS 12.0: 23360192
ECLASS 13.0: 23360192
Zolltarifnummer: 39269097900
Customs Tariff Number Export: 39269097
ERP Number: 100163

Variants

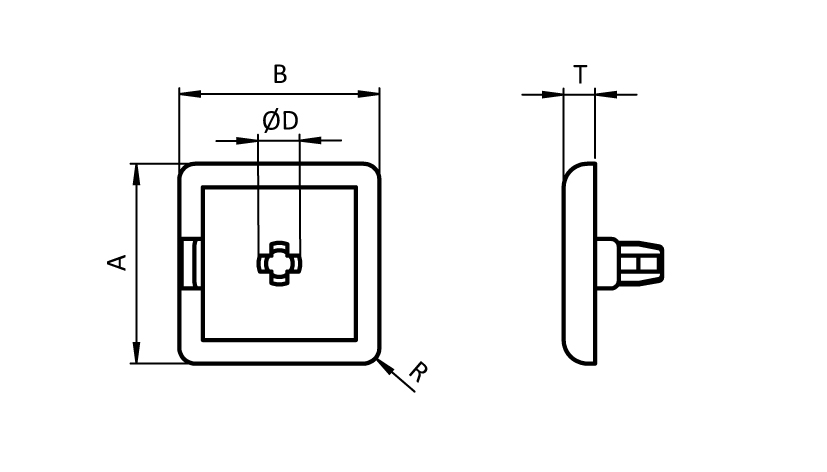

Part # Feature Fig. ØD (mm) R (mm) T (mm) Dimensions A x B (mm)
091174 1 cross 5.3 2.0 4.0 25,4 x 25,4 - (1" x 1")
091232 1 cross 5.2 2.0 4.0 25,4 x 25,4 - (1" x 1")
091233 2 crosses 5.0 2.0 4.0 25,4 x 50,8 - (1" x 2")
091234 2 crosses 5.1 2.0 4.0 25,4 x 76 (1" x 3")
091235 4 crosses 5.15 2.0 4.0 50.8 (2") x 50.8 (2")

CAD Downloads

Certificates
