Cover Cap for 25.4 mm - 1" Modular Dimension

Product information "Cover Cap for 25.4 mm - 1" Modular Dimension"

Color:
Black

Delivery Countries:
Worldwide / North America

Description:

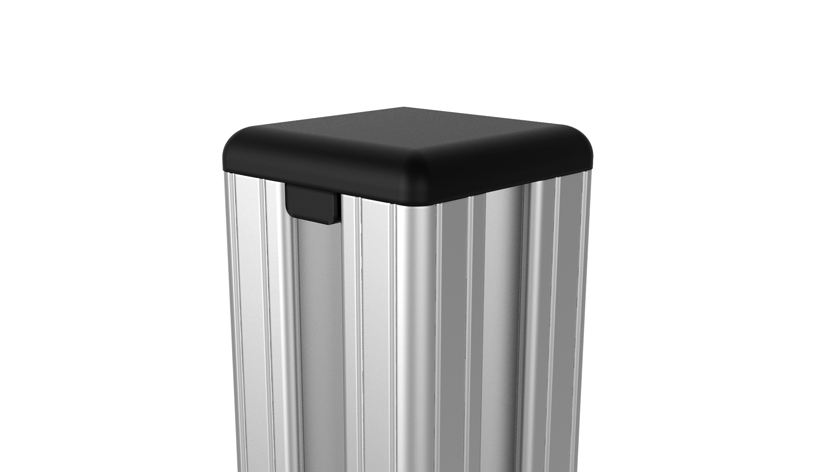

To cover the end of the profile

Material:
Plastic PA, glass fiber reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Pack Quantity:	100 pieces
Model:	25.4 mm - 1" modular dimension
Weight (g):	11.0
ERP Number:	100217

Variants

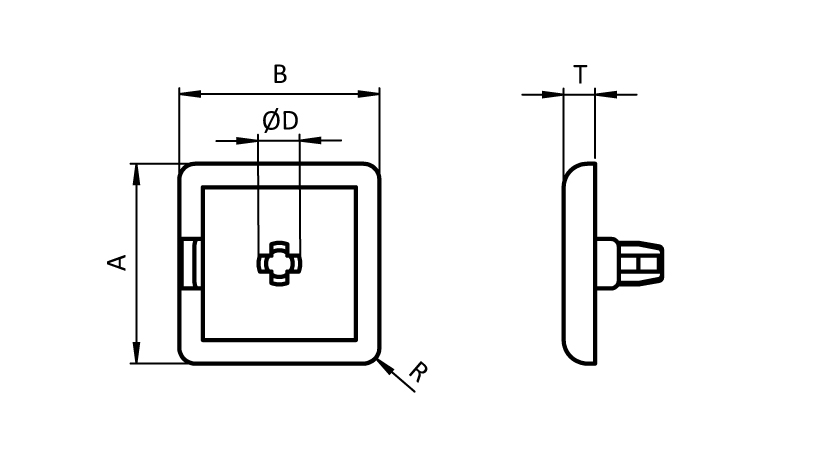

Part #	Feature	Fig.	ØD (mm)	R (mm)	T (mm)	Dimensions A x B (mm)
091174	1 cross	①	5.3	2.0	4.0	25,4 x 25,4 - (1" x 1")
091232	1 cross	①	5.2	2.0	4.0	25,4 x 25,4 - (1" x 1")
091233	2 crosses	②	5.0	2.0	4.0	25,4 x 50,8 - (1" x 2")
091234	2 crosses	②	5.1	2.0	4.0	25,4 x 76 (1" x 3")
091235	4 crosses	①	5.15	2.0	4.0	50.8 (2") x 50.8 (2")
