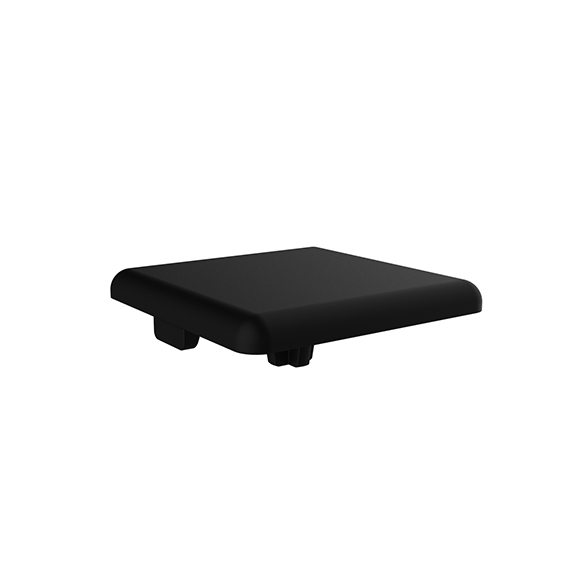

Cover Cap for 38 mm - 1.5" Modular Dimension

Product information "Cover Cap for 38 mm - 1.5" Modular Dimension"

Color:
Black

Delivery Countries:
Worldwide / North America

Description:

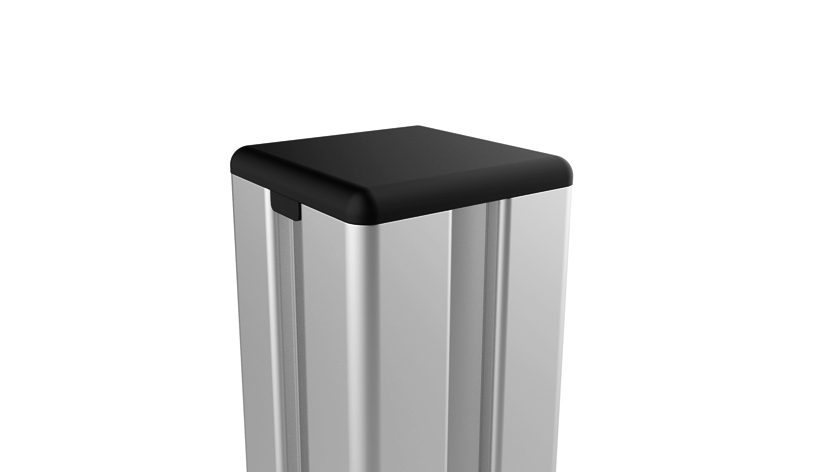

To cover the end of the profile

Material:
Plastic PA, glass fiber reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Pack Quantity:	100 pieces
Model:	38 mm - 1.5" modular dimension
Weight (g):	13.3
ECLASS 6.0:	23369290
ECLASS 7.0:	23369290
ECLASS 8.0:	23369290
ECLASS 9.0:	23369290
ECLASS 10.0:	23369290
ECLASS 11.0:	23360192
ECLASS 12.0:	23360192
ECLASS 13.0:	23360192
Zolltarifnummer:	39269097900
Customs Tariff Number Export:	39269097
ERP Number:	100071

Variants

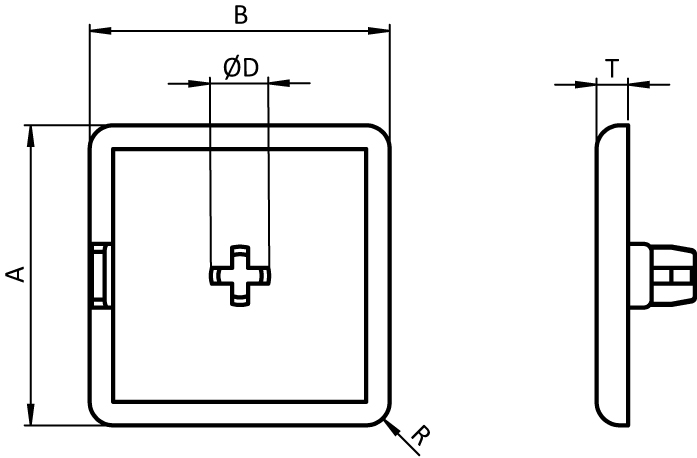

Part #	Feature	Fig.	ØD (mm)	R (mm)	T (mm)	Dimensions A x B (mm)	Pack Quantity
091079	1 cross	①	7.4	3.0	4.0	38.1 x 38.1 - 1.5" x 1.5"	100 pieces
091080	2 crosses	③	7.2	3.0	4.0	38.1 x 76.2 - 1.5" x 3."	100 pieces
091100	4 crosses	①	7.3	3.0	4.0	76 x 76 (3" x 3")	10 pieces
091226	2 crosses off center	③	6.8	3.0	4.0	38.1 x 19 - 1.5" x 3/4"	100 pieces
091227	1 cross	①	7.0	3.0	4.0	38.1 x 38.1 - 1.5" x 1.5"	100 pieces
091228	1 cross	④	7.0	3.0	4.0	38.1 x 38.1 - 1.5" x 1.5" R38 - 90°	100 pieces
091229	1 cross	②	6.8	3.0	4.0	38.1 x 38.1 - 1.5" x 1.5" - 45°	100 pieces
091231	4 crosses	①	7.0	3.0	4.0	76 x 76 (3" x 3")	10 pieces
