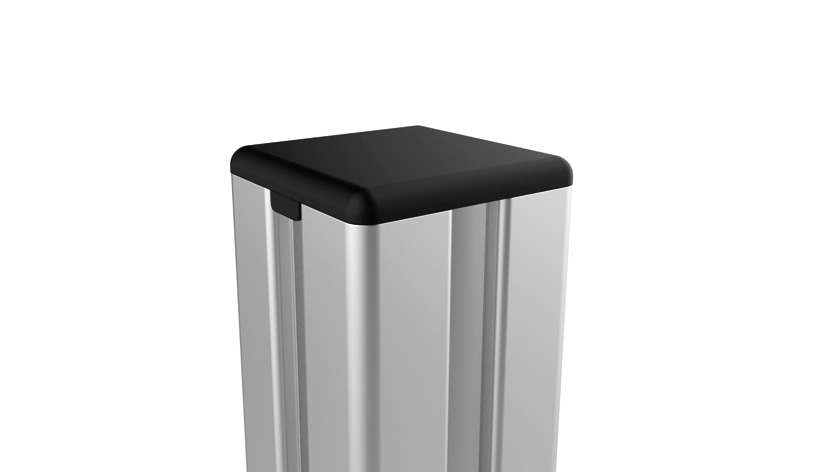

Cover Cap for 38 mm - 1.5" Modular Dimension

Product information "Cover Cap for 38 mm - 1.5" Modular Dimension"

Color:
Black

Delivery Countries:
Worldwide

Description:
To cover the end of the profile

Material:
Plastic PA, glass fiber reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Zolltarifnummer:
39269097900

(ECLASS 6.0):	23369290
(ECLASS 7.0):	23369290
(ECLASS 8.0):	23369290
(ECLASS 9.0):	23369290
(ECLASS 10.0):	23369290
(ECLASS 11.0):	23360192
(ECLASS 12.0):	23360192
(ECLASS 13.0):	23360192
Model:	38 mm - 1.5" modular dimension
Pack Quantity:	100 pieces
Pack Quantity (1):	100
Weight (g):	3.0

Variants

Product ID	R (mm)	T (mm)	Feature	Dimensions A x B (mm)	ØD (mm)
091079	3.0	4.0	1 cross	38.1 x 38.1 - 1.5" x 1.5"	7.4
091080	3.0	4.0	2 crosses	38.1 x 76.2 - 1.5" x 3."	7.2
091100	3.0	4.0	4 crosses	76 x 76 (3" x 3")	7.3
091226	3.0	4.0	2 crosses off center	38.1 x 19 - 1.5" x 3/4"	6.8
091227	3.0	4.0	1 cross	38.1 x 38.1 - 1.5" x 1.5"	7.0
091228	3.0	4.0	1 cross	38.1 x 38.1 - 1.5" x 1.5" R38 - 90°	7.0
091229	3.0	4.0	1 cross	38.1 x 38.1 - 1.5" x 1.5" - 45°	6.8
091231	3.0	4.0	4 crosses	76 x 76 (3" x 3")	7.0
