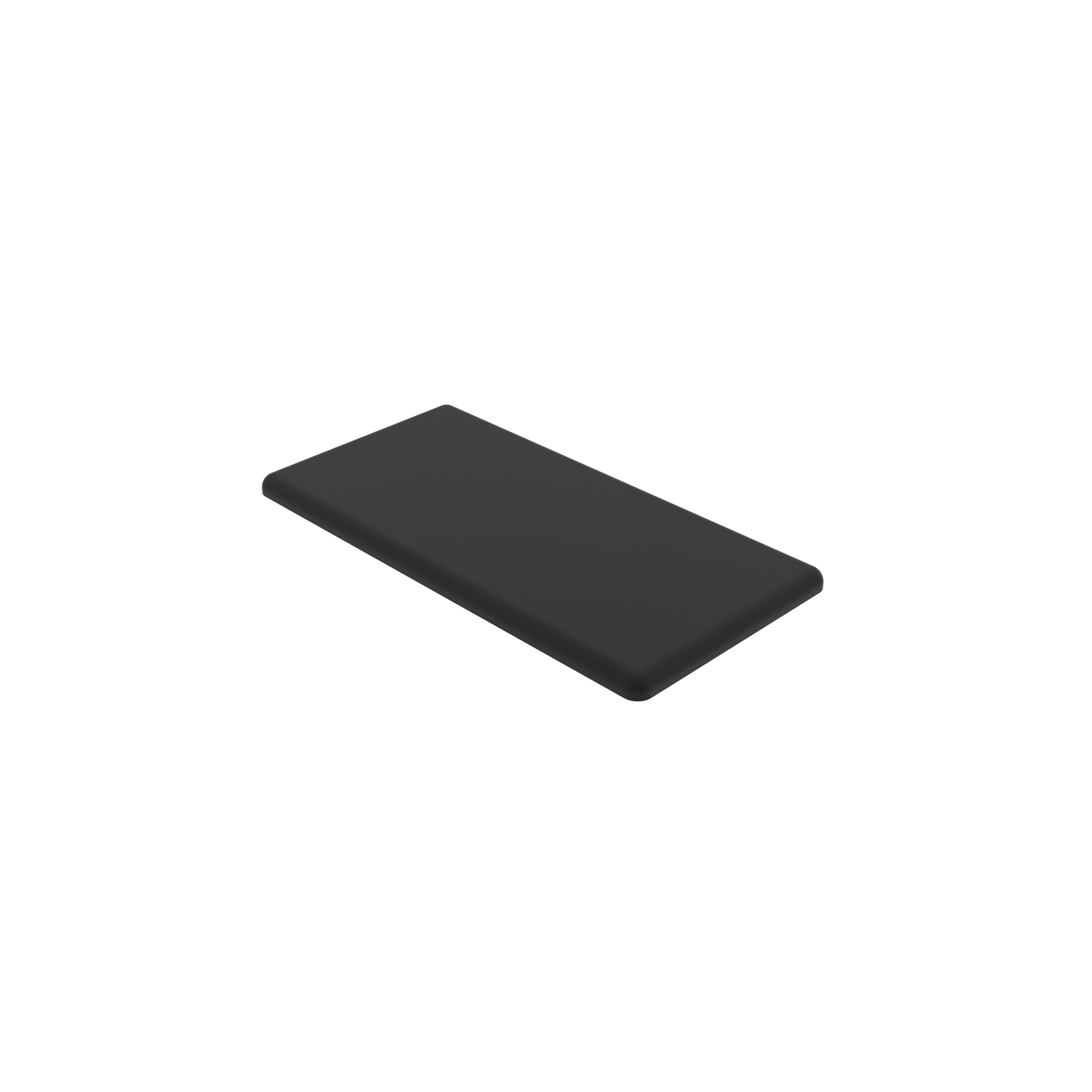

Cover Cap for 50 mm Modular Dimension

Product information "Cover Cap for 50 mm Modular Dimension"

Color:
Black, gray

Delivery Countries:
Worldwide

Description:
To cover the end of the profile

Material:
Plastic PA, glass fiber reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors on request

(ECLASS 6.0):	23369290
(ECLASS 7.0):	23369290
(ECLASS 8.0):	23369290
(ECLASS 9.0):	23369290
(ECLASS 10.0):	23369290
(ECLASS 11.0):	23360192
(ECLASS 12.0):	23360192
(ECLASS 13.0):	23360192
Customs Tariff Number Export:	39269097
Model:	50 mm modular dimension
Pack Quantity:	10 / 100 pieces, 100 pieces
Pack Quantity:	10
Pack Quantity (Stück):	10
Weight (g):	20.3
Zolltarifnummer:	39269097900
pA Number:	100089

Variants

Product ID	Dimensions A x B (mm)	Color	R (mm)	Profile	Slot N (mm)	ØD (mm)	T (mm)	Feature
091028	50 x 50	Black	3.0	B	10	10.3 (10.0)	4.0	1 pin for core hole
091028S03	50 x 50	Black	3.0	B	10	10.3 (10.0)	4.0	1 pin for core hole, ESD electrostatical discharging
091028S04	50 x 50	Gray ≈ RAL 7004	3.0	B	10	10.3 (10.0)	4.0	1 pin for core hole
091110	50 x 100	Black	3.0	B	10	10.3 (10.0)	4.0	2 Pins for core hole
091161	50 x 50	Black	1.5		10	14.15	4.0	1 pin for core hole
091238	50 x 50	Black	3.0			14.1	4.0	1 pin for core hole

CAD Downloads

Certificates

RoHS Certificate

REACH Certificate

POP Certificate

Conflict Minerals Certificate
