Cover Cap for 50 mm Modular Dimension

Product information "Cover Cap for 50 mm Modular Dimension"

Color:
Black, gray

Delivery Countries:
Worldwide

Description:

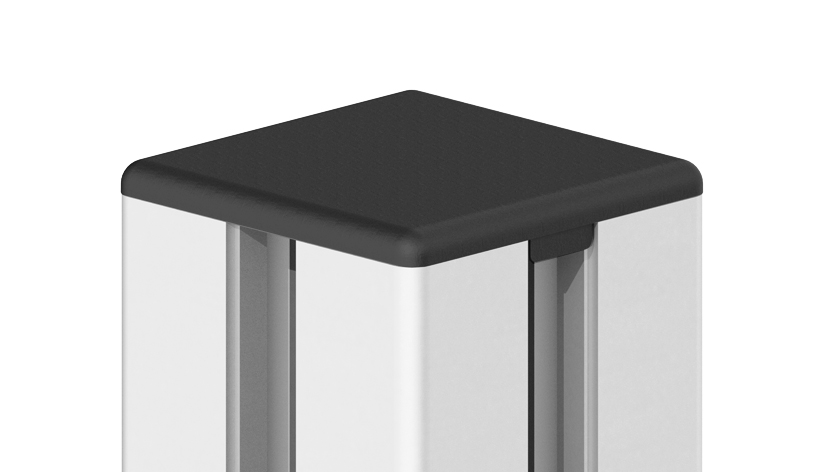

To cover the end of the profile

Material:
Plastic PA, glass fiber reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Pack Quantity:	100 pieces
Model:	50 mm modular dimension
Weight (g):	10.5
ERP Number:	100155

Global keywords / tags:

Slot Size	Slot 10
Modular Dimension	Modular Dimension 50

Variants

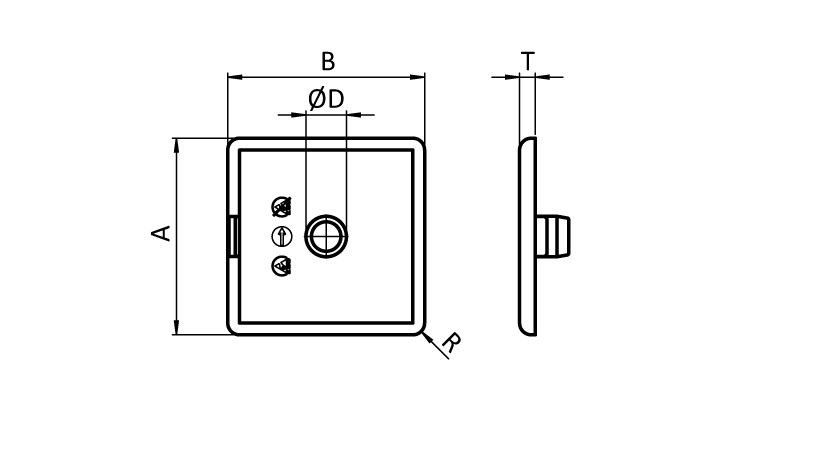

Part #	Profile	Feature	Fig.	Color	Slot N (mm)	ØD (mm)	R (mm)	T (mm)	Dimensions A x B (mm)	Pack Quantity
091028	B	1 pin for core hole	①	Black	10	10.3 (10.0)	3.0	4.0	50 x 50	100 pieces
091028S03	B	1 pin for core hole, ESD electrostatical discharging	①	Black	10	10.3 (10.0)	3.0	4.0	50 x 50	100 pieces
091028S04	B	1 pin for core hole	①	Gray ≈ RAL 7004	10	10.3 (10.0)	3.0	4.0	50 x 50	100 pieces
091110	B	2 Pins for core hole	②	Black	10	10.3 (10.0)	3.0	4.0	50 x 100	10 pieces
091161	-	1 pin for core hole	①	Black	10	14.15	1.5	4.0	50 x 50	100 pieces
091238	-	1 pin for core hole	①	Black	-	14.1	3.0	4.0	50 x 50	100 pieces

CAD Downloads

Classifications

ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360192
ECLASS 12.0: 23360192
ECLASS 13.0: 23360192
Zolltarifnummer: 39269097900
Customs Tariff Number Export: 39269097

Certificates

RoHS Certificate

REACH Certificate

POP Certificate

Conflict Minerals Certificate
