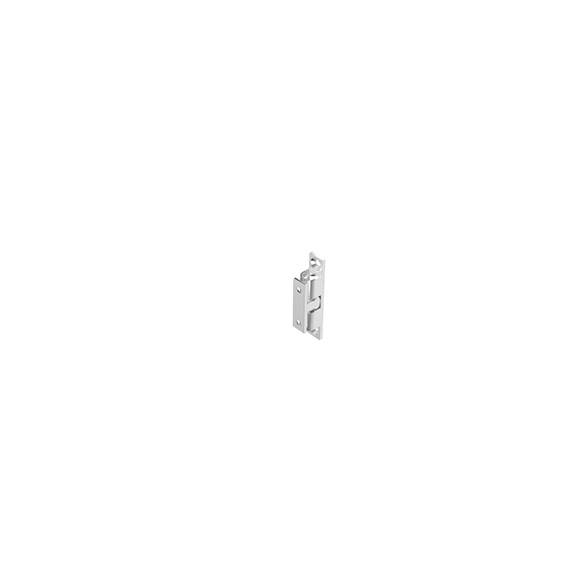

Double Ball Catch MS

Product information "Double Ball Catch MS"

Color:
Chrome

Delivery Countries:
Worldwide

Description:

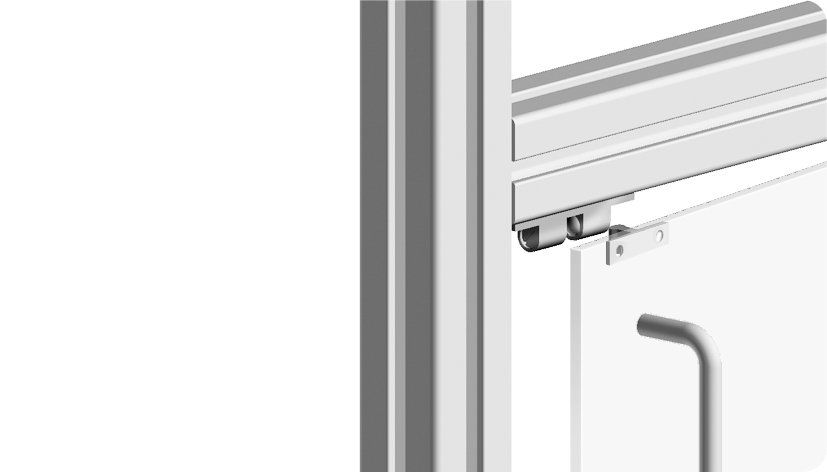

Quick catch for doors, adjustable clamping force, 2 possible positions (sideways / from the front)

Material:
Body: Brass
Threaded pin: Steel
Spring: Stainless steel
Ball: Stainless steel

Surface:
Chrome plated

Zolltarifnummer:
74198090980
(ECLASS 6.0): 23250190
(ECLASS 7.0): 23250190
(ECLASS 8.0): 23250190
(ECLASS 9.0): 23250190
(ECLASS 10.0): 23250190
(ECLASS 11.0): 23250190
(ECLASS 12.0): 23250190
(ECLASS 13.0): 23250190

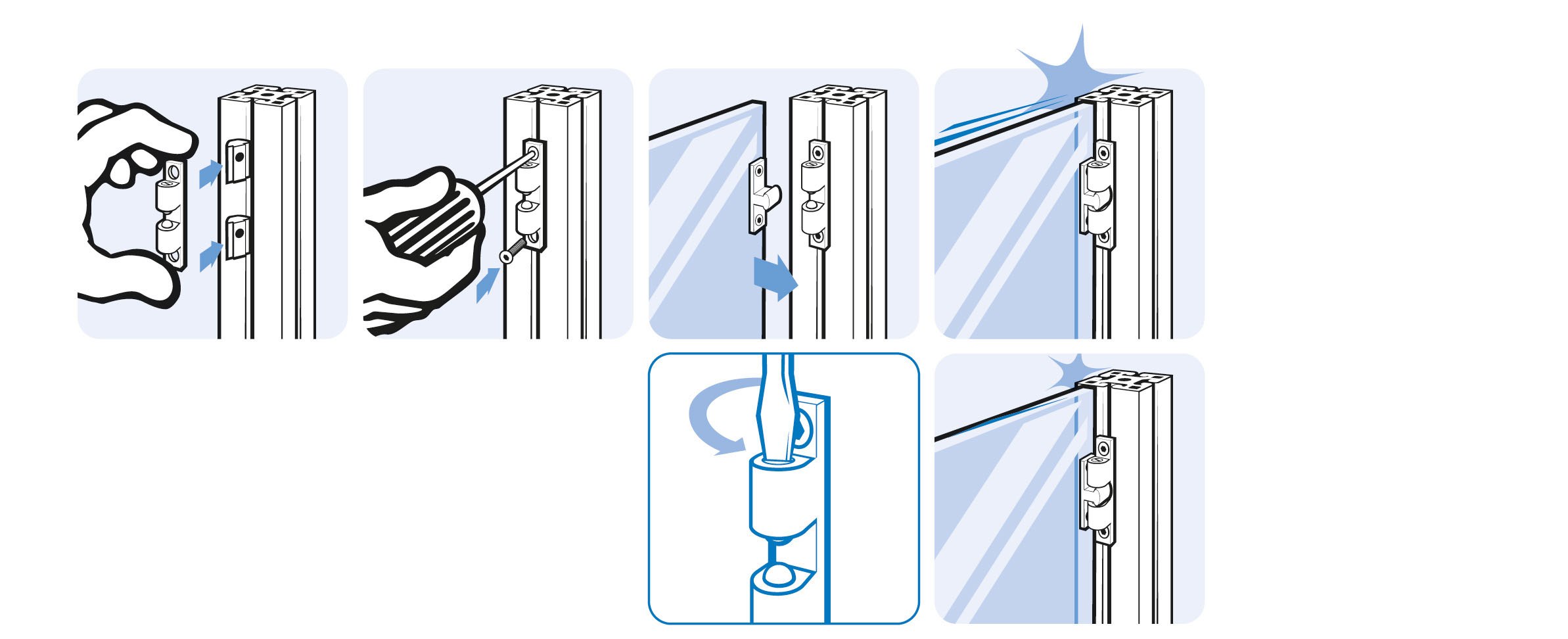

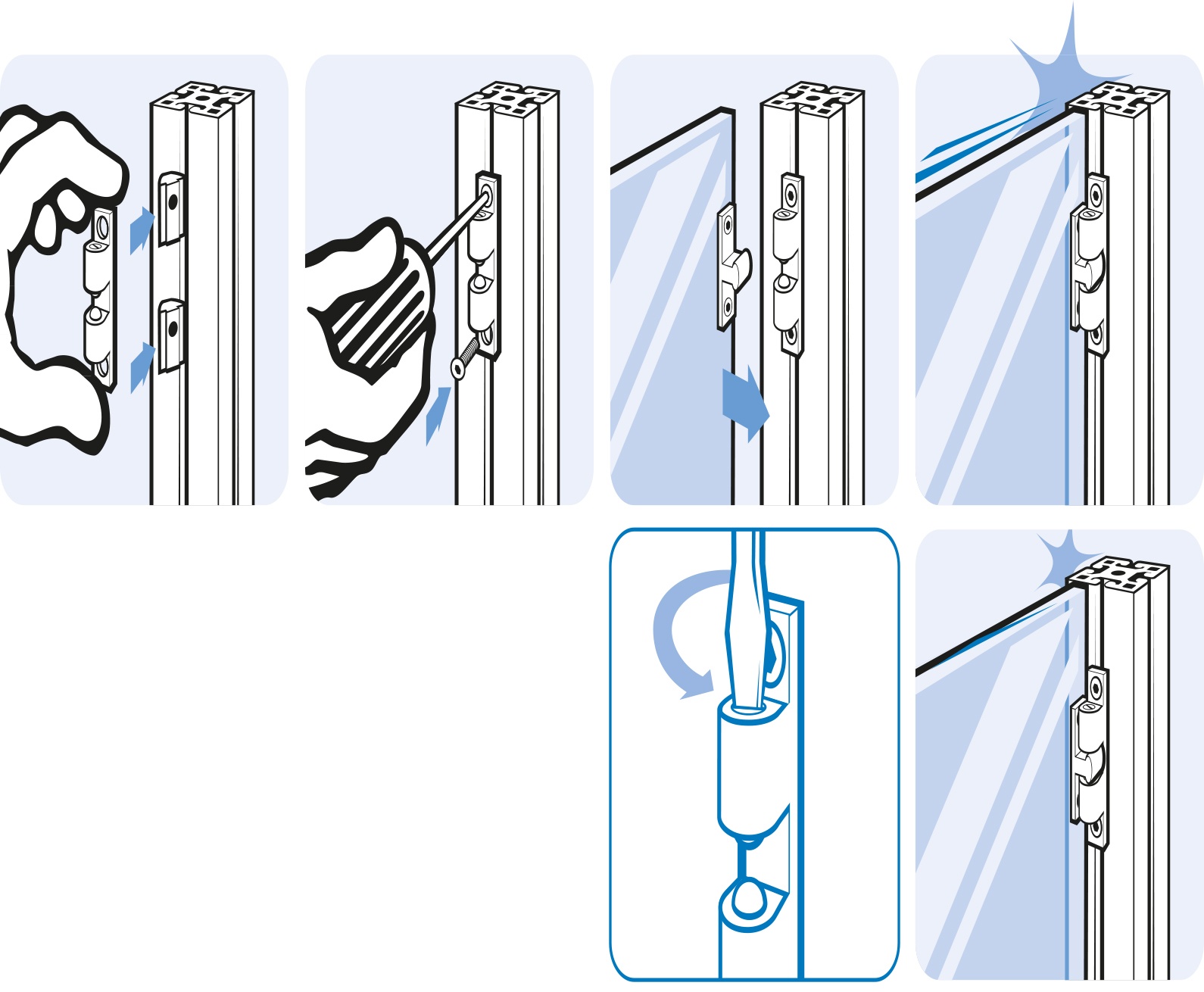

Fastening: From the front, using countersunk screws
Model: Brass
Pack Quantity: 10 pieces
Weight (g): 23.60

Variants

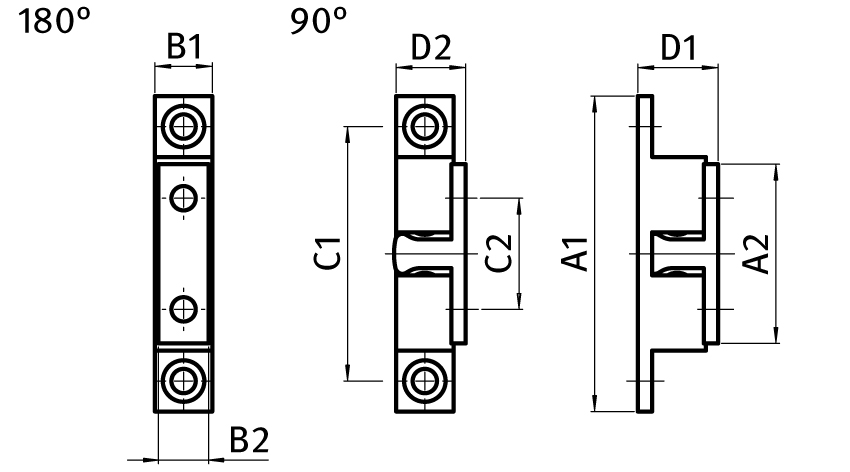

Product ID Screw D1 (mm) C1 (mm) C2 (mm) D2 (mm) A2 (mm) B1 (mm) B2 (mm) A1 (mm)
0930461 M3 11.8 35.0 15.0 10.0 25.0 7.9 7.0 44.0
0930462 M3 13.0 40.0 20.0 10.8 29.5 8.8 7.9 49.0
0930463 M4 15.9 50.0 24.0 13.5 36.0 11.0 9.0 60.0
0930464 M4 18.5 58.0 30.0 16.0 40.0 13.0 12.0 68.4
