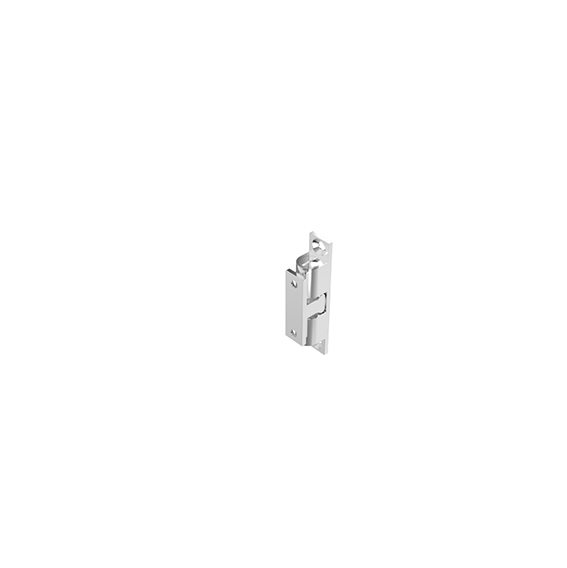

Double Ball Catch MS

Description:
Quick catch for doors, adjustable clamping force, 2 possible positions (sideways / from the front)

Material:
Body: Brass
Threaded pin: Steel
Spring: Stainless steel
Ball: Stainless steel

Surface:
Chrome plated

Color:
Chrome

Fastening:
From the front, using countersunk screws

Delivery Countries:
Worldwide

Pack Quantity:	10 pieces
Model:	Brass
Weight (g):	65.00
ERP Number:	100387

Variants

Part #	D1 (mm)	D2 (mm)	B1 (mm)	B2 (mm)	A1 (mm)	A2 (mm)	Screw	C1 (mm)	C2 (mm)
0930461	11.8	10.0	7.9	7.0	44.0	25.0	M3	35.0	15.0
0930462	13.0	10.8	8.8	7.9	49.0	29.5	M3	40.0	20.0
0930463	15.9	13.5	11.0	9.0	60.0	36.0	M4	50.0	24.0
0930464	18.5	16.0	13.0	12.0	68.4	40.0	M4	58.0	30.0
