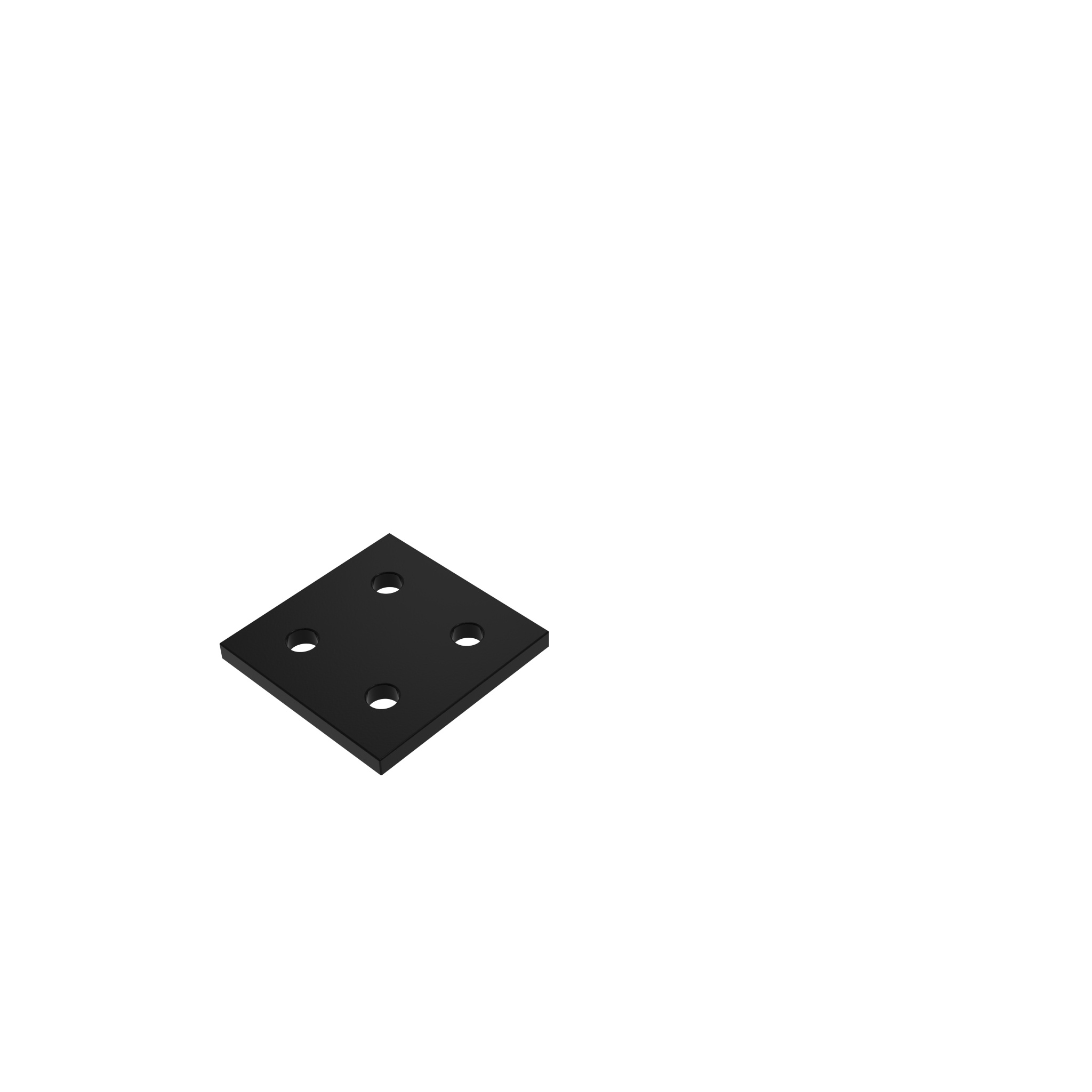

ECO Connection Plate AL Quadrangular 4 Hole, 1 Slot Version
Product number:
093EVA5151S
Product information "ECO Connection Plate AL Quadrangular 4 Hole, 1 Slot Version"
Color:
Black
Delivery Countries:
North America
Description:

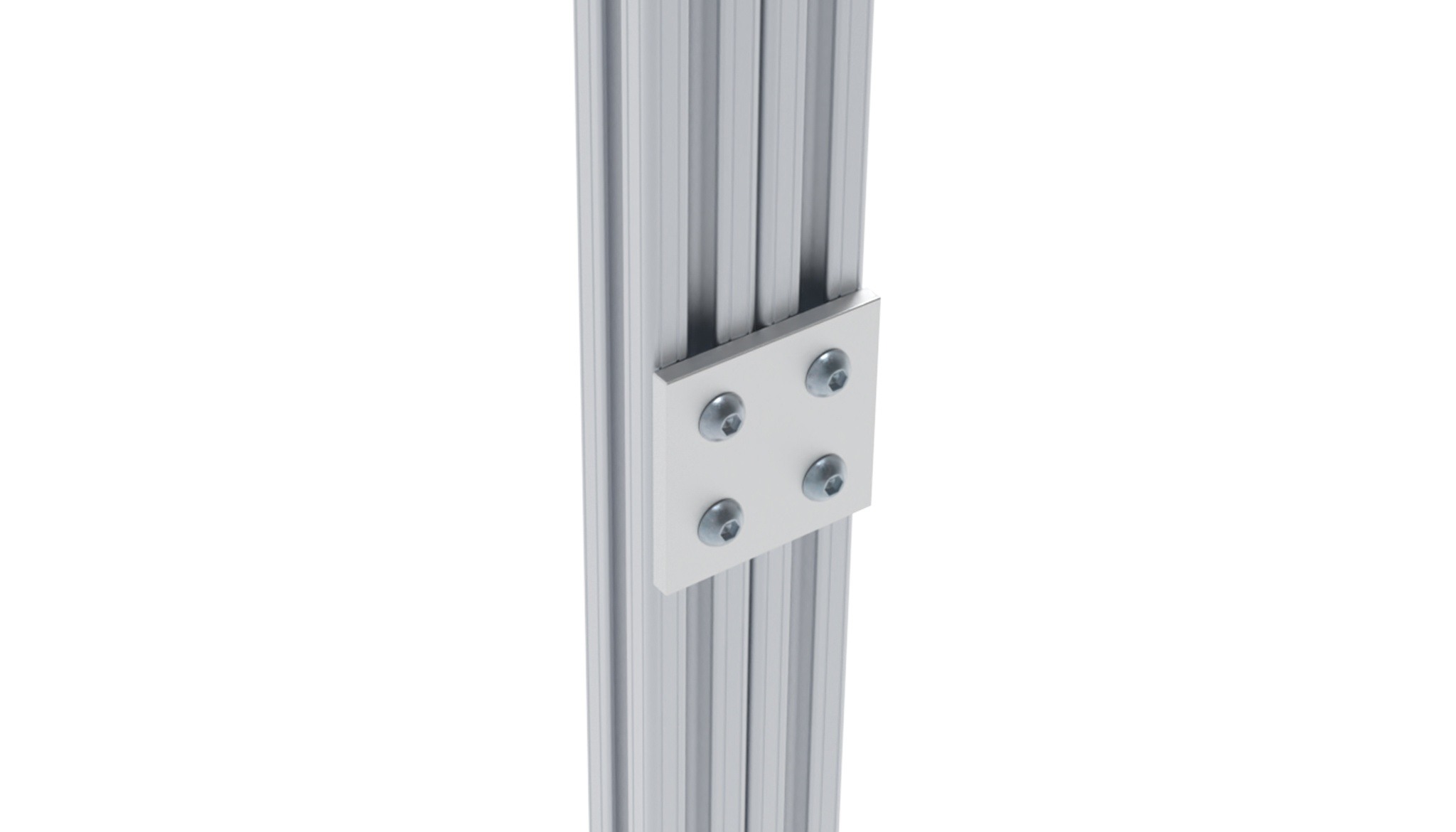

To connect two aluminum profiles
Material:
Aluminum
Surface:
Powder coated / anodized
Tip:
Compatible ECO T-nut see 096E20M5S05 et sq.
Zolltarifnummer:
76169990990
Black
Delivery Countries:
North America
Description:
To connect two aluminum profiles
Material:
Aluminum
Surface:
Powder coated / anodized
Tip:
Compatible ECO T-nut see 096E20M5S05 et sq.
Zolltarifnummer:
76169990990
Model: | Aluminum |
---|---|
Pack Quantity: | 10 pieces |
Weight (g): | 35.0 |
Variants

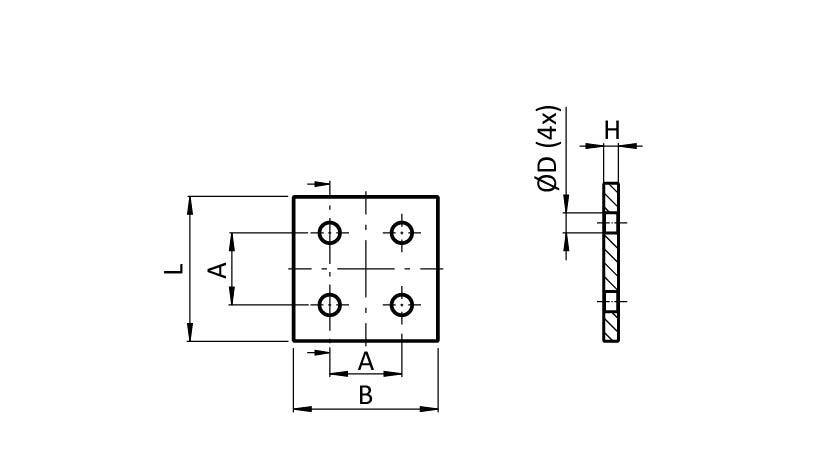

Product ID | Fig. | Color | Surface | ØD (mm) | A (mm) | H (mm) | B (mm) | L (mm) | Version |
---|---|---|---|---|---|---|---|---|---|
093EVA5151 | ② | Anodized | 7.0 (0.27") | 25.4 (1") | 4.8 (0.19") | 50.8 (2") | 50.8 (2") | 50.8 / 50.8 - 2" / 2" | |
093EVA5151S | ① | Black | Powder coated | 7.0 (0.27") | 25.4 (1") | 4.8 (0.19") | 50.8 (2") | 50.8 (2") | 50.8 / 50.8 - 2" / 2" |
093EVA7676 | ② | Anodized | 9.0 (0.35") | 38.1 (1.5") | 6.35 (0.25") | 76.2 (3") | 76.2 (3") | 76.2 / 76.2 - 3" / 3" | |
093EVA7676S | ① | Black | Powder coated | 9.0 (0.35") | 38.1 (1.5") | 6.35 (0.25") | 76.2 (3") | 76.2 (3") | 76.2 / 76.2 - 3" / 3" |
