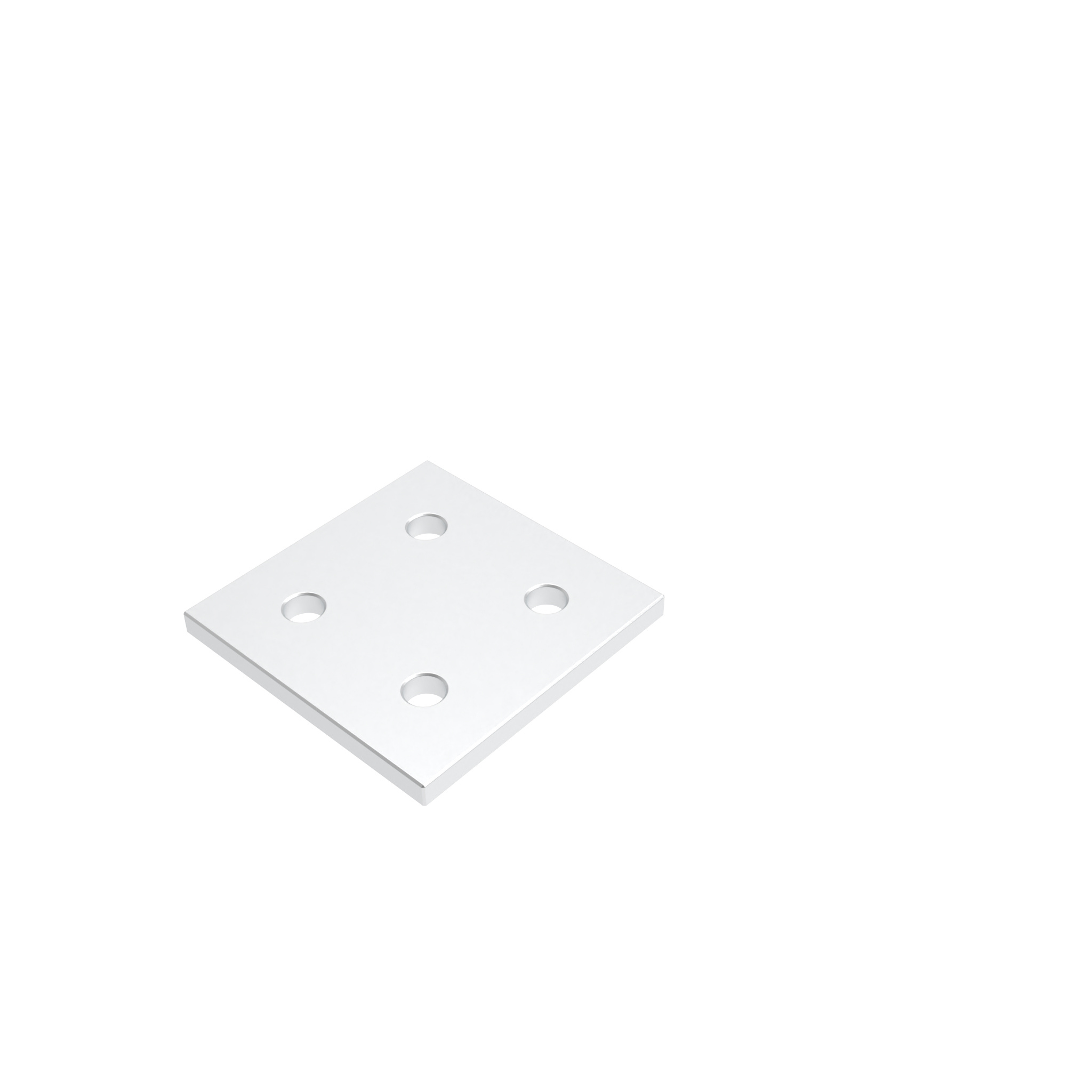

ECO Connection Plate AL Quadrangular 4 Hole, 1 Slot Version

Product information "ECO Connection Plate AL Quadrangular 4 Hole, 1 Slot Version"

Color:
Black

Delivery Countries:
North America

Description:

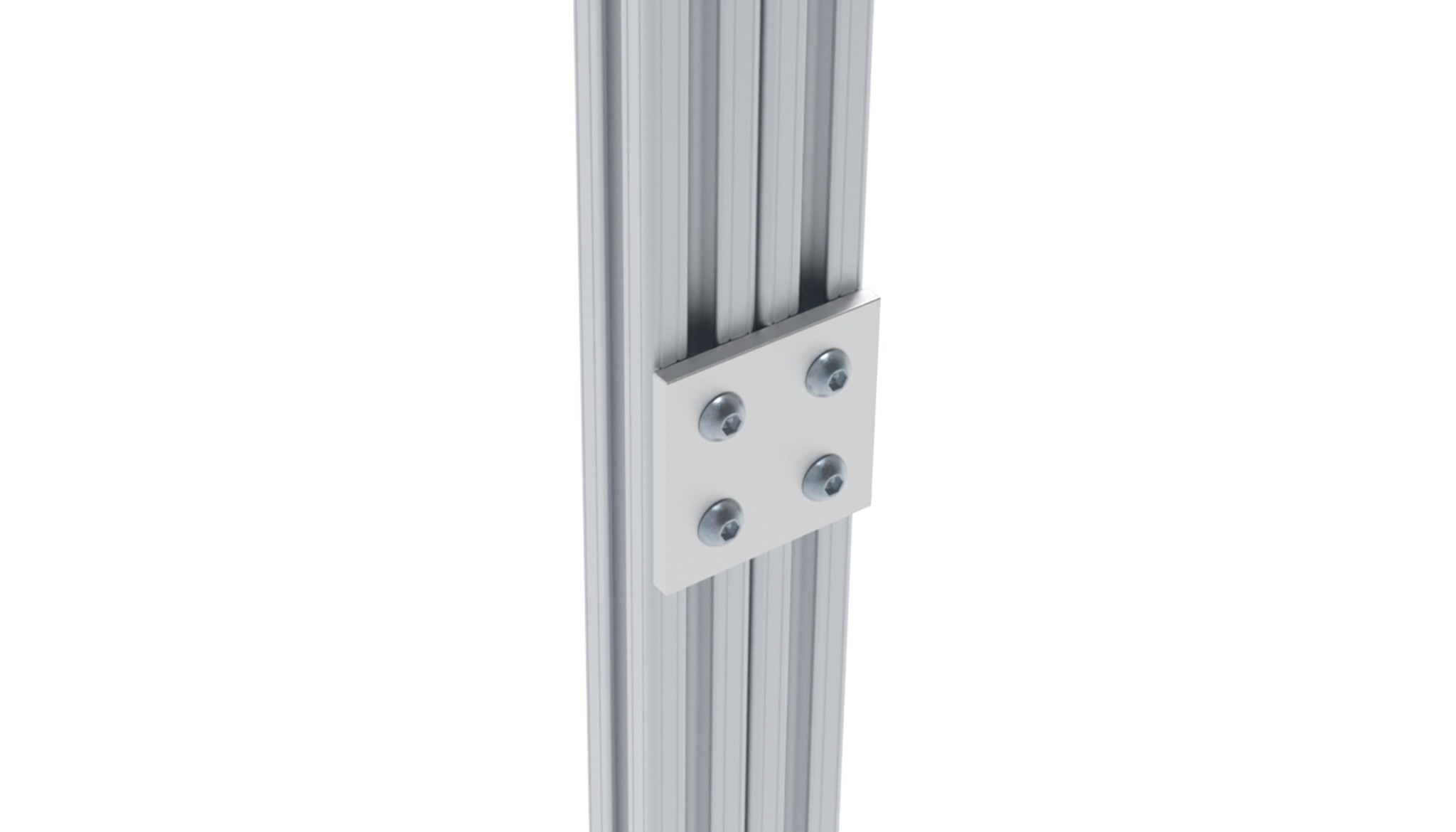

To connect two aluminum profiles

Material:
Aluminum

Surface:
Powder coated / anodized

Pack Quantity:	10 pieces
Model:	Aluminum
Weight (g):	92.0
ECLASS 6.0:	23360290
ECLASS 7.0:	23360290
ECLASS 8.0:	23360290
ECLASS 9.0:	23360290
ECLASS 10.0:	23360290
ECLASS 11.0:	23360290
ECLASS 12.0:	23360290
ECLASS 13.0:	23360290
Zolltarifnummer:	76169990990
Customs Tariff Number Export:	76169990
ERP Number:	150567

Variants

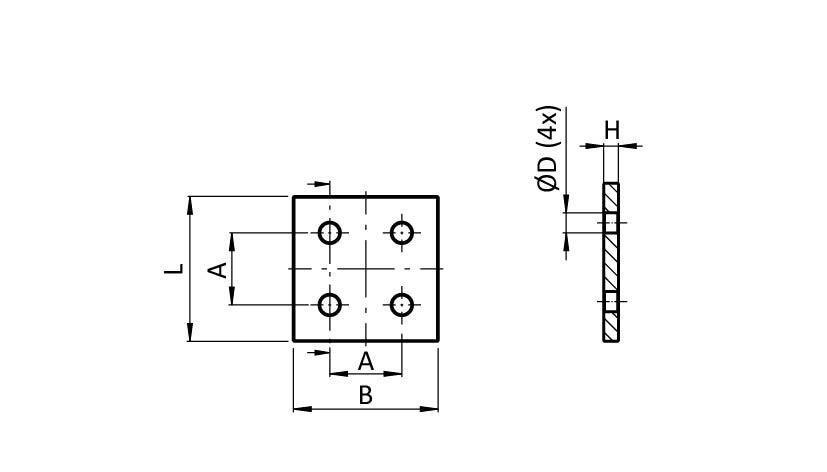

Part #	Version	H (mm)	A (mm)	B (mm)	L (mm)	Fig.	Surface	Color	ØD (mm)
093EVA5151	50.8 / 50.8 - 2" / 2"	4.8 (0.19")	25.4 (1")	50.8 (2")	50.8 (2")	②	Anodized	-	7.0 (0.27")
093EVA5151S	50.8 / 50.8 - 2" / 2"	4.8 (0.19")	25.4 (1")	50.8 (2")	50.8 (2")	①	Powder coated	Black	7.0 (0.27")
093EVA7676	76.2 / 76.2 - 3" / 3"	6.35 (0.25")	38.1 (1.5")	76.2 (3")	76.2 (3")	②	Anodized	-	9.0 (0.35")
093EVA7676S	76.2 / 76.2 - 3" / 3"	6.35 (0.25")	38.1 (1.5")	76.2 (3")	76.2 (3")	①	Powder coated	Black	9.0 (0.35")
