ECO Connection Plate AL Rectangular 3 Hole, 1 Slot Version

Product information "ECO Connection Plate AL Rectangular 3 Hole, 1 Slot Version"

Color:
Black

Delivery Countries:
North America

Description:

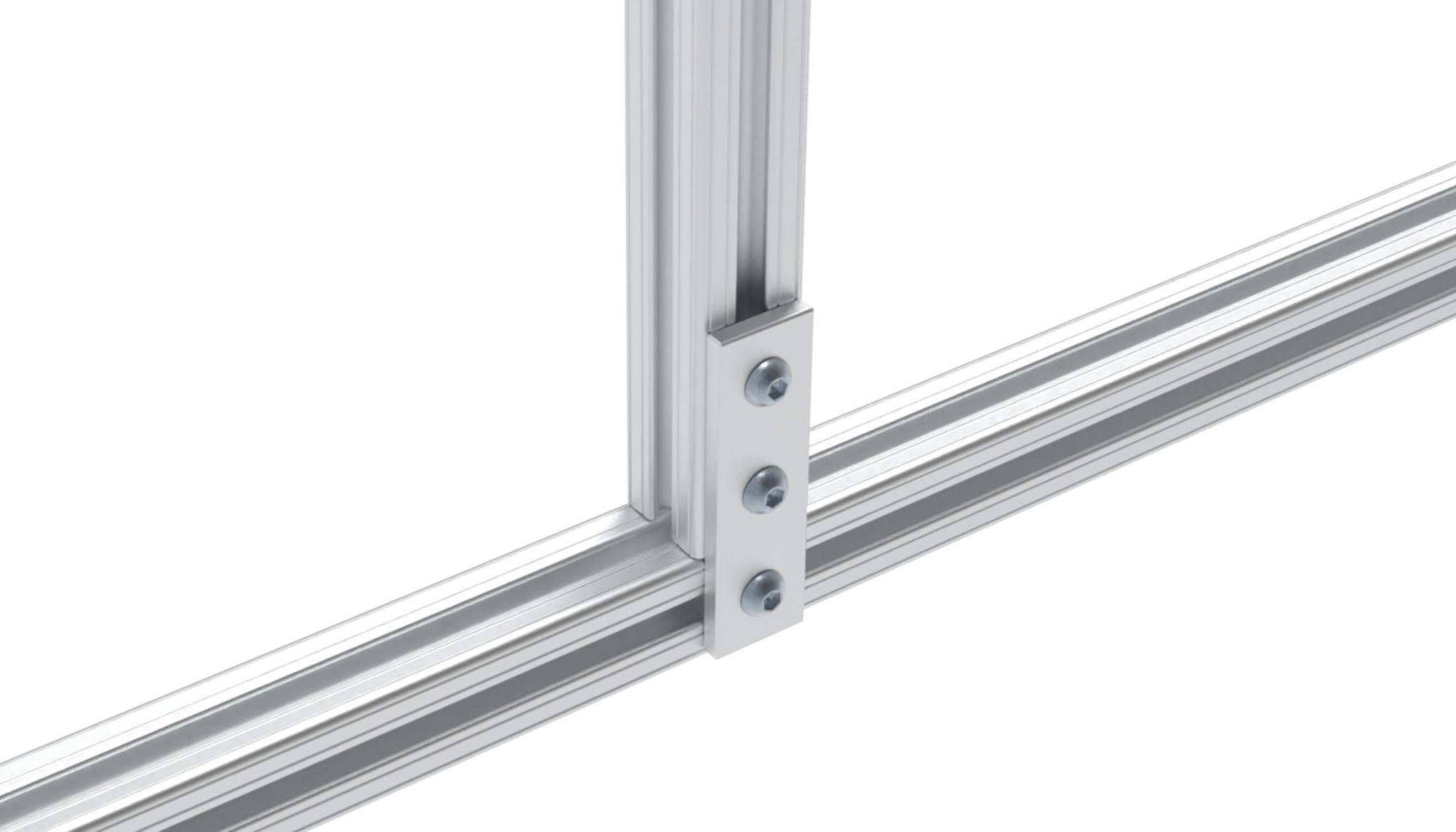

To connect two aluminum profiles

Material:
Aluminum

Surface:
Powder coated / anodized

Tip:
Compatible ECO T-nut see 096E20M5S05 et sq.

Zolltarifnummer:
76169990990
Model: Aluminum
Pack Quantity: 10 pieces
Weight (g): 70.0

Variants

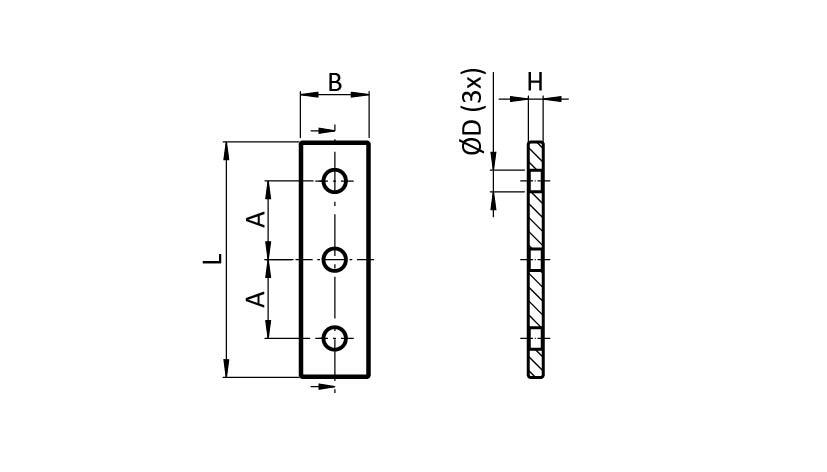

Product ID Fig. Version Color Surface ØD (mm) A (mm) H (mm) L (mm) B (mm)
093EVA2576 38 / 114 - 1.5" / 4.5" Anodized 7.0 (0.27") 25.4 (1") 4.8 (0.19") 76.2 (3") 22.2 (0.88")
093EVA2576S 38 / 114 - 1.5" / 4.5" Black Powder coated 7.0 (0.27") 25.4 (1") 4.8 (0.19") 76.2 (3") 22.2 (0.88")
093EVA38114 38 / 114 - 1.5" / 4.5" Anodized 9.0 (0.35") 38.1 (1.5") 6.35 (0.25") 114.3 (4.5") 38.0 (1.49")
093EVA38114S 38 / 114 - 1.5" / 4.5" Black Powder coated 9.0 (0.35") 38.1 (1.5") 6.35 (0.25") 114.3 (4.5") 38.0 (1.49")
