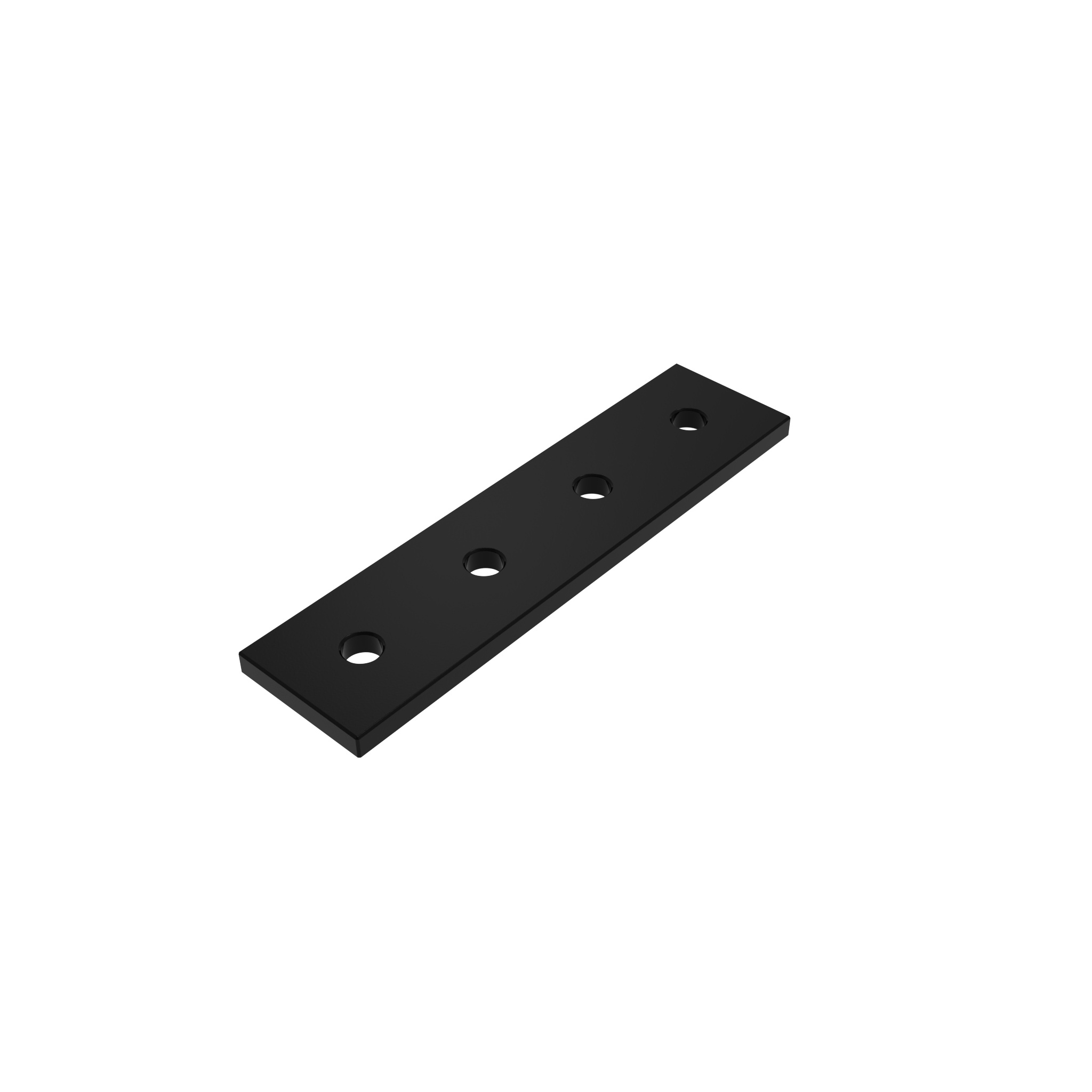

ECO Connection Plate AL Rectangular 4 Hole, 1 Slot Version

Product information "ECO Connection Plate AL Rectangular 4 Hole, 1 Slot Version"

Color:
Black

Delivery Countries:
North America

Description:

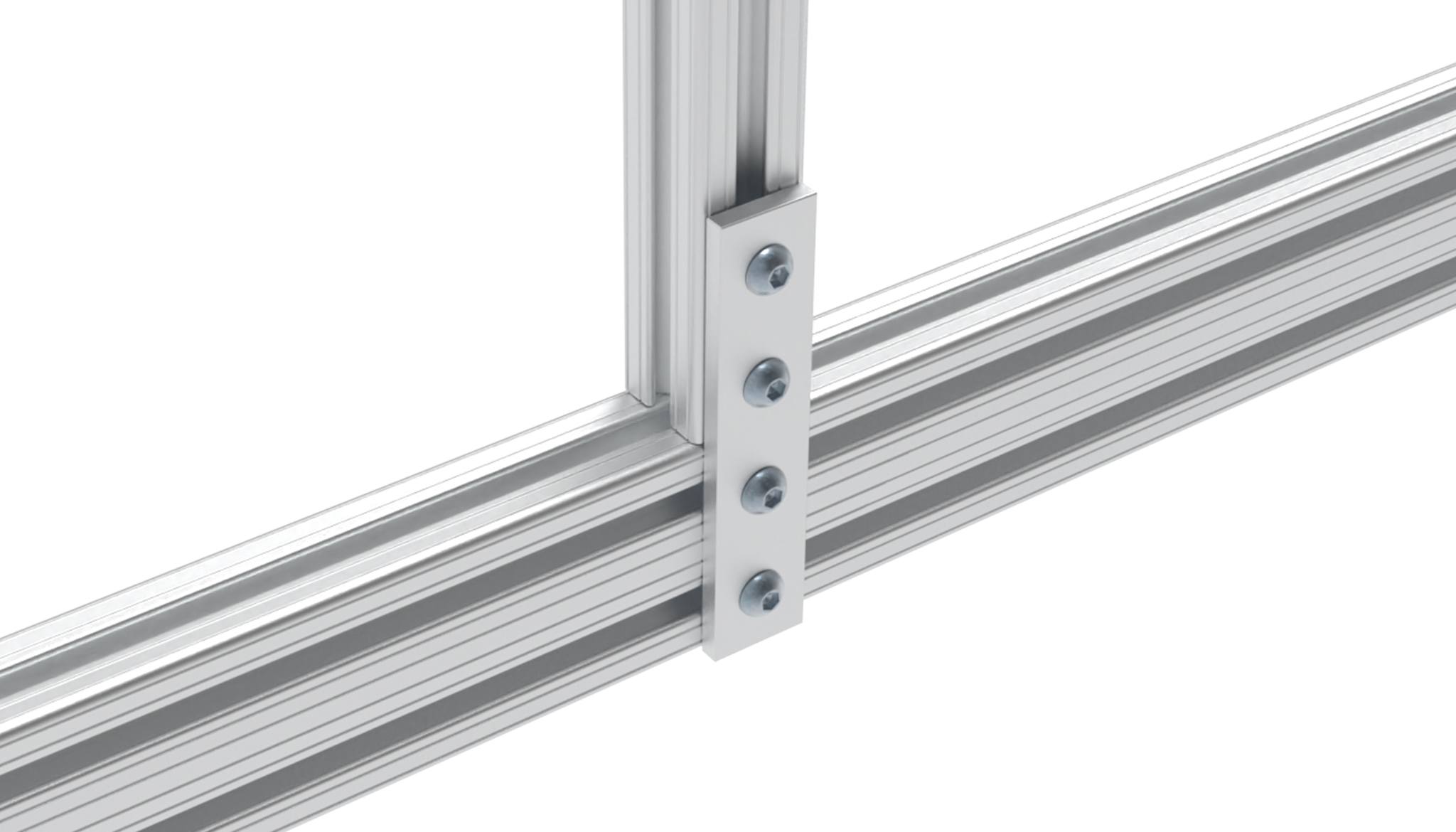

To connect two aluminum profiles

Material:
Aluminum

Surface:
Powder coated / anodized

Model:	Aluminum
Pack Quantity:	10 pieces
Customs Tariff Number Export:	76169990
Weight (g):	98.0
(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
ERP Number:	166264
Zolltarifnummer:	76169990990

Variants

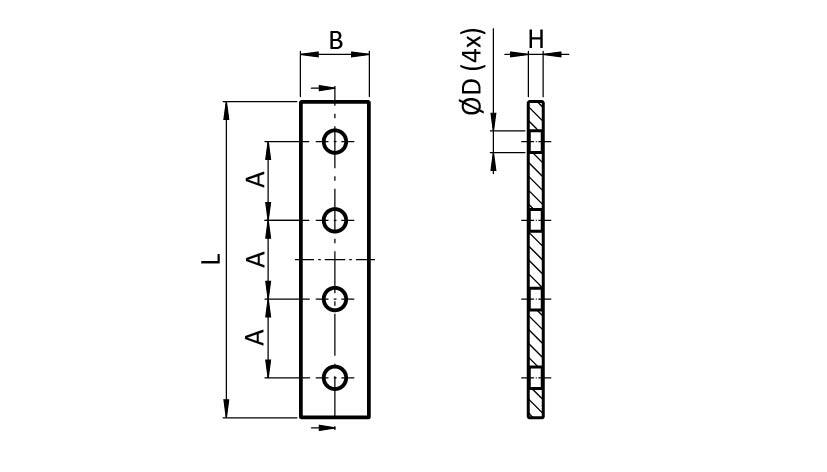

Part #	Fig.	Version	Color	ØD (mm)	A (mm)	B (mm)	H (mm)	L (mm)	Surface
093EVA25102	②	25 / 101 - 1" / 4"	-	7.0 (0.27")	25.4 (1")	22.2 (0.88")	4.8 (0.19")	101.6 (4")	Anodized
093EVA25102S	①	25 / 101 - 1" / 4"	Black	7.0 (0.27")	25.4 (1")	22.2 (0.88")	4.8 (0.19")	101.6 (4")	Powder coated
093EVA38152	②	38 / 152 - 1.5" / 6"	-	9.0 (0.35")	38.1 (1.5")	38.0 (1.49")	6.35 (0.25")	152.4 (6")	Anodized
093EVA38152S	①	38 / 152 - 1.5" / 6"	Black	9.0 (0.35")	38.1 (1.5")	38.0 (1.49")	6.35 (0.25")	152.4 (6")	Powder coated
