ECO Connection Plate AL Rectangular 8 Hole, 2 Slots Version

Product information "ECO Connection Plate AL Rectangular 8 Hole, 2 Slots Version"

Color:
Black

Delivery Countries:
North America

Description:

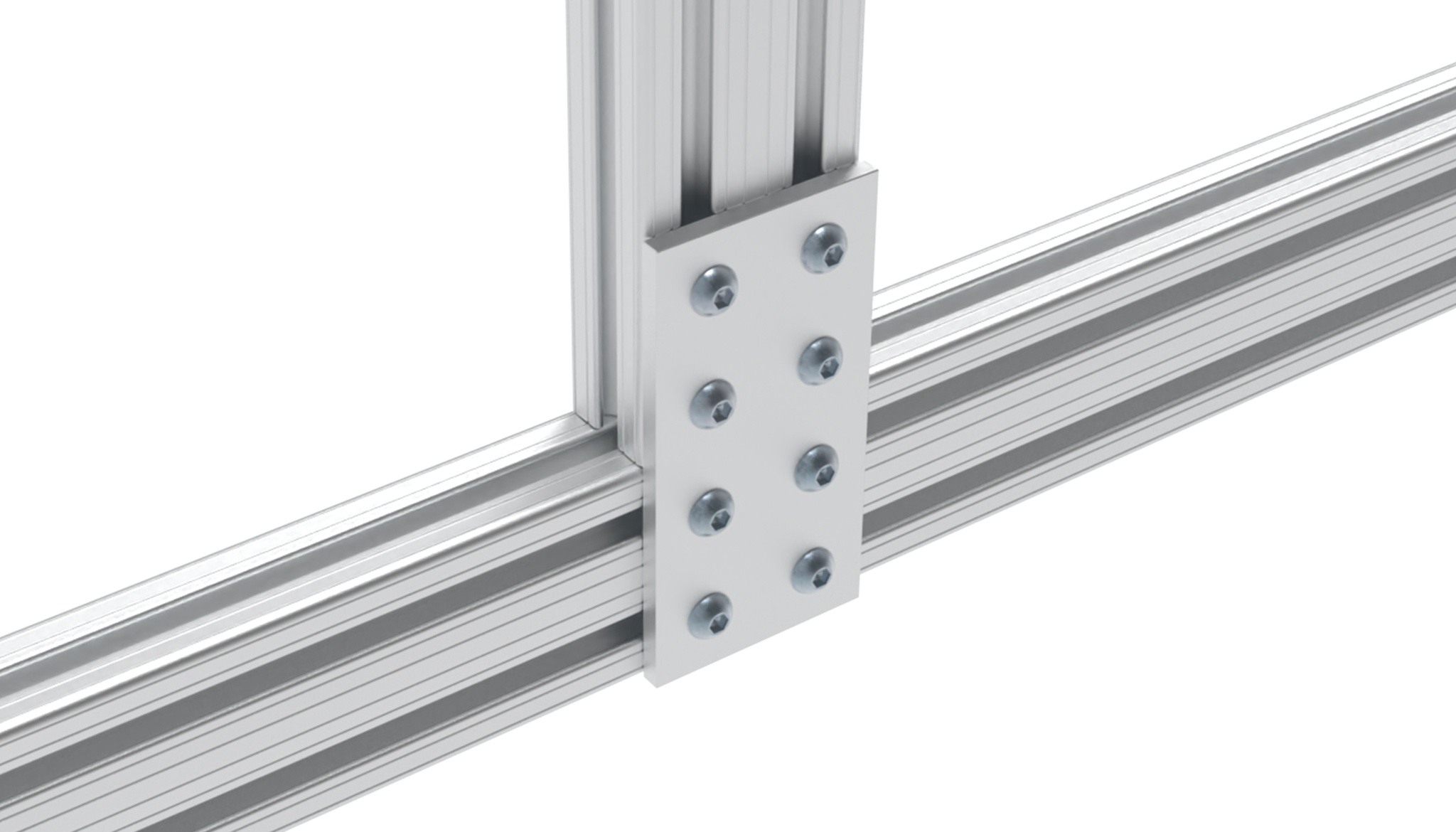

To connect two aluminum profiles

Material:
Aluminum

Surface:
Powder coated / anodized

(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
Customs Tariff Number Export:	76169990
ERP Number:	150570
Model:	Aluminum
Pack Quantity:	10 pieces
Weight (g):	60.0
Zolltarifnummer:	76169990990

Variants

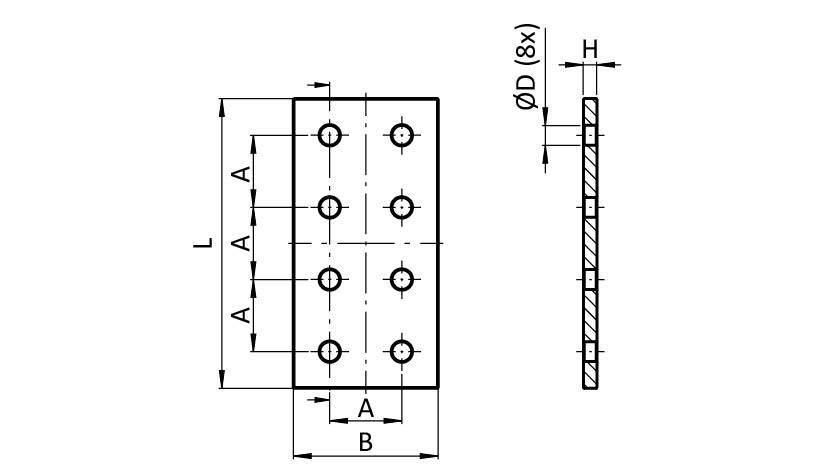

Part #	ØD (mm)	A (mm)	H (mm)	Fig.	B (mm)	Color	L (mm)	Surface	Version
093EVD51102	7.0 (0.27")	25.4 (1")	4.8 (0.19")	②	50.8 (2")		101.6 (4")	Anodized	50.8 / 101.6 - 2" / 4"
093EVD51102S	7.0 (0.27")	25.4 (1")	4.8 (0.19")	①	50.8 (2")	Black	101.6 (4")	Powder coated	50.8 / 101.6 - 2" / 4"
093EVD76152	9.0 (0.35")	38.1 (1.5")	6.35 (0.25")	②	76.2 (3")		152.4 (6")	Anodized	76.2 / 152.4 - 3" / 6"
093EVD76152S	9.0 (0.35")	38.1 (1.5")	6.35 (0.25")	①	76.2 (3")	Black	152.4 (6")	Powder coated	76.2 / 152.4 - 3" / 6"
