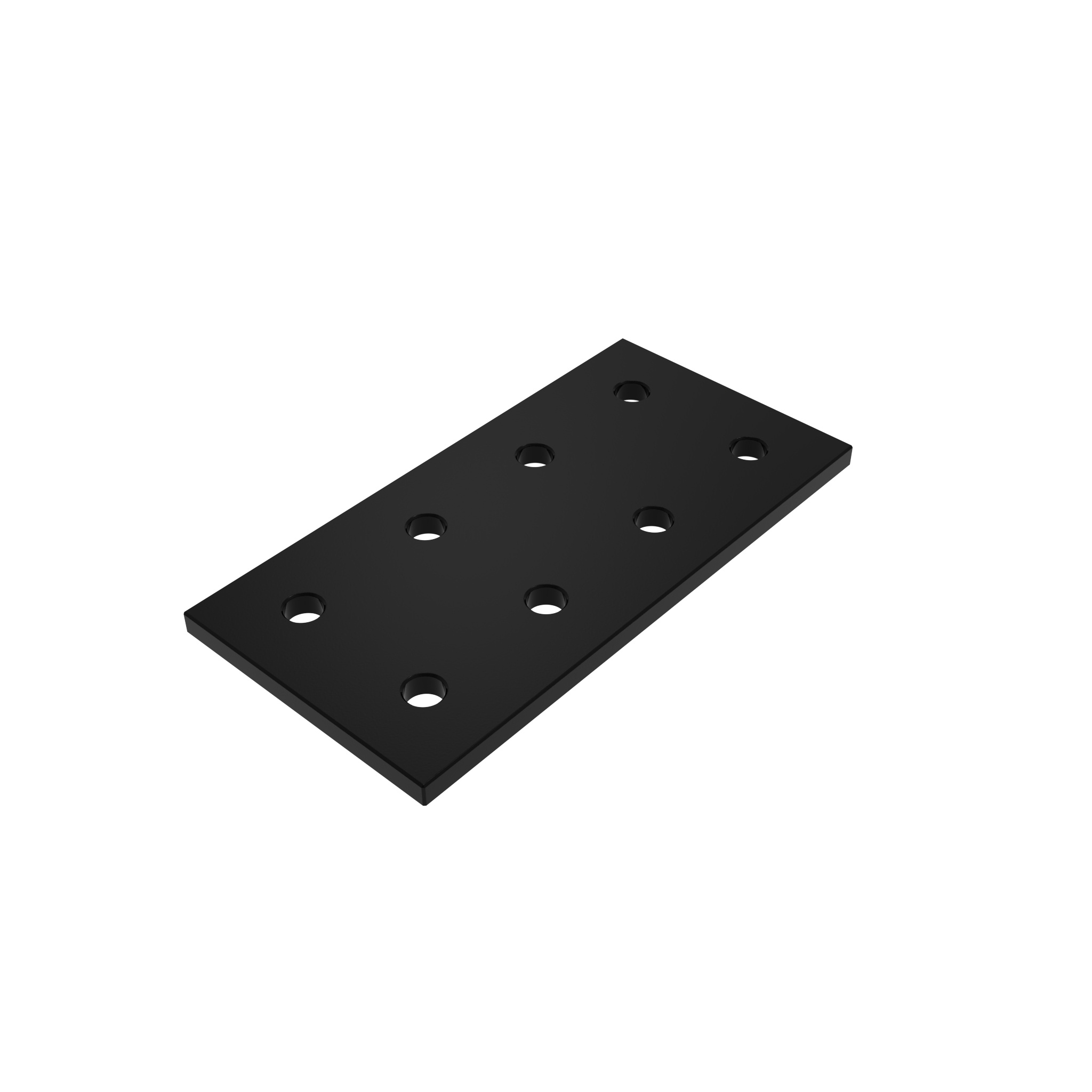

ECO Connection Plate AL Rectangular 8 Hole, 2 Slots Version

Skip image gallery

€0.00*

Prices excl. VAT plus shipping costs

A (mm)
B (mm)
Color
Fig.
H (mm)
L (mm)
Surface
Version
ØD (mm)
Product number: 093EVD76152S

Product information "ECO Connection Plate AL Rectangular 8 Hole, 2 Slots Version"

Color:
Black

Delivery Countries:
North America

Description:
To connect two aluminum profiles

Material:
Aluminum

Surface:
Powder coated / anodized
Customs Tariff Number Export: 76169990
Model: Aluminum
Pack Quantity: 10 pieces
Weight (g): 192.0
Zolltarifnummer: 76169990990
pA Number: 166267

Variants

Product ID ØD (mm) A (mm) H (mm) Fig. B (mm) Color L (mm) Surface Version
093EVD51102 7.0 (0.27") 25.4 (1") 4.8 (0.19") ② 50.8 (2") 101.6 (4") Anodized 50.8 / 101.6 - 2" / 4"
093EVD51102S 7.0 (0.27") 25.4 (1") 4.8 (0.19") ① 50.8 (2") Black 101.6 (4") Powder coated 50.8 / 101.6 - 2" / 4"
093EVD76152 9.0 (0.35") 38.1 (1.5") 6.35 (0.25") ② 76.2 (3") 152.4 (6") Anodized 76.2 / 152.4 - 3" / 6"
093EVD76152S 9.0 (0.35") 38.1 (1.5") 6.35 (0.25") ① 76.2 (3") Black 152.4 (6") Powder coated 76.2 / 152.4 - 3" / 6"
