ECO Connection Plate AL T 5 Hole, 1 Slot Version

Product information "ECO Connection Plate AL T 5 Hole, 1 Slot Version"

Color:
Black

Delivery Countries:
North America

Description:

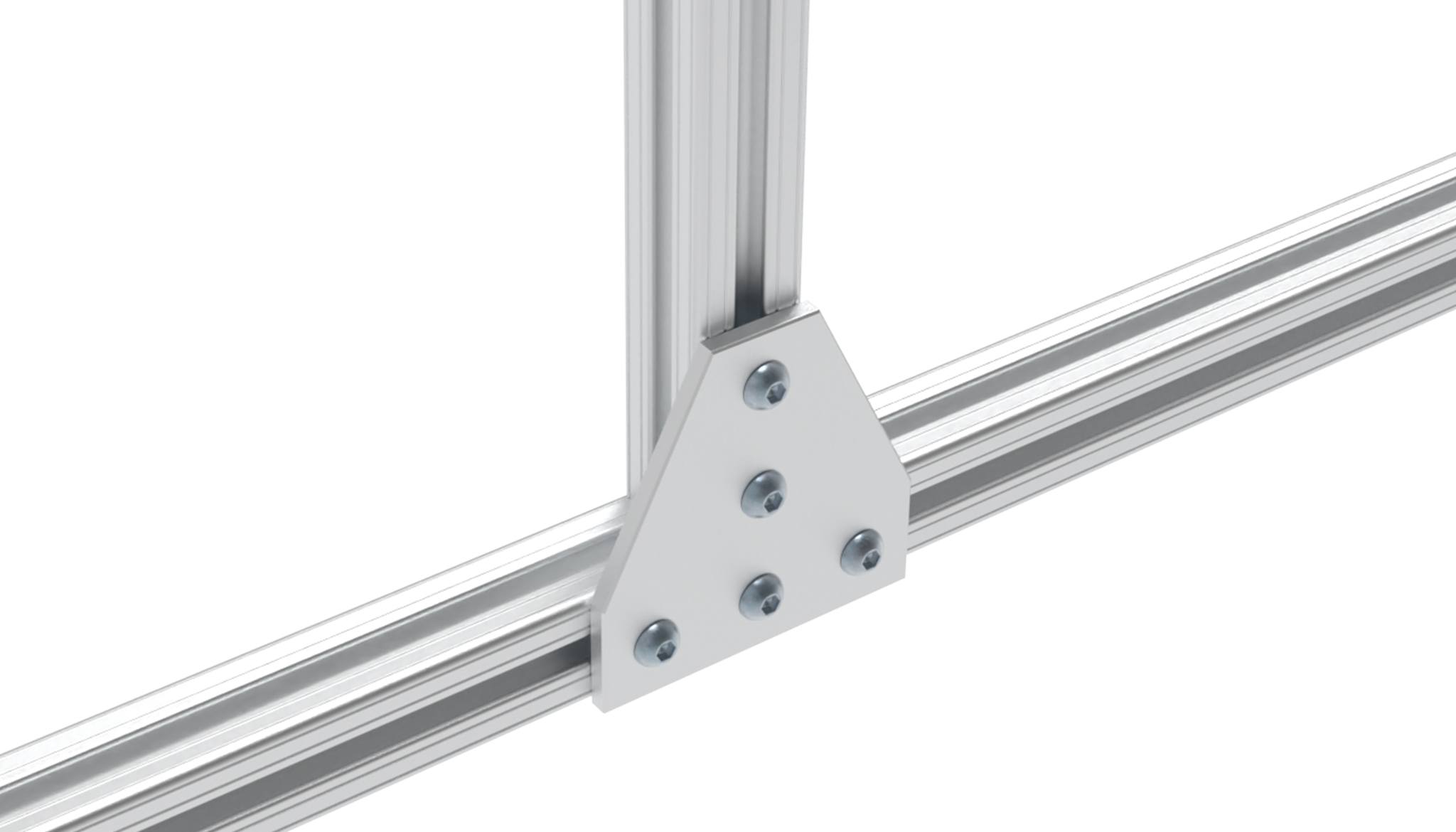

To connect two aluminum profiles

Material:
Aluminum

Surface:
Powder coated / anodized

Customs Tariff Number Export:	76169990
ERP Number:	166213
Model:	Aluminum
Pack Quantity:	10 pieces
Weight (g):	57.0
Zolltarifnummer:	76169990990

Variants

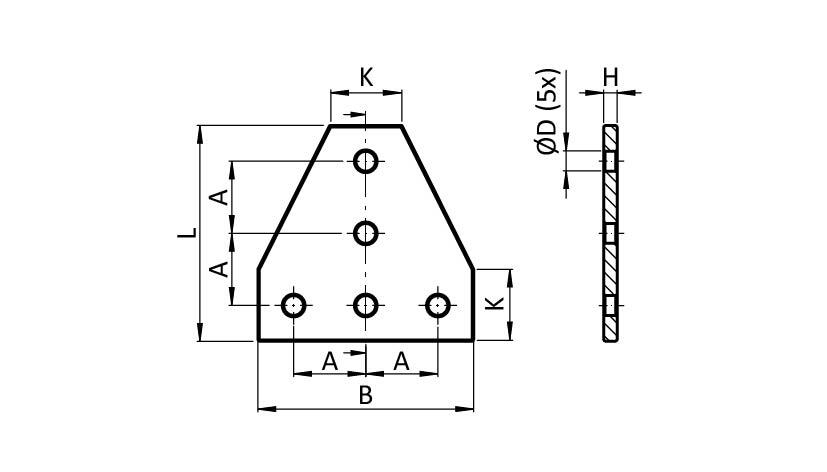

Product ID	Fig.	Color	A (mm)	L (mm)	H (mm)	Version	K (mm)	Surface	ØD (mm)	B (mm)
093EVT114114	②		38.1 (1.5")	114.3 (4.5")	6.35 (0.25")	114 / 114 - 4.48" / 4.48"	38.0 (1.49")	Anodized	9.0 (0.35")	114.3 (4.5")
093EVT114114S	①	Black	38.1 (1.5")	114.3 (4.5")	6.35 (0.25")	114 / 114 - 4.48" / 4.48"	38.0 (1.49")	Powder coated	9.0 (0.35")	114.3 (4.5")
093EVT7676	②		25.4 (1")	76.2 (3")	4.8 (0.19")	76.2 / 76.2 - 3" / 3"	25.4 (1")	Anodized	7.0 (0.27")	76.2 (3")

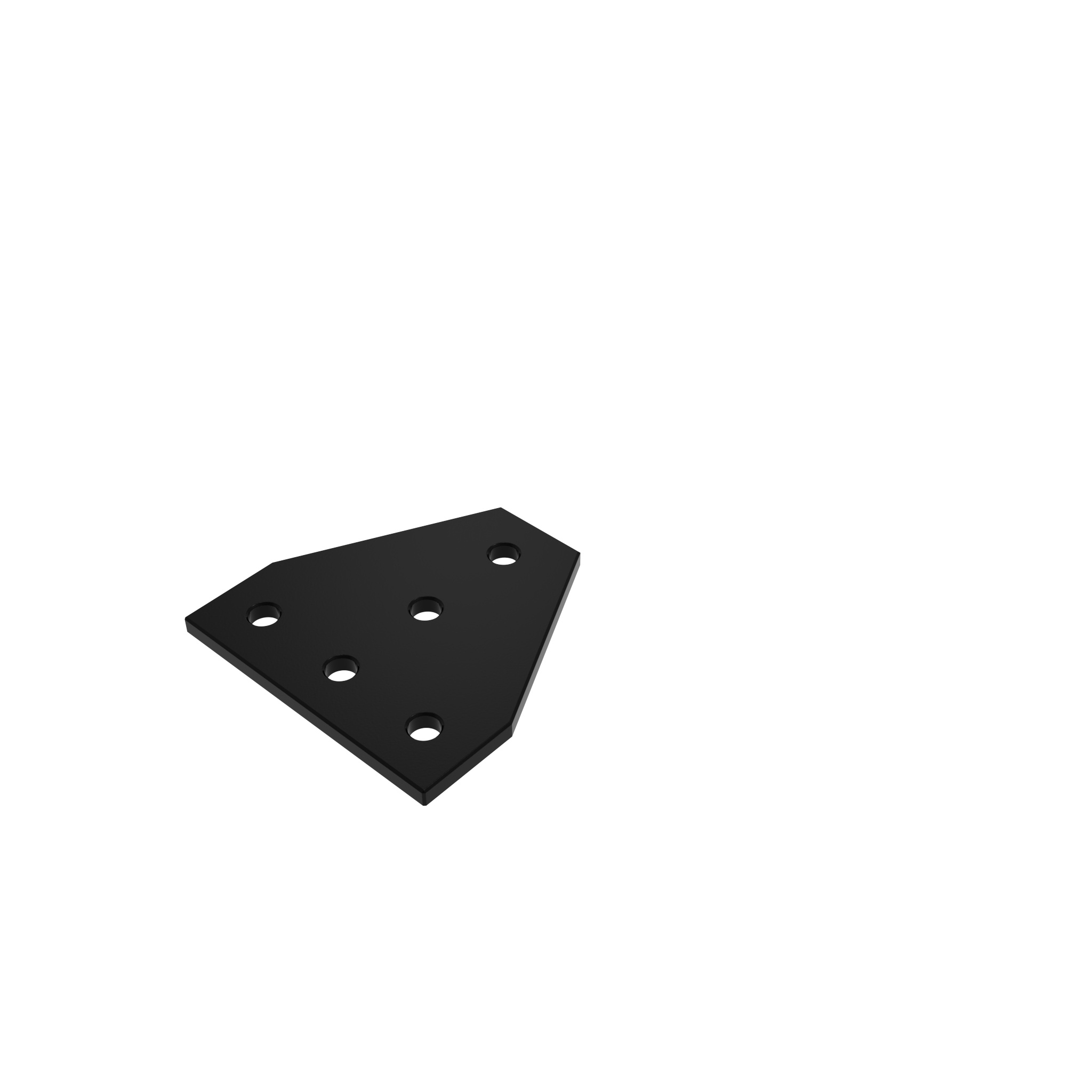

093EVT7676S	①	Black	25.4 (1")	76.2 (3")	4.8 (0.19")	76.2 / 76.2 - 3" / 3"	25.4 (1")	Powder coated	7.0 (0.27")	76.2 (3")

Certificates

RoHS Certificate

REACH Certificate

POP Certificate

Conflict Minerals Certificate
