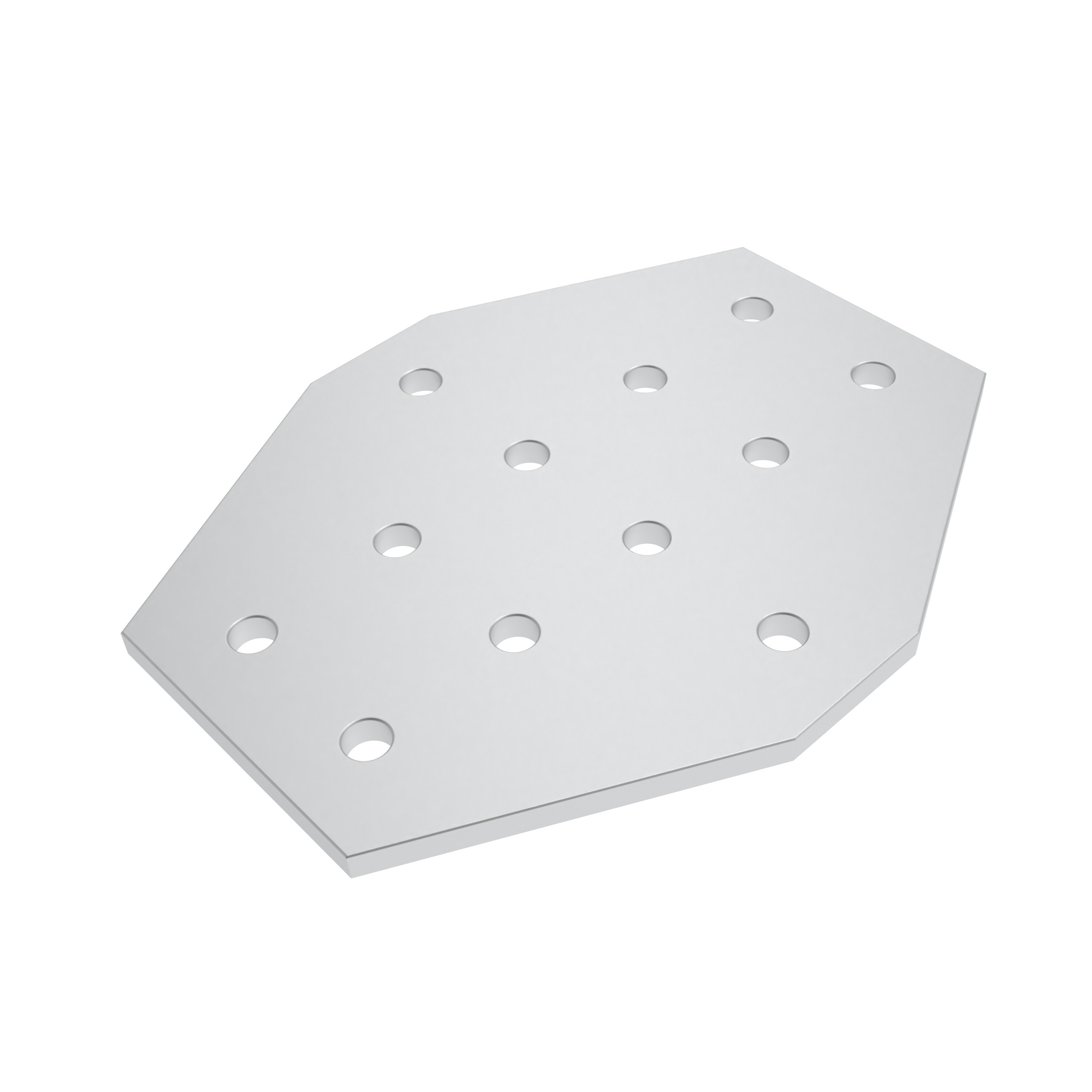

ECO Connection Plate AL X 12 Hole, 1 Slot x 2 Slots Version

Product information "ECO Connection Plate AL X 12 Hole, 1 Slot x 2 Slots Version"

Delivery Countries:
North America

Description:

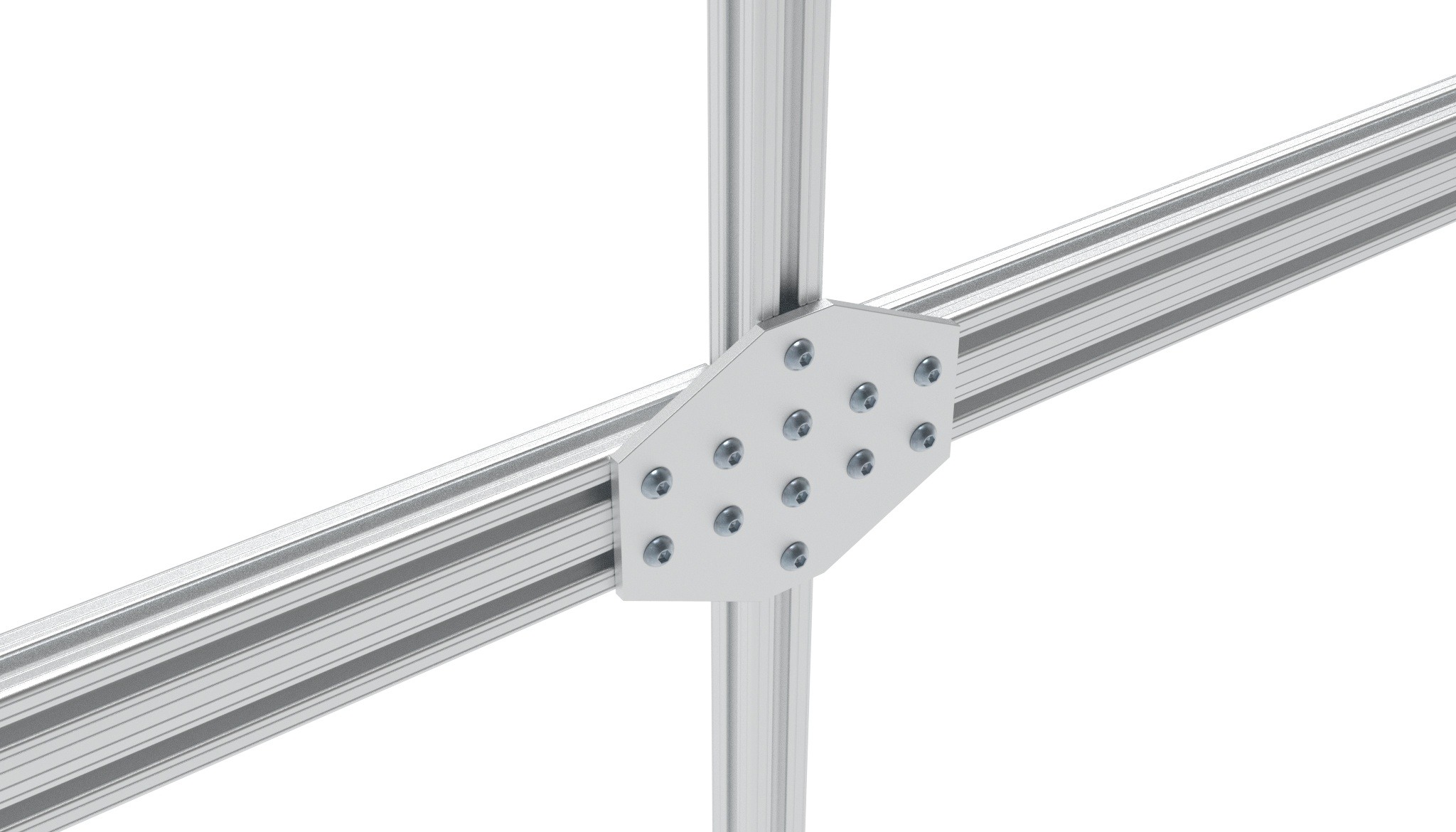

To connect two aluminum profiles

Material:
Aluminum

Surface:
Anodized

Tip:
Compatible ECO T-nut see 096E20M5S05 et sq.

Zolltarifnummer:
76169990990

Model:	Aluminum
Pack Quantity:	10 pieces
Weight (g):	120.0

Variants

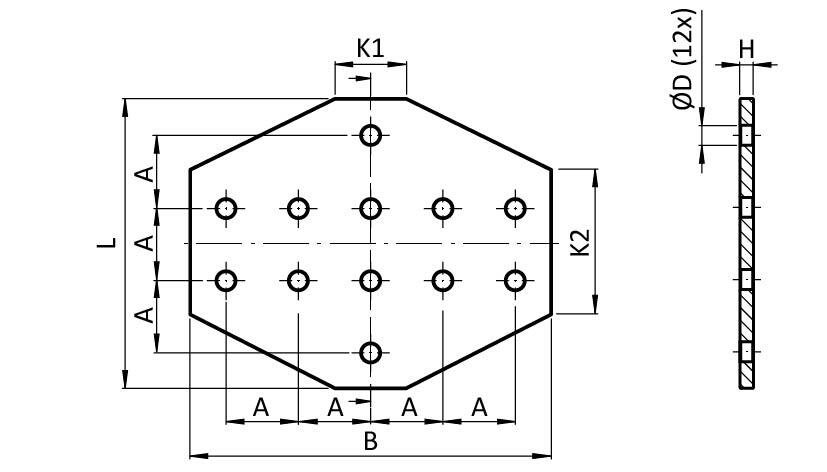

Product ID	A (mm)	H (mm)	K (mm)	L (mm)	ØD (mm)	Version	B (mm)
093EVX102127	25.4 (1")	4.8 (0.19")	25.0 (0.98")	101.6 (4")	6.9 (0.27")	101.6 / 127 - 4" / 5"	127 (5")
093EVX152190	38.1 (1.5")	6.35 (0.25")	76.2 (3")	152.4 (6")	8.89 (0.35")	152.4 / 190.5 - 6" / 7.5"	190.5 (7.5")
