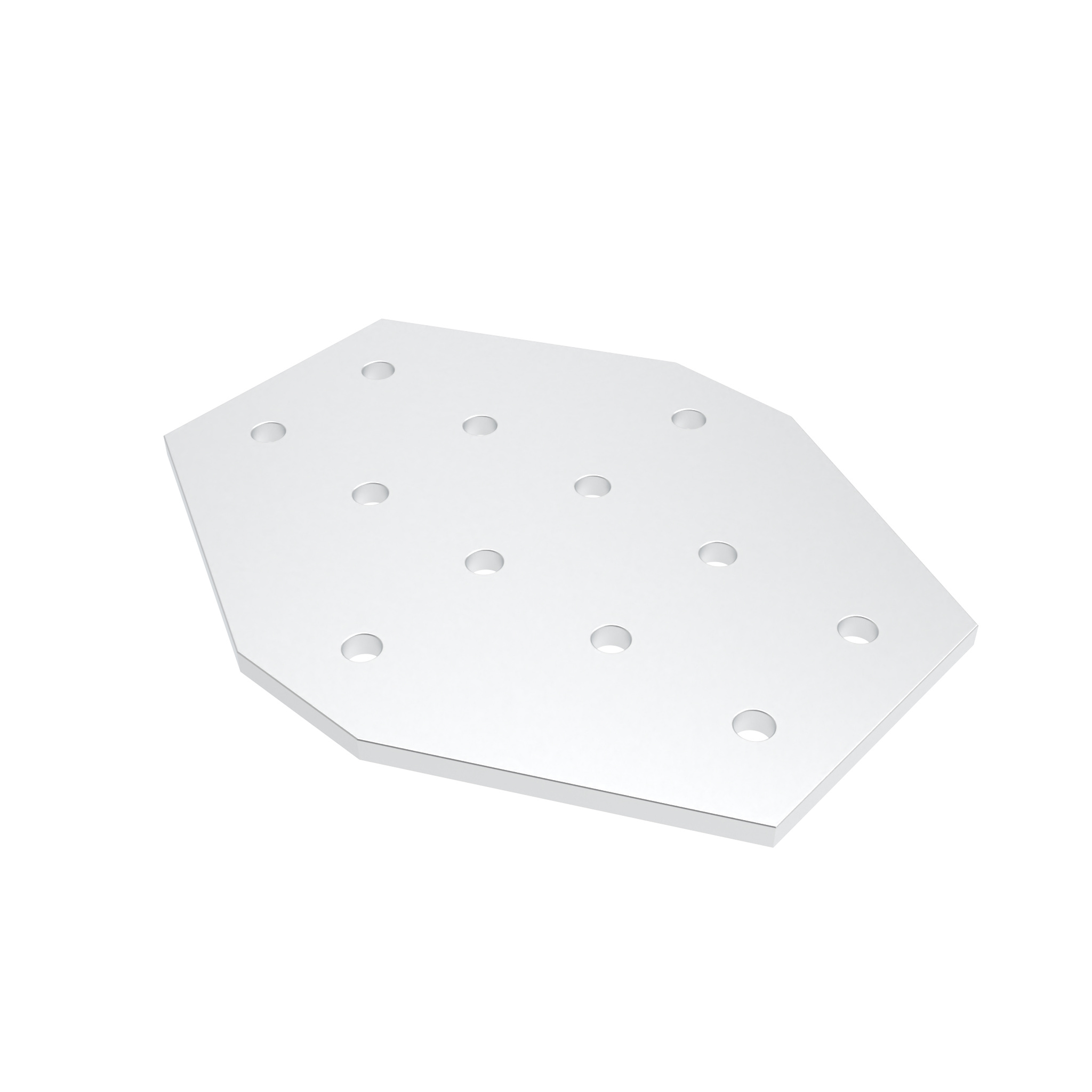

ECO Connection Plate AL X 12 Hole, 1 Slot x 2 Slots Version

Description:
To connect two aluminum profiles

Material:
Aluminum

Surface:
Anodized

Delivery Countries:
North America

Pack Quantity:	10 pieces
Model:	Aluminum
Weight (g):	305.0
ERP Number:	150599

Variants

Part #	Version	H (mm)	A (mm)	B (mm)	L (mm)	ØD (mm)	K (mm)	CAD
093EVX102127	101.6 / 127 - 4" / 5"	4.8 (0.19")	25.4 (1")	127 (5")	101.6 (4")	6.9 (0.27")	25.0 (0.98")
093EVX152190	152.4 / 190.5 - 6" / 7.5"	6.35 (0.25")	38.1 (1.5")	190.5 (7.5")	152.4 (6")	8.89 (0.35")	76.2 (3")

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 76169990990
Customs Tariff Number Export: 76169990

Certificates

RoHS Certificate

REACH Certificate

POP Certificate

Conflict Minerals Certificate

Tags

Product Feature	Fractional
Profile Form	T-slot Profiles
Application Area	Machinery & Plant Engineering
