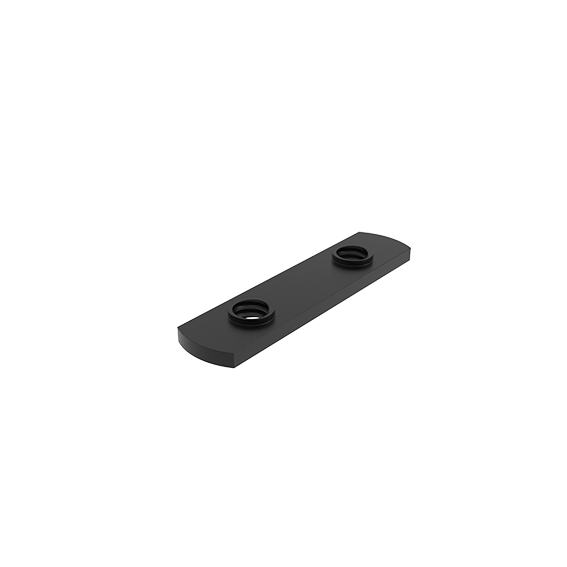

ECO Double T-nut

Description:
To fasten components to profiles

Material:
Steel

Surface:
Zinc plated

Color:
Black

Delivery Countries:
North America

Variants

Part #	Material	H (mm)	A (mm)	B (mm)	L (mm)	h (mm)	M	Slot N (mm)	Modular Dimension (mm)
096E20M5S04	Steel	3.0	20.0	8.0	35.0	1.0	M5	5	20
096E30M6S02R01	Steel	4.5	30.0	15.0	50.0	1.5	M6	6	30
096E40M8S04	Steel	5.0	40.0	16.0	75.0	1.5	M8	8	40
096E45M8S04	Steel	5.5	45.0	18.0	80.0	1.5	M8	10	45
096E10U1/4-20S01	Steel	3.4 (0.13")	25.4 (1")	11.0 (0.43")	47.5 (1.87")	1.0 (0.03")	1/4-20 UNC	6.5 (0.256")	25.4 (1")
096E15U5/16-18S01	Steel	5.0 (0.19")	38.1 (1.5")	16.0 (0.62")	71.4 (2.81")	1.5 (0.05")	5/16-18 UNC	8	38.1 (1.5")
