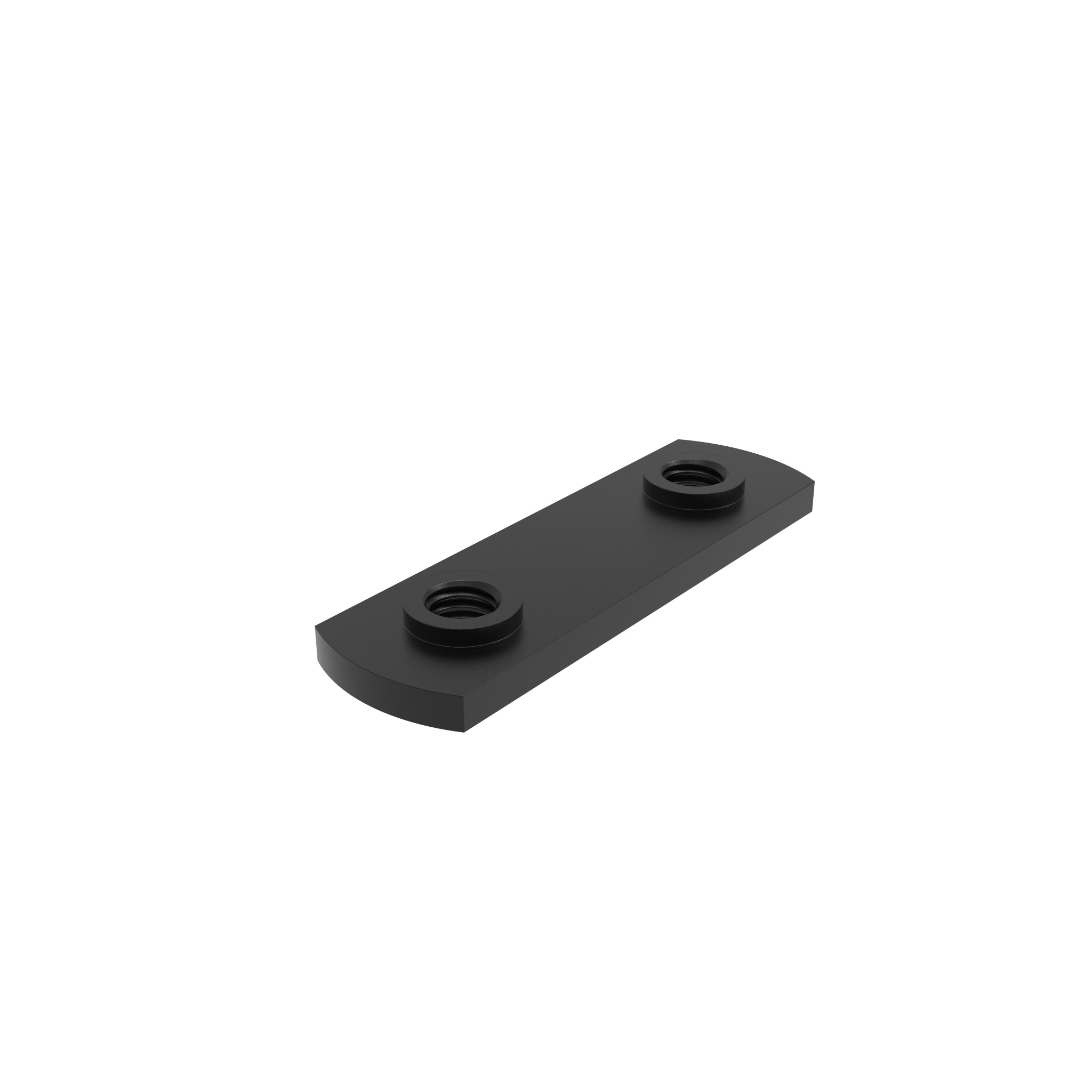

ECO Double T-nut

Product information "ECO Double T-nut"

Color:
Black

Delivery Countries:
North America

Description:

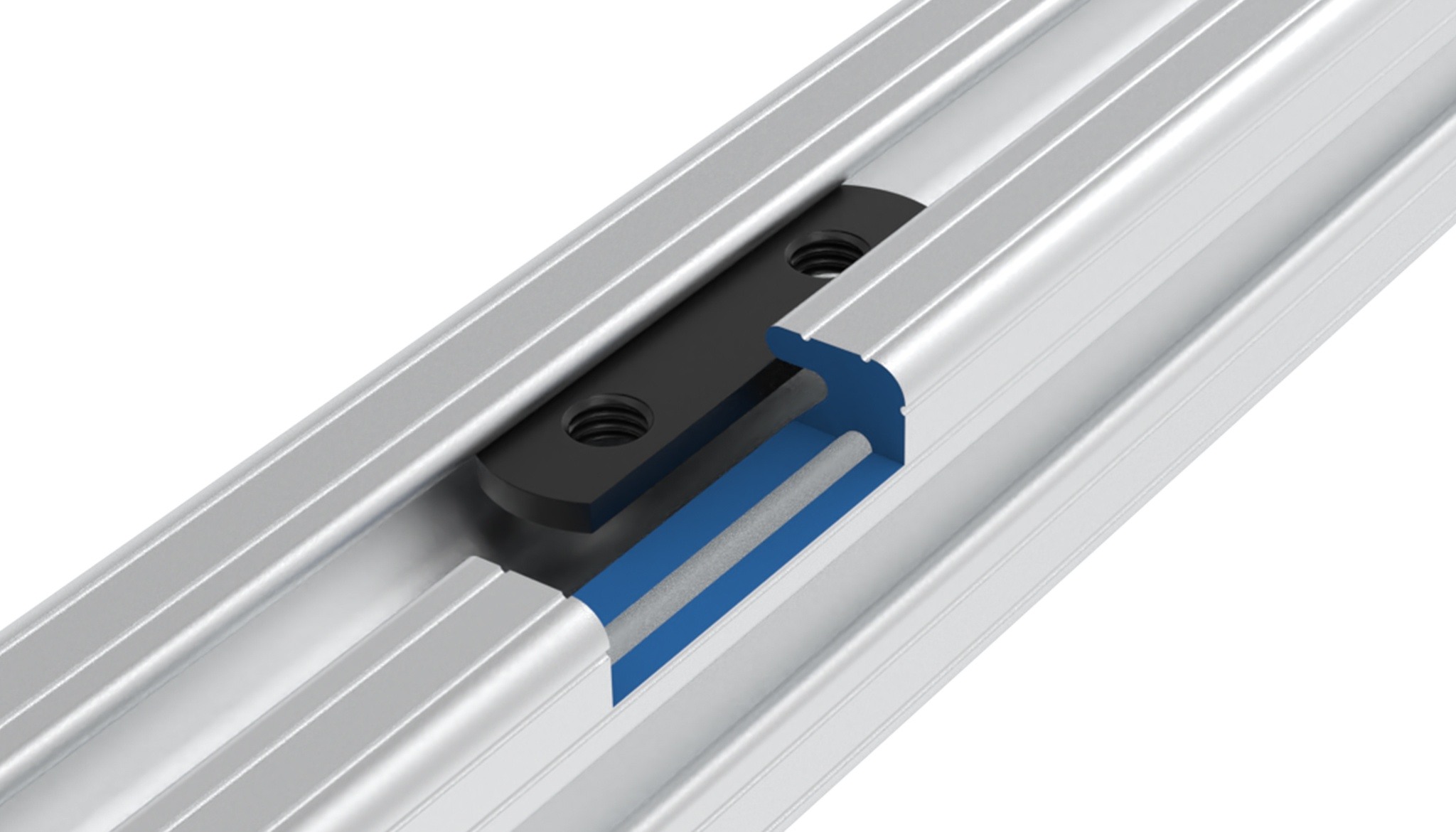

To fasten components to profiles

Material:
Steel

Surface:
Zinc plated

Tip:
Compatible ECO Connection Plate AL see 093EVA2551S et sq.
Model: Steel
Pack Quantity: 100 pieces
Pack Quantity (1): 10
Weight (g): 17.0

Variants

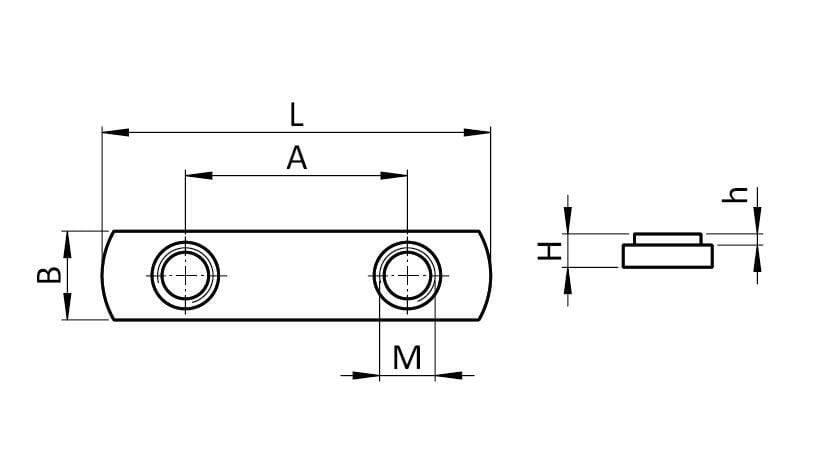

Product ID Material A (mm) Slot N (mm) B (mm) M H (mm) L (mm) h (mm) Grid
096E10U1/4-20S01 Steel 25.4 (1") 6.5 (0.256") 11.0 (0.43") 1/4-20 UNC 3.4 (0.13") 47.5 (1.87") 1.0 (0.03") 25.4 (1")
096E15U5/16-18S01 Steel 38.1 (1.5") 8 16.0 (0.62") 5/16-18 UNC 5.0 (0.19") 71.4 (2.81") 1.5 (0.05") 38.1 (1.5")
096E20M5S04 Steel 20.0 5 8.0 M5 3.0 35.0 1.0 20
096E30M6S02R01 Steel 30.0 6 15.0 M6 4.5 50.0 1.5 30
096E40M8S04 Steel 40.0 8 16.0 M8 5.0 75.0 1.5 40
096E45M8S04 Steel 45.0 10 18.0 M8 5.5 80.0 1.5 45
