End Plate AL

Product information "End Plate AL"

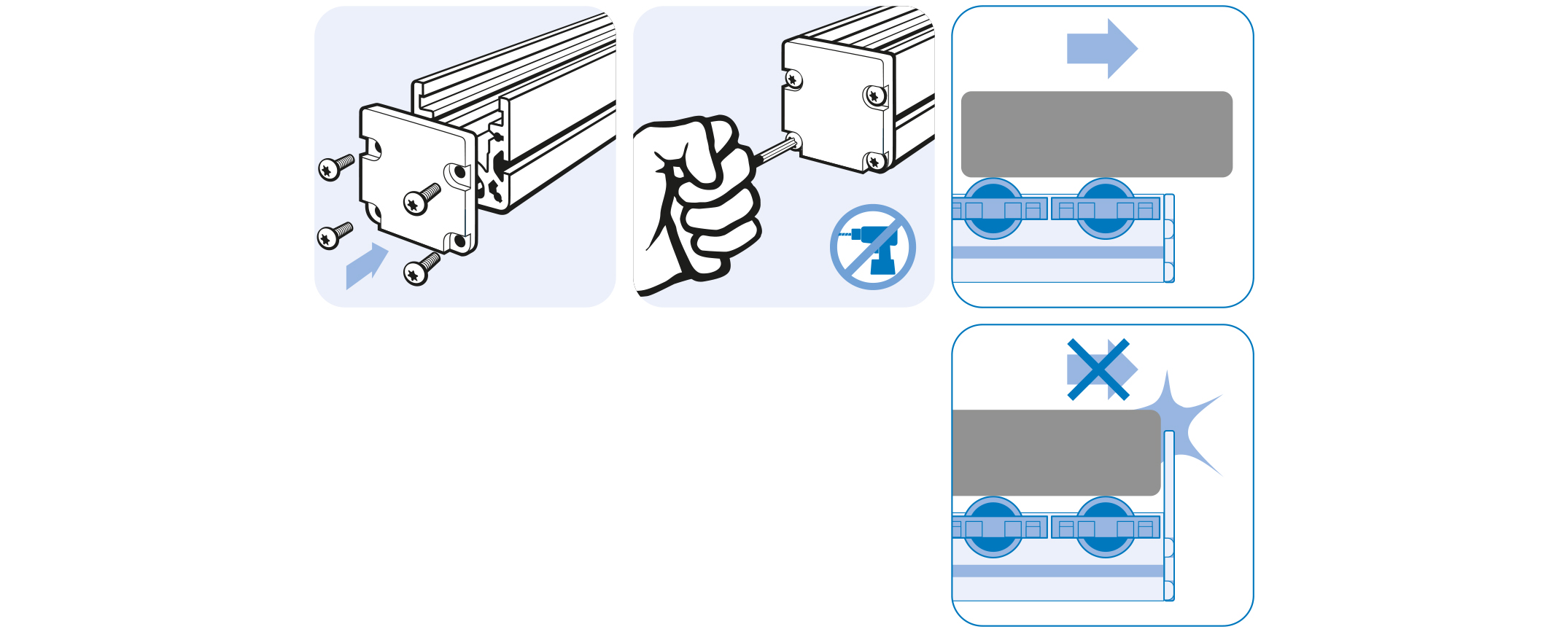

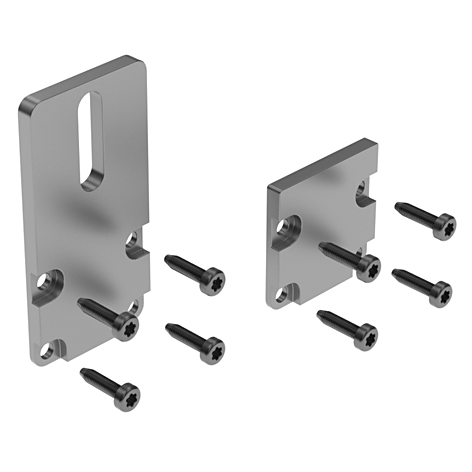

Assembly Set:
4 self-drilling screws DIN 7504 Form N - 3.9 x 16

Delivery Countries:
Worldwide

Description:

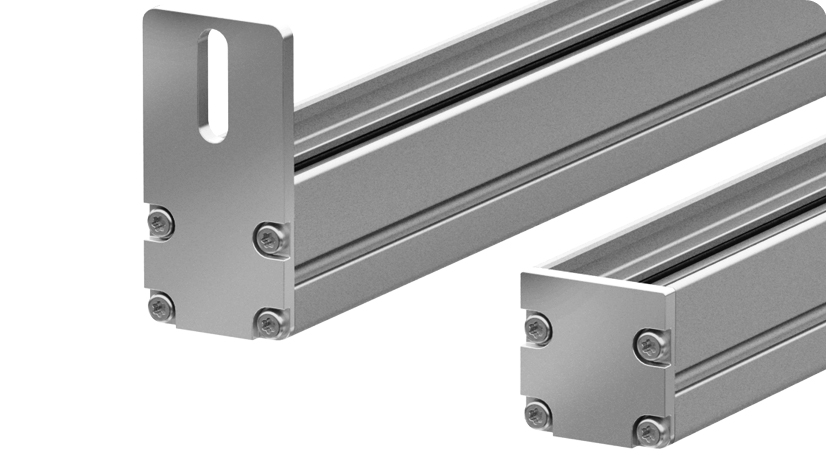

To close the end face of AL roller track profiles, preventig inserts from slipping out, additionally the long version has an end stop (optionally, a buffer stop can be added)

Material:
Steel

Specials:
Other surfaces, other colors on request

Surface:
Zinc plated

Tip:

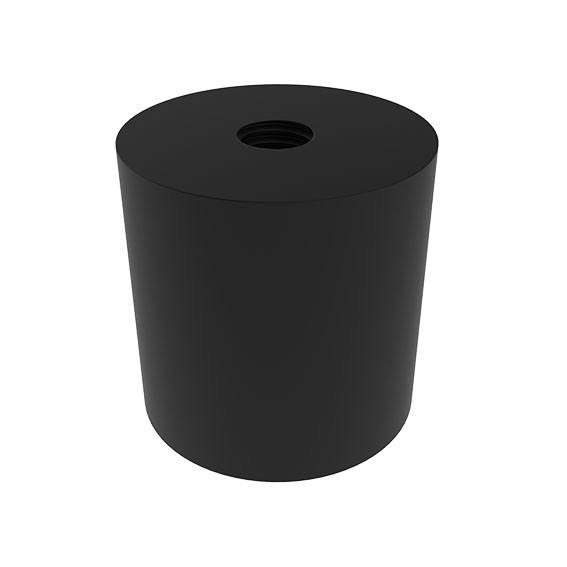

Compatible Buffer Stop see 051DC553030FM08;

Zolltarifnummer:
73259990900
(ECLASS 6.0): 36120490
(ECLASS 7.0): 36120490
(ECLASS 8.0): 36120490
(ECLASS 9.0): 36120490
(ECLASS 10.0): 36120490
(ECLASS 11.0): 36120492
(ECLASS 12.0): 36120492
(ECLASS 13.0): 36120492
Model: For roller tracks AL
Pack Quantity: 10 pieces / 10 set
Weight (g): 63.0

Variants

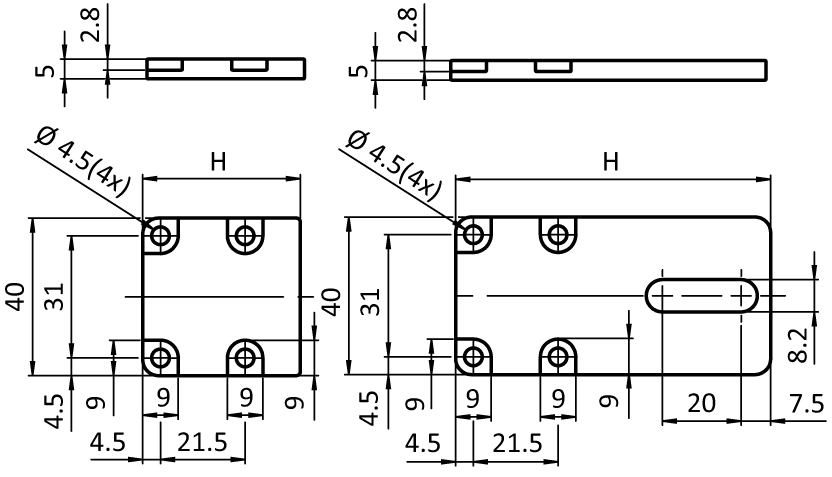

Product ID H (mm) Version
062AT4040 40 Without end stop

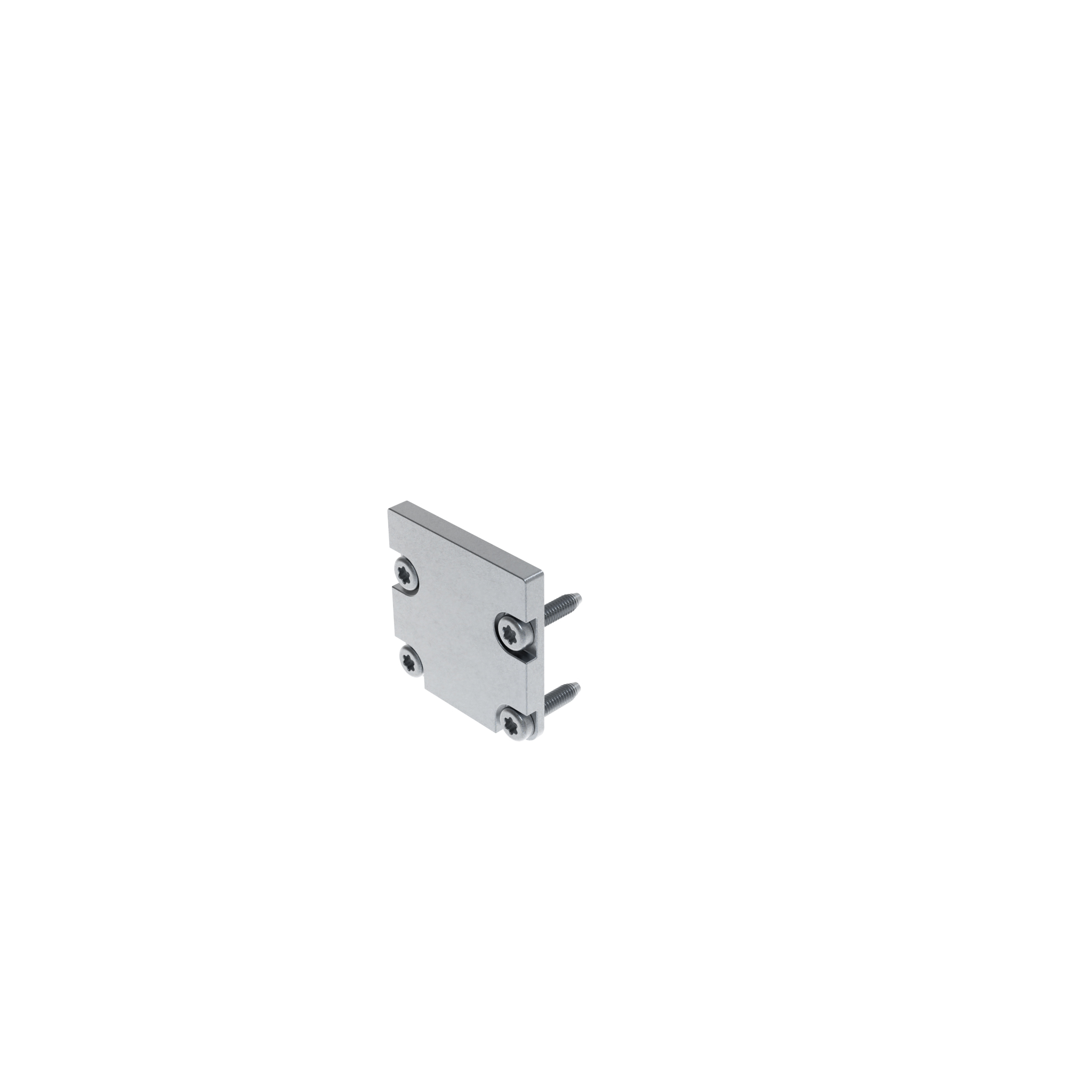

062AT4040S01 40 Without end stop, with assembly set
062ATS4080 80 With end stop
062ATS4080S01 80 With end stop, with assembly set
