Extended Base 80 ZN for Swivel Feet, Ball Joint 15

Product information "Extended Base 80 ZN for Swivel Feet, Ball Joint 15"

Color:
Black

Delivery Countries:
Worldwide

Description:
Extended swiveling leveling foot which can be fixed to the floor

Material:
Zinc die-cast

Specials:
Other surfaces, other sizes, other colors, screwed or glued anti-slip plate on request;
As factory assembled leveling foot on request

Surface:
Powder coated

Tip:
Compatible Threaded Rod see 098DM08025M et sq.,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-Slip Plate see 098DG030

Zolltarifnummer:
79070000900
Model: Zinc die-cast
Pack Quantity: 10 pieces
Pack Quantity (1): 1
Weight (g): 399.0

Variants

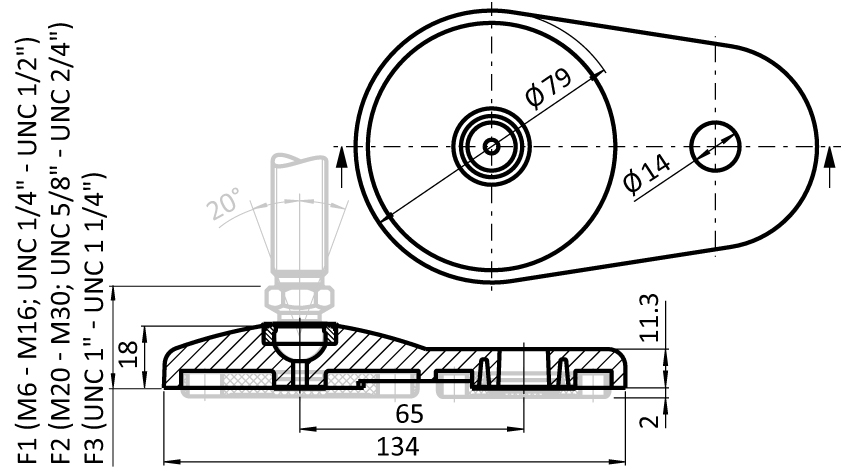

Product ID F3 (mm) F2 (mm) Fmax (N) Base F1 (mm) Version
098DA080ZS 33.5 32.5 29400 80 29.5 without anti-slip plate
098DA080ZSG 33.5 32.5 29400 80 29.5 with anti-slip plate
