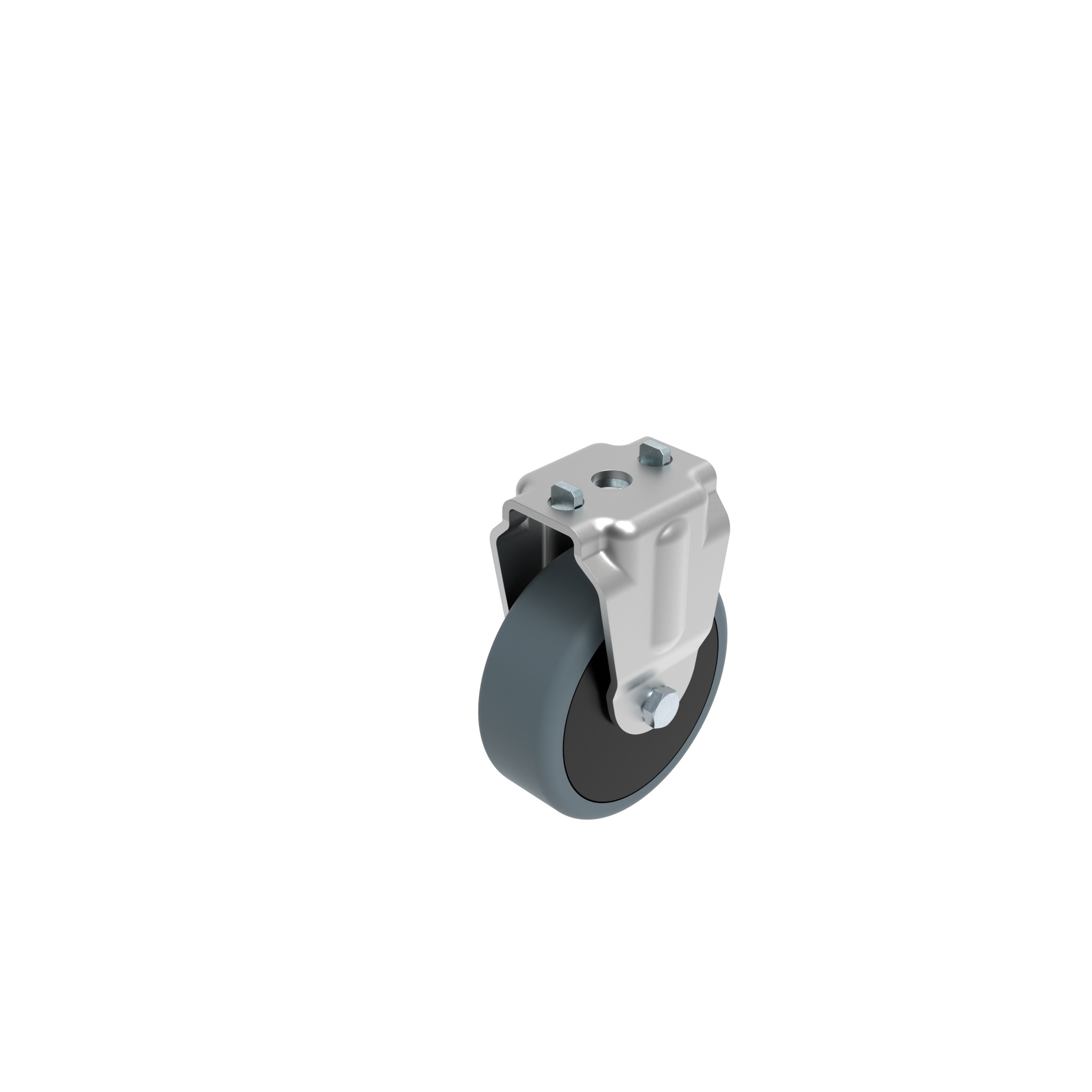

Fixed Caster Ø 75
Regular price:
€0.00
Part #:
098F075TNESD
Pack Quantity:
1 piece
Product information "Fixed Caster Ø 75"
Color:
Housing: Alu color
Tread: See table
Wheel body: Gray
Delivery Countries:
Worldwide
Description:
Reliable and quiet swivel caster, trackless, with thread guard; can be directly fixed to aluminum profiles, with optional locating pin slot 8 secured against rotation
Fastening:
For end face mounting, a suitable thread must be cut into the core hole
Material:
Housing: Steel
Tread: See table
Wheel body: See table
Locating pin: Steel
Specials:
Other kinds of wheels, other colors, other surfaces on request
Surface:
Housing: Powder coated
Locating pin: Zinc plated
Housing: Alu color
Tread: See table
Wheel body: Gray
Delivery Countries:
Worldwide
Description:
Reliable and quiet swivel caster, trackless, with thread guard; can be directly fixed to aluminum profiles, with optional locating pin slot 8 secured against rotation
Fastening:
For end face mounting, a suitable thread must be cut into the core hole
Material:
Housing: Steel
Tread: See table
Wheel body: See table
Locating pin: Steel
Specials:
Other kinds of wheels, other colors, other surfaces on request
Surface:
Housing: Powder coated
Locating pin: Zinc plated
| Pack Quantity: | 1 piece |
|---|---|
| Model: | With bolt hole pattern and separate locating pin for slot 8 |
| Weight (g): | 273.0 |
| ECLASS 6.0: | 23370202 |
| ECLASS 7.0: | 23370202 |
| ECLASS 8.0: | 23370202 |
| ECLASS 9.0: | 23370202 |
| ECLASS 10.0: | 23370202 |
| ECLASS 11.0: | 23370202 |
| ECLASS 12.0: | 23370202 |
| ECLASS 13.0: | 23370202 |
| Zolltarifnummer: | 73269098900 |
| Customs Tariff Number Export: | 73269098 |
| ERP Number: | 149224 |
