Floor Bracket ZN 160

Product information "Floor Bracket ZN 160"

Assembly Set:
1 T-slot nut - Nut 8 - M8,
1 screw DIN EN ISO 7380 (DIN 34805) - M8 x 80

Color:
Black, alu color, -

Delivery Countries:
Worldwide

Description:

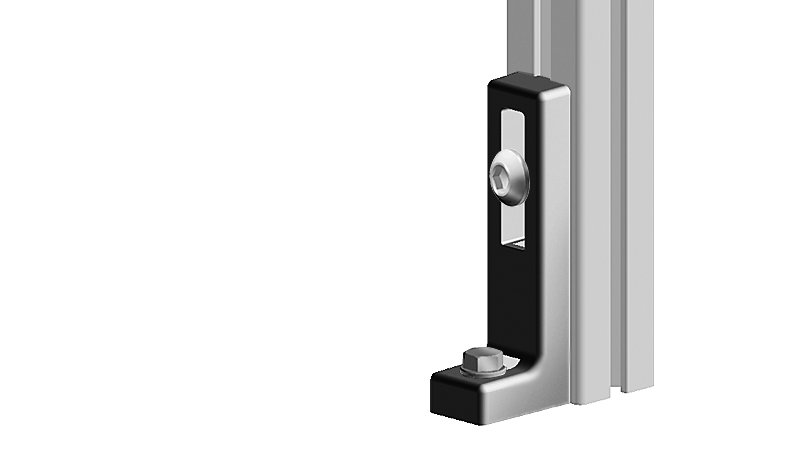

To securely fix aluminum profiles to the floor

Material:
Floor bracket: Zinc die-cast
Assembly set: Steel

Specials:
Other surfaces, other colors on request

Surface:
Floor bracket: Plain / powder coated
Assembly set: Zinc plated

Pack Quantity:	1 piece
Model:	Zinc die-cast, profile 40 and up
Weight (g):	110.0
ERP Number:	100566

Variants

Part #	Fig.	Assembly Set	Surface	Color	Slot N (mm)	Pack Quantity
093B1601N08R	①	-	Plain	-	8	1 piece
093B1601N10R	①	-	Plain	-	10	1 piece
093B1601N08S	②	-	Powder coated	Black	8	10 pieces
093B1601N10S	②	-	Powder coated	Black	10	10 pieces
093B1601N08A	③	-	Powder coated	Alu color	8	10 pieces
093B1601N08SS05	②	incl. assembly set	Powder coated	Black	8	1 piece
