Floor Bracket ZN 160

Product information "Floor Bracket ZN 160"

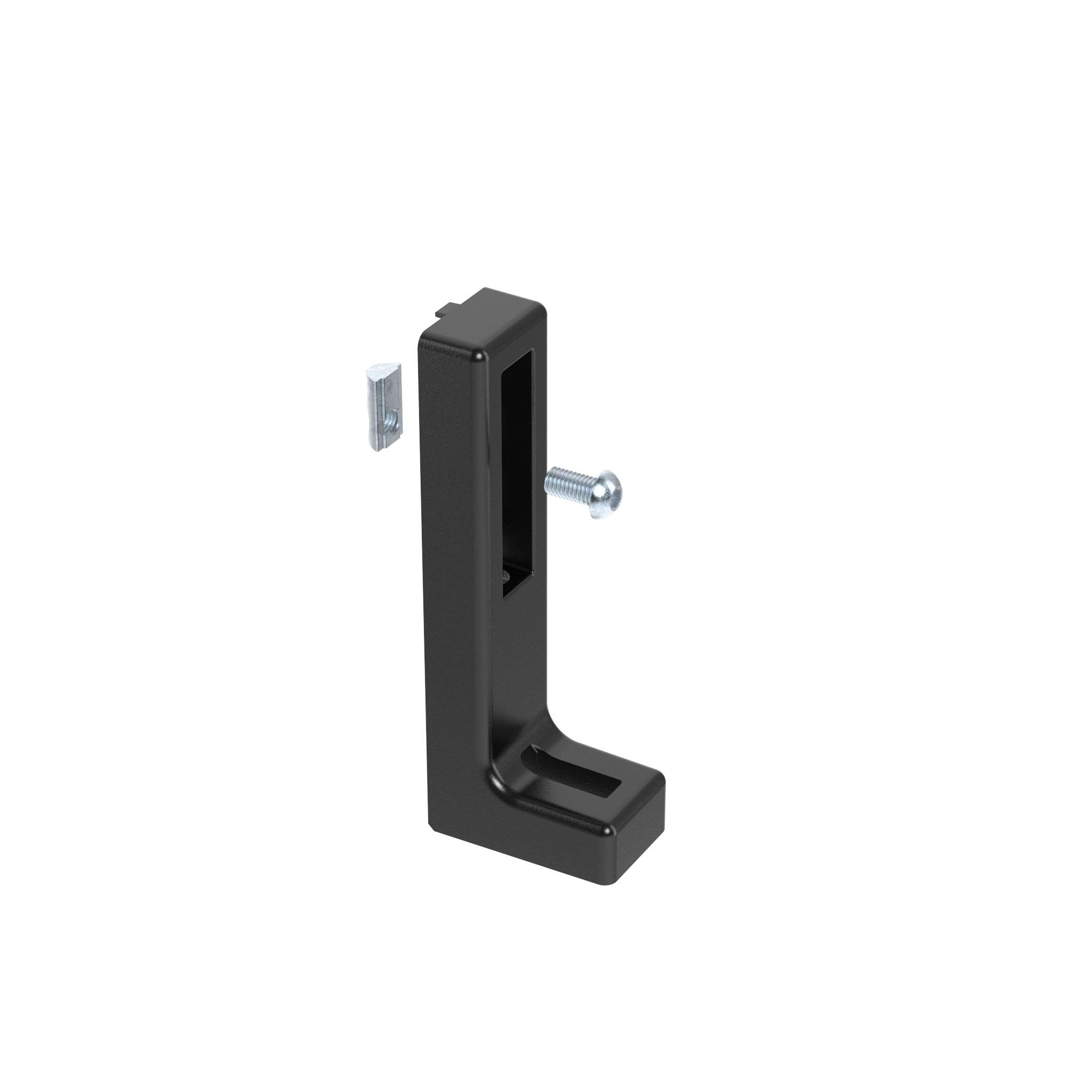

Assembly Set:
1 floor bracket 160,
1 T-slot nut - Nut 8 - M8,
1 screw ISO 7380 - M8 x 80

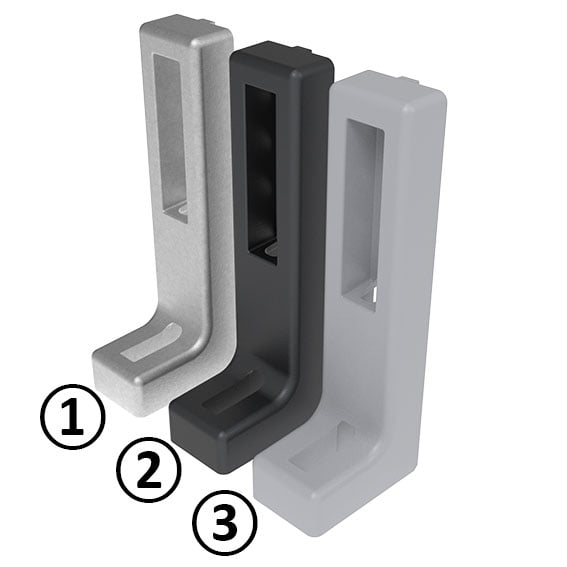

Color:
Black, alu color, -

Delivery Countries:
Worldwide

Description:

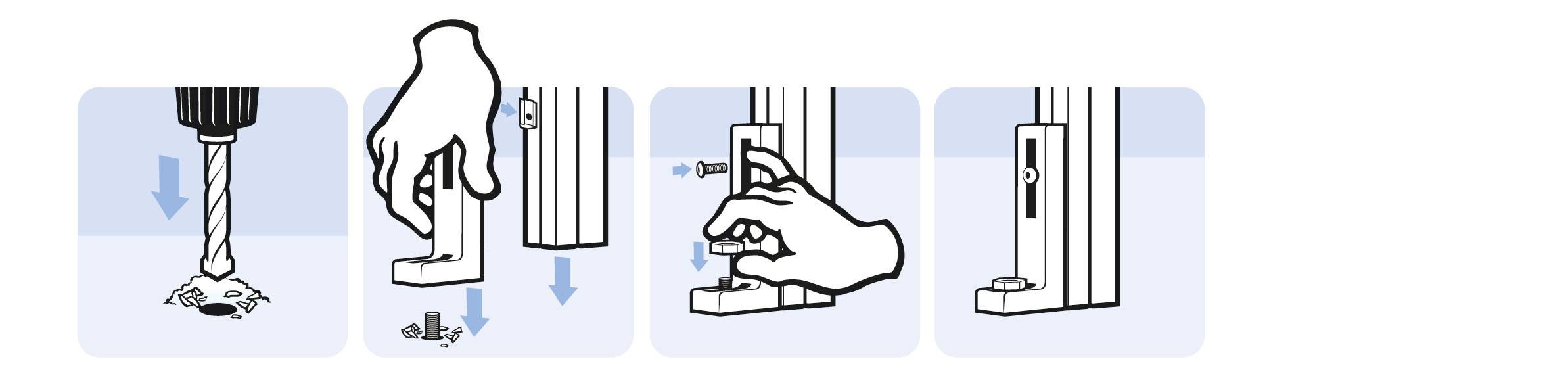

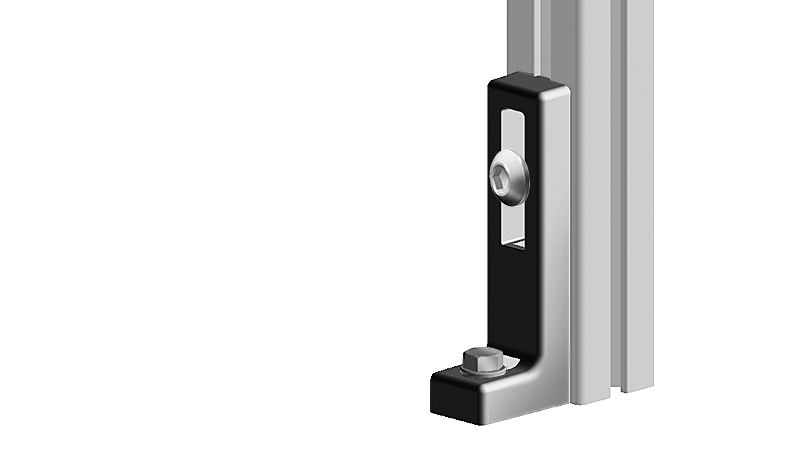

To securely fix aluminum profiles to the floor

Material:
Floor bracket: Zinc die-cast
Assembly set: Steel

Specials:
Other surfaces, other colors on request

Surface:
Floor bracket: Plain / powder coated
Assembly set: Zinc plated

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Zinc die-cast, profile 40 and up
Pack Quantity: 10 pieces / 10 set
Pack Quantity (1): 1
Weight (g): 535.0

Variants

Product ID Fig. Color Slot N (mm) Surface
093B1601N08A Alu color 8 Powder coated
093B1601N08R 8 Plain
093B1601N08S Black 8 Powder coated
093B1601N08SS05 Black 8 Powder coated
093B1601N10R 10 Plain
093B1601N10S Black 10 Powder coated
