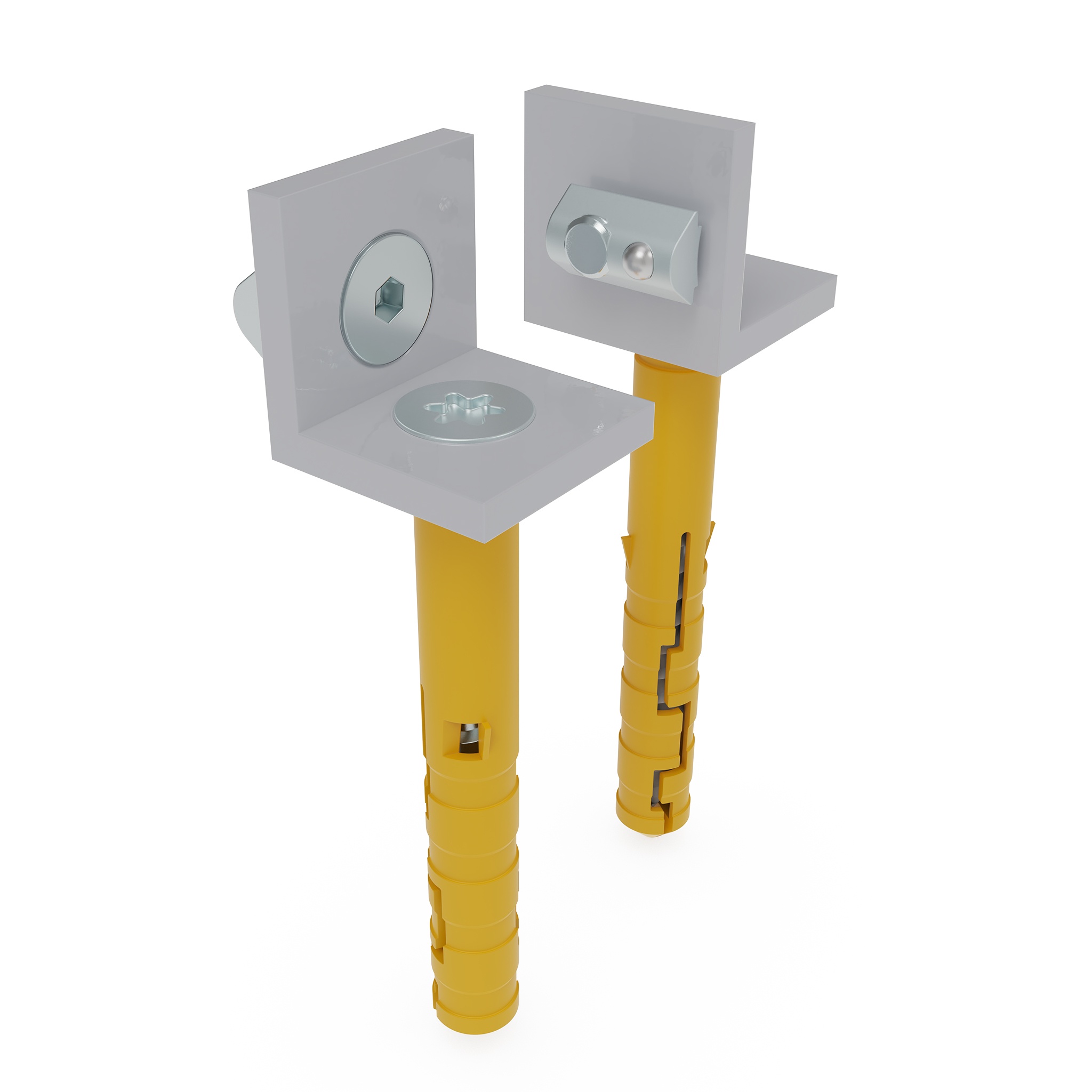

Floor Mounting for Guiding Rail FIFO (Set)

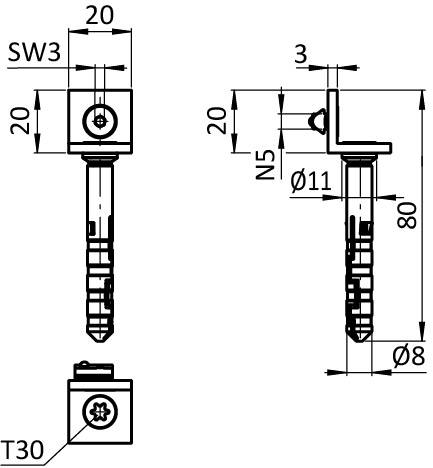

Floor Mounting for Guiding Rail FIFO (Set) – technical drawing

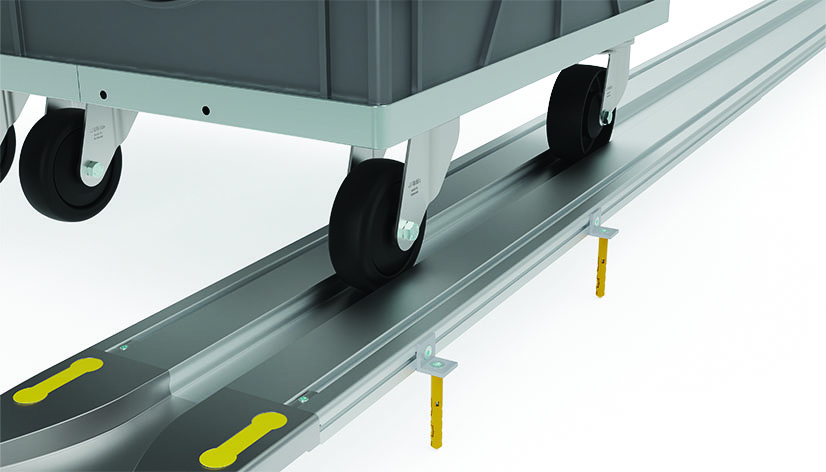

Floor Mounting for Guiding Rail FIFO (Set) – application example

€0.00

Part #: 093WU201AS01

Pack Quantity: 1 piece

Description:
To additionally mount guiding rails FIFO to the floor

Material:
Angle: Steel
Screw: Steel
T-slot nut: Steel
Anchors: Plastic

Surface:
Angle: Powder coated
Screws: Zinc plated
T-slot nuts: Zinc plated

Color:
Angle: Alu color
Anchors: Yellow

Set:
2 steel connection angle 20,
2 screws DIN EN ISO 10642 (DIN 7991) - M5 x 8; 2 T-slot nuts - slot 5 - M5,
2 screws 5 x 60,
2 anchors 8 x 60

Delivery Countries:
Worldwide
