FIFO Stations / Supermarkets

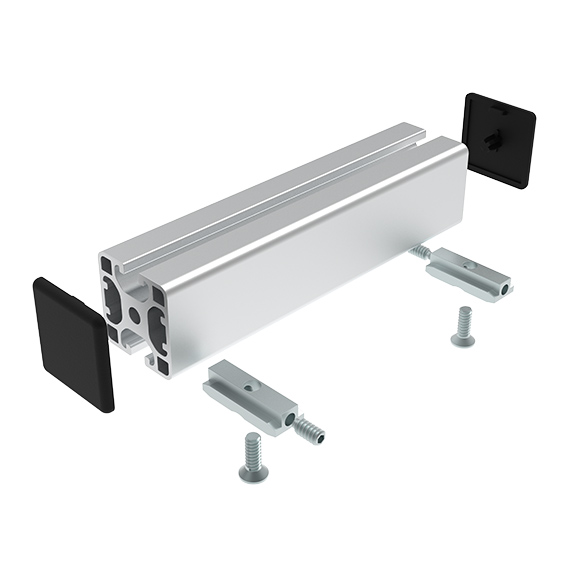

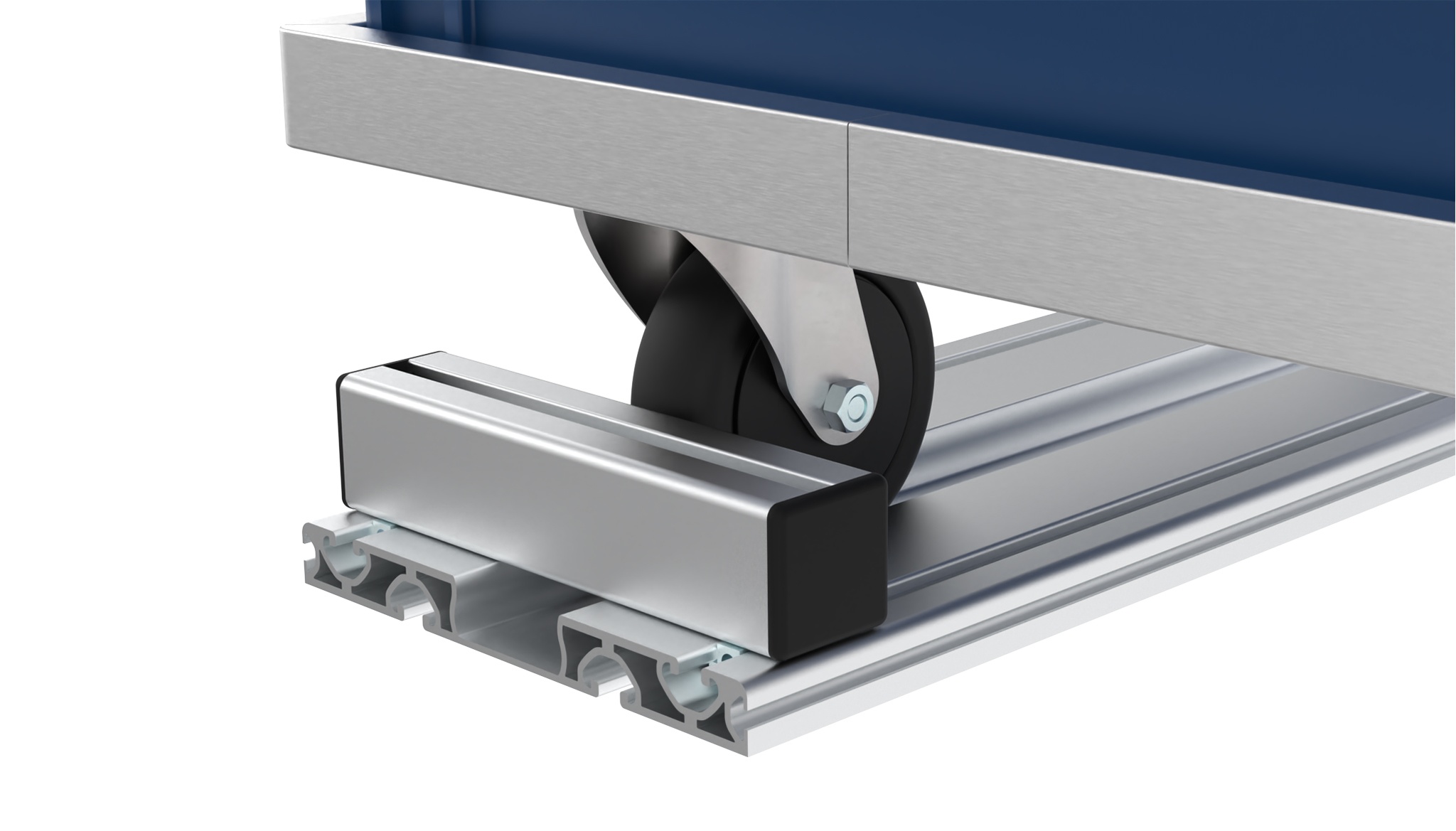

Adjustable Caster End Stop for Guiding Rail FIFO (Set)
Color:Cover caps: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To stop dollies in guiding rails FIFO; Easy installation with enclosed connectorsMaterial:Profile: Aluminum Cover Cap: Plastic PA Connector: SteelSet:1 profile piece 2 cover caps 2 connectorsSurface:Profile: Anodized Connector: Zinc platedTip:Compatible Guiding Rail FIFO see 02082P.1200

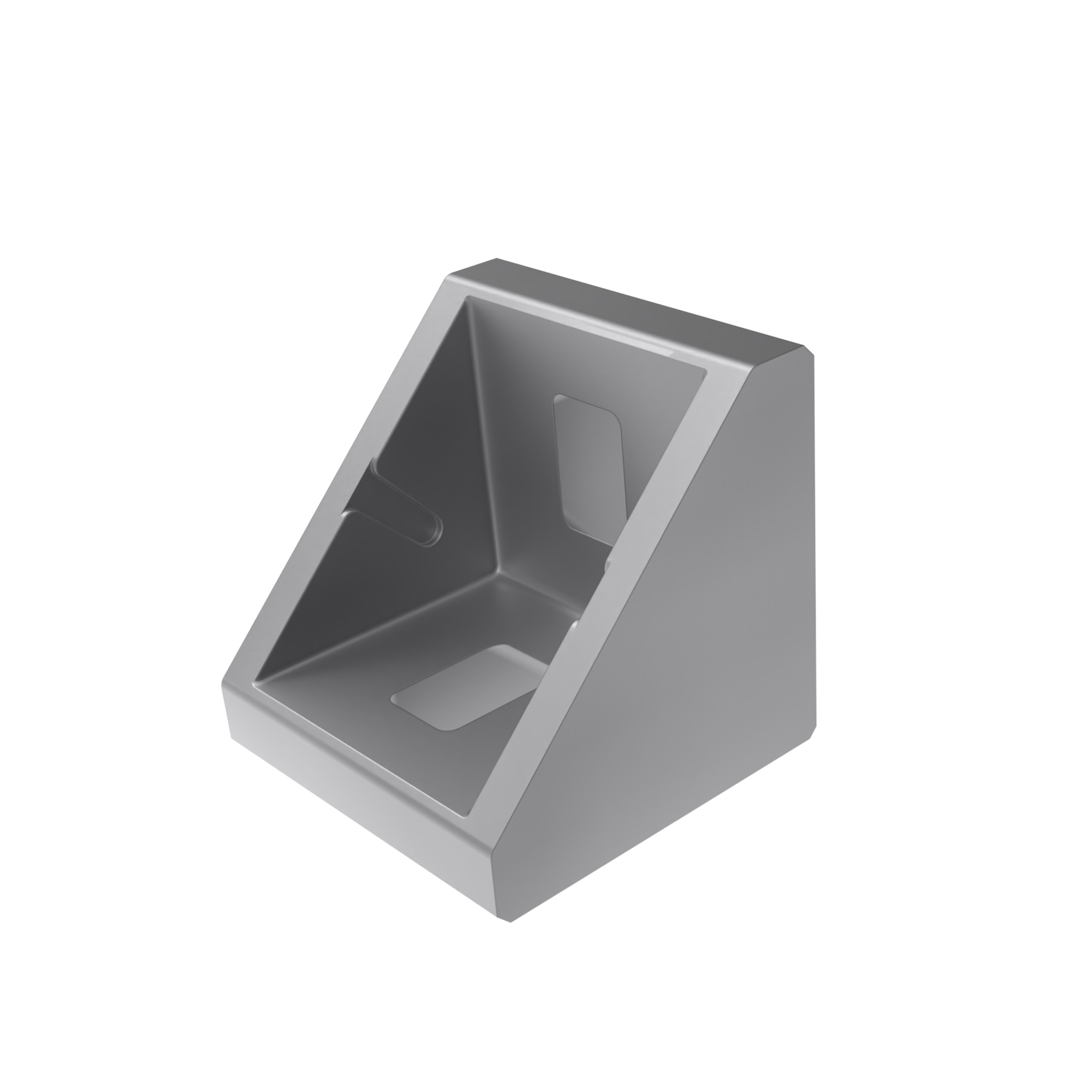

Alu Connection Angle 30
Assembly Set 1:2 hammer nuts - slot 8 - M6, 2 screws DIN 7984 - M6 x 14 Assembly Set 2:1 hammer nut - slot 8 - M6, 1 screw DIN 7984 - M6 x 14, 1 hammer nut - slot 10 - M6, 1 screw DIN 7984 - M6 x 18Assembly Set 3:2 hammer nuts - slot 10 - M6, 2 screws DIN 7984 - M6 x 18Color:Angle: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA303S02

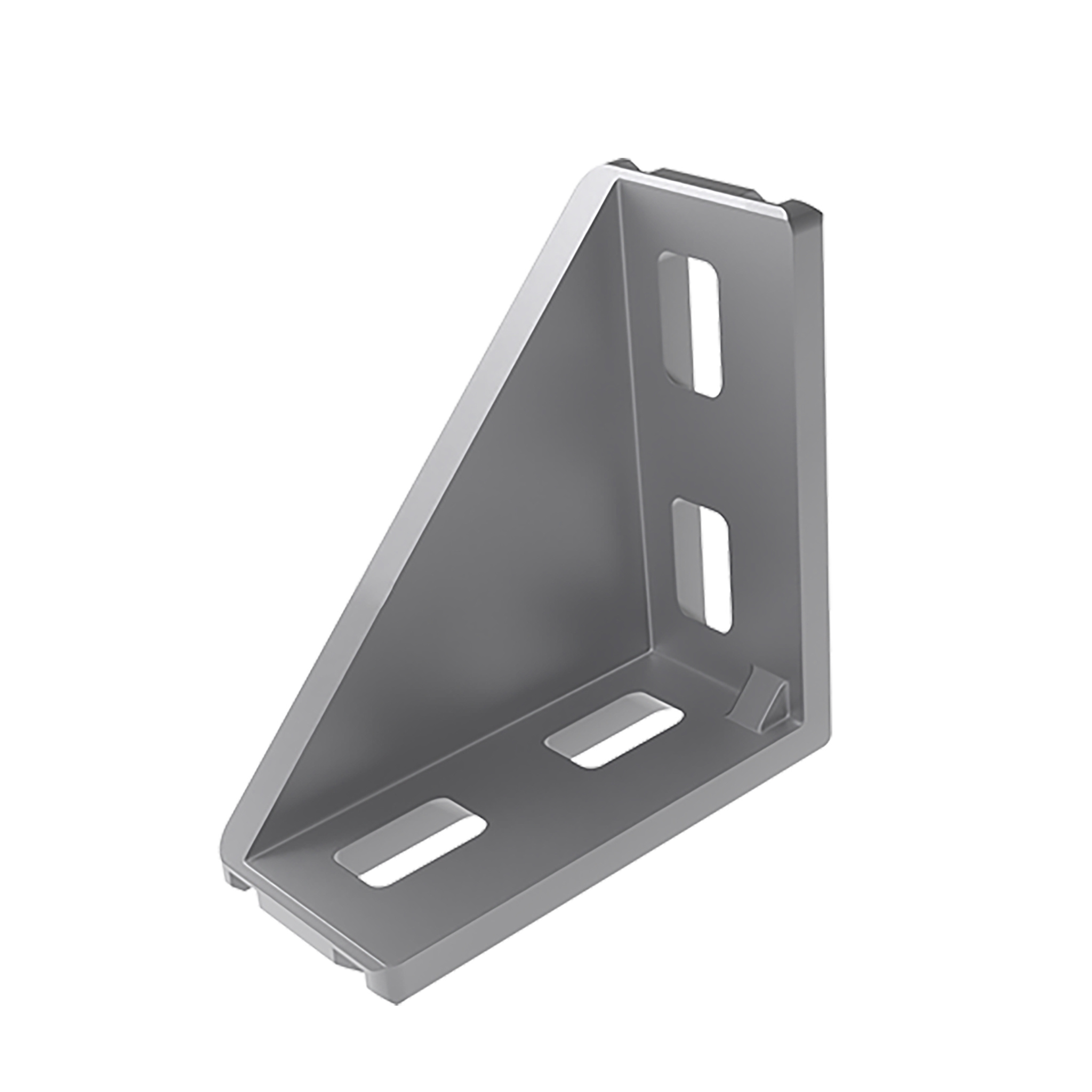

Alu Connection Angle 30 x 60
Assembly Set:4 hammer nuts - slot 8 - M6, 4 screws DIN 7984 - M6 x 14Color:Angle: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA302

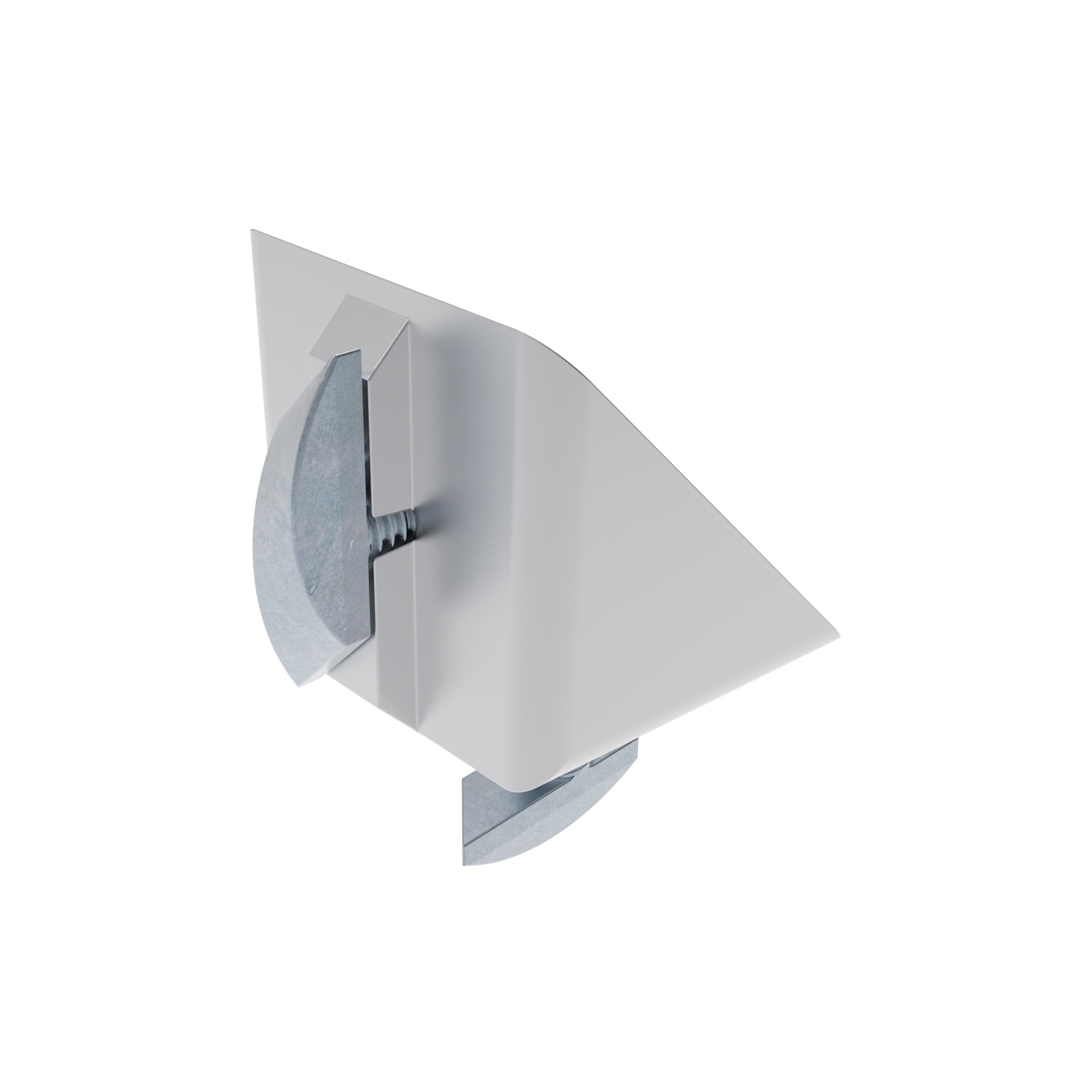

Alu Connection Angle I40 M (Set)
Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedTip:Compatible Cover Cap see 093WA406

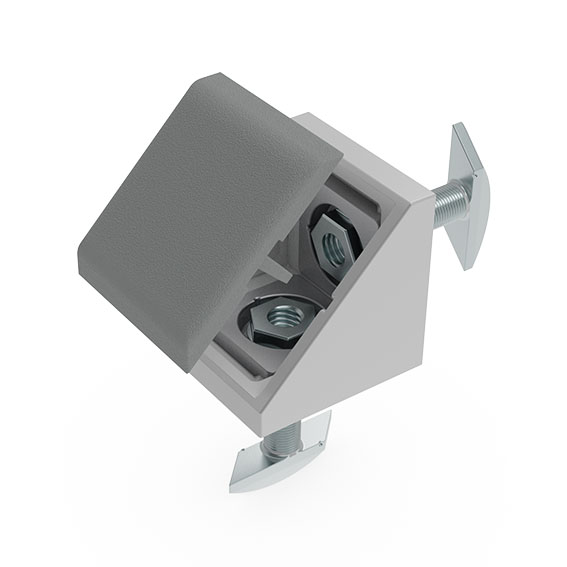

Alu Connection Angle I40 M Length/Cross (Set)
Color:Angle: Alu color Cover cap: Gray≈ RAL 7042 Ring: BlackDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced, Magnet rhombus screws: Steel Countersunk nuts: Steel Insert: Zinc die-cast # Ring: Plastic PESet:1 angle 2 magnet rhombus screws 2 countersunk nuts M8 1 cover capSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc plated

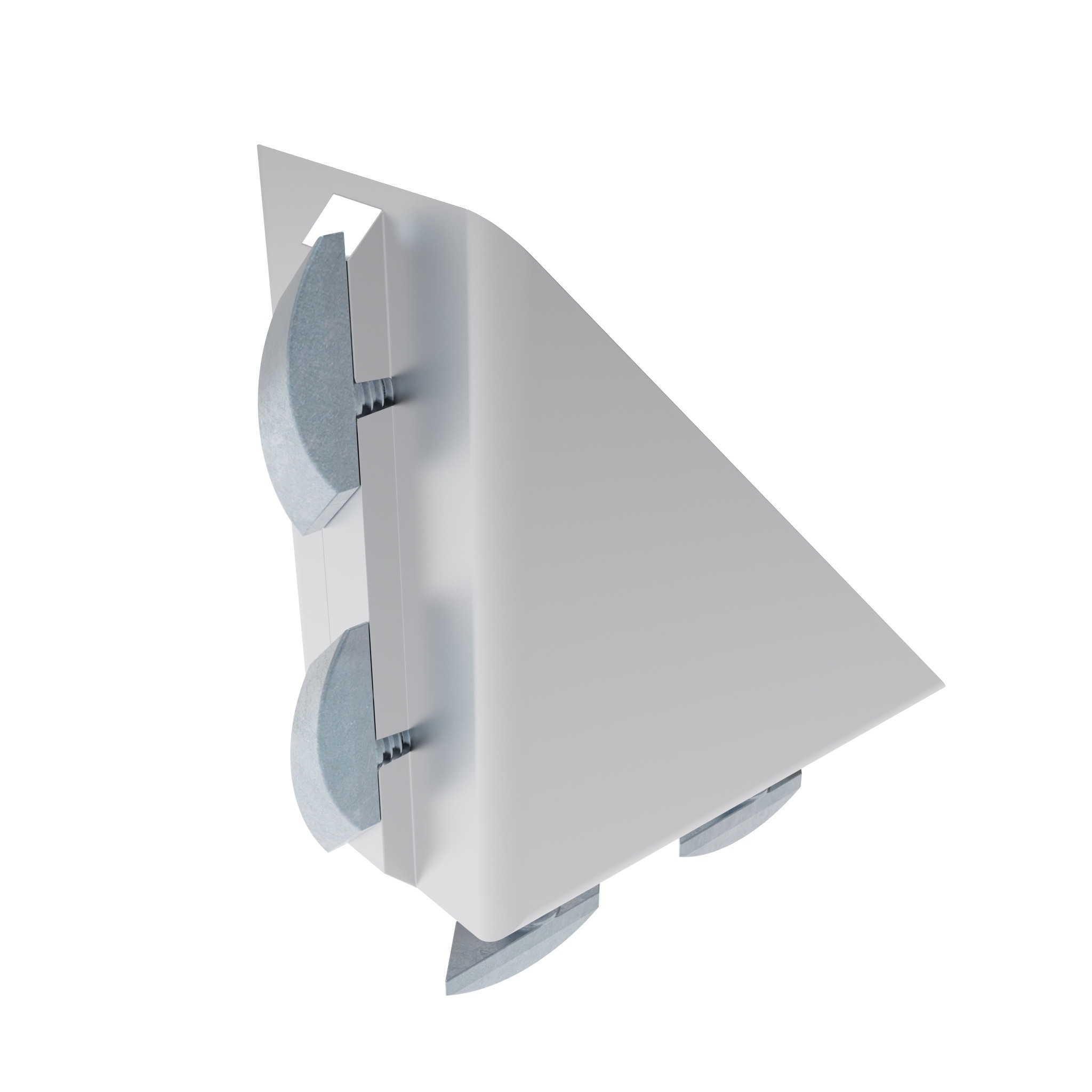

Alu Connection Angle I40 x 80 M (Set)
Color:Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSpecials:Other surfaces, other colors on requestSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedTip:Compatible Cover Cap see 093WA809

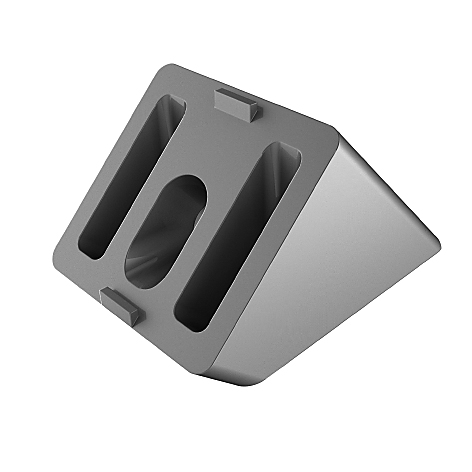

Angle Connector 40, 45°
Color:Alu colorDelivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Zinc die-castSpecials:Other surfaces, other colors on requestSurface:Plain / powder coated

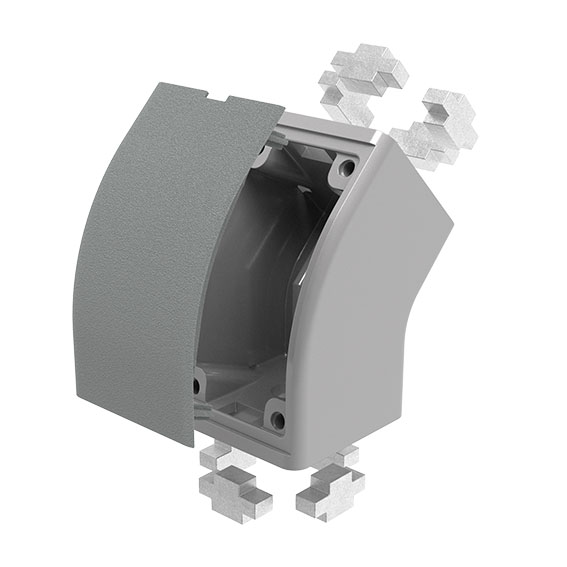

Angle Connector I 40, 45° (Set)
Color:Angle connector: Alu color Cover cap: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Angle connector: Aluminum die-cast Centering pieces: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforcedSet:1x angle connector, 4x centering pieces, 1x cover capSurface:Angle connector: Powder coated

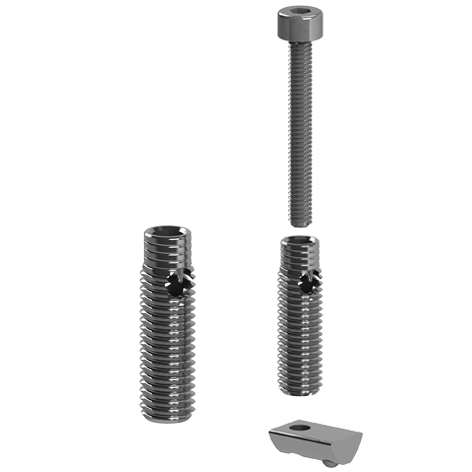

Automatic Connector Steel
Delivery Countries:WorldwideDescription:To connect two aluminum profiles fast and solid, assembly without machining; self-cutting threadMaterial:SteelSurface:Zinc platedTip:*Compatible Cover Cap see 099GA081KTip 2:** Automatic connector with assembly set for profil B incl. hammer nut instead of T-slot nut

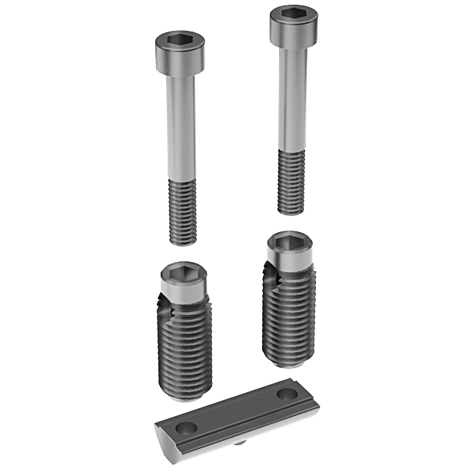

Automatic Double Connector I, Slot 8 (Set)
Delivery Countries:WorldwideDescription:To connect two aluminum profiles fast and solid, assembly without machining; self-cutting threadMaterial:SteelSurface:Zinc platedTip:Compatible Cover Cap see 099GA081K

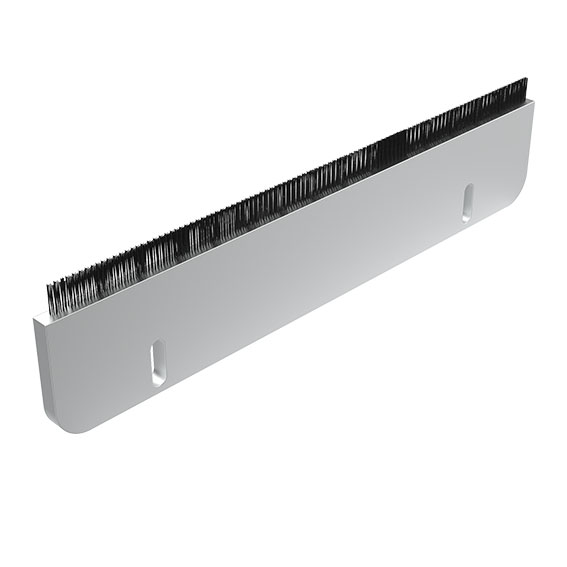

Brush Brake for Guiding Rail FIFO and FIFO Monorail 40 and 55
Color:Bristles: BlackDelivery Countries:WorldwideDescription:For braking and stopping dollies in guiding rails; Variable fixable via slot of the guide rail FIFO, in combination with Fasteners for FIFO Monorail Rails 40 and 55 (Set) also on FIFO Monorail 40 and 55Material:Body : Aluminum Bristles: Plastics PASurface:Body : AnodizedTip:Compatible Guiding Rail FIFO (Set) see 02082P.1200; Compatible FIFO Monorail Rail 40 see 02082PO.1200; Compatible FIFO Monorail Rail 55 see 02082PO55.1200; Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MB

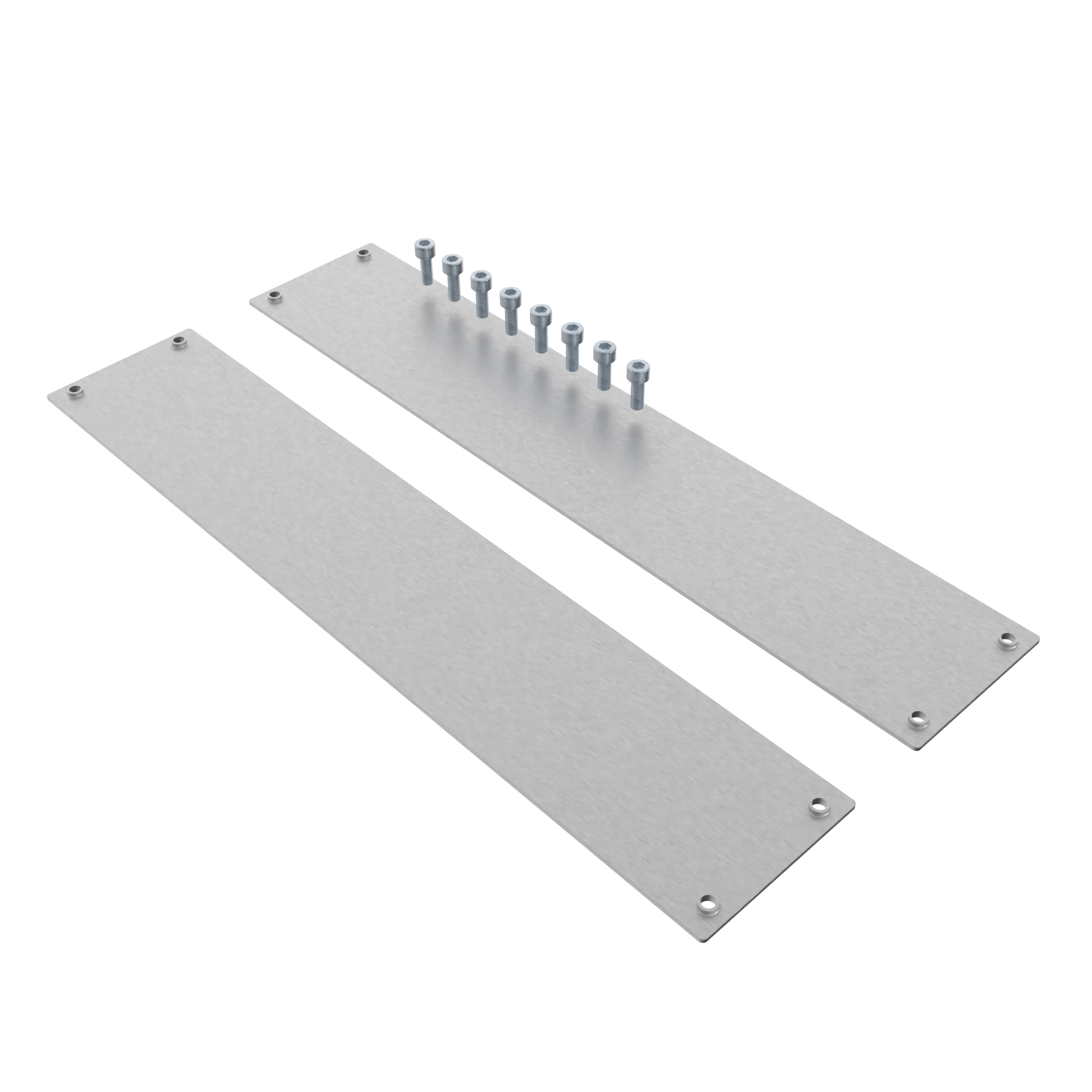

Connecting Element for FIFO Monorail Rail 40 and 55 (Set)
Delivery Countries:WorldwideDescription:For parallel connection of two FIFO Monorail rails, as spacer for aligning the track; To be screwed on infeed caps with enclosed screwsMaterial:Stainless steelSet:2 connecting elements 8 screws DIN EN ISO 4762 (DIN 912) - M6 x 16Surface:PlainTip:Compatible FIFO Monorail Rail 40 see 02082PO.1200 Compatible FIFO Monorail Rail 55 see 02082PO55.1200 Compatible Infeed cap for FIFO Monorail Rail 40 (Set) see 02082CCS02 Compatible Infeed cap for FIFO Monorail Rail 55 (Set) see 02082CC55

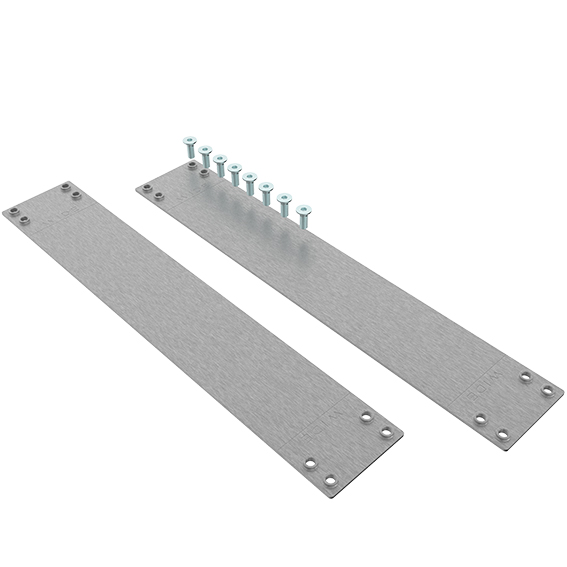

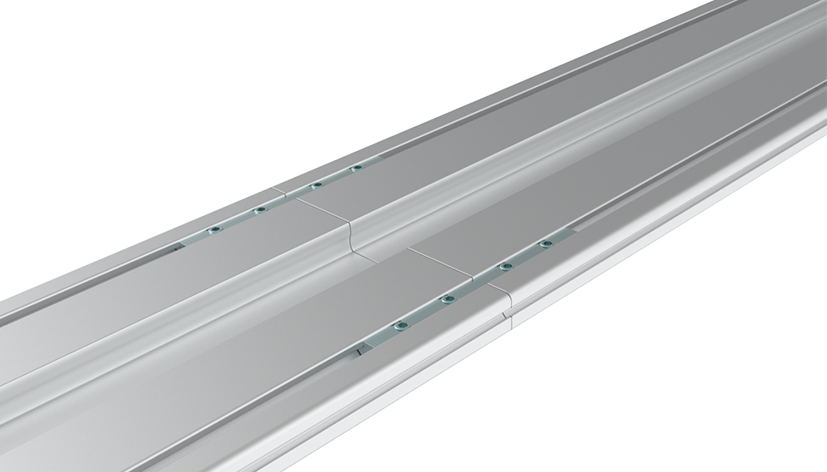

Connecting Element for Guiding Rail FIFO (Set)
Delivery Countries:WorldwideDescription:For parallel connection of two guiding rails FIFO, as spacer for aligning the track; To be screwed on infeed caps with enclosed screwsMaterial:Stainless steelSet:2 connecting elements 8 screws DIN EN ISO 10642 (DIN 7991) - M6 x 16Surface:PlainTip:Compatible Guiding Rail FIFO see 02082P.1200 Compatible Infeed Cap for Guiding Rail FIFO (set) see 02082CCS01

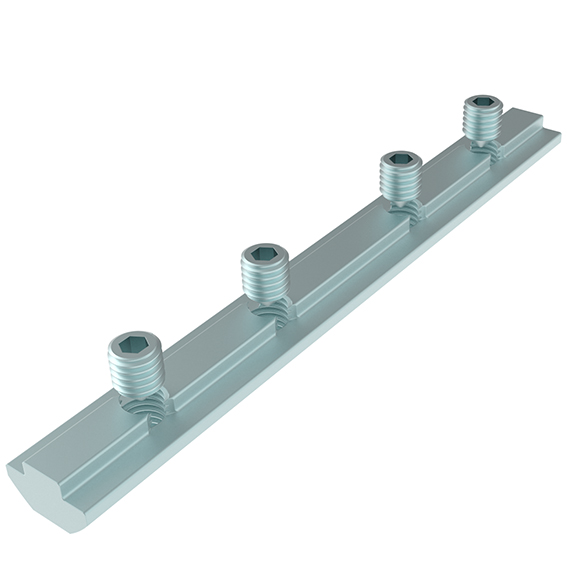

Connecting Strip 140 I, Slot 8 (Set)
Delivery Countries:WorldwideDescription:End-to-end connection of two aluminum profiles without machiningMaterial:SteelSet:1 connecting strip 140 - slot 8 4 screws DIN EN ISO 4027 (DIN 914) - M8 x 10Surface:Zinc plated

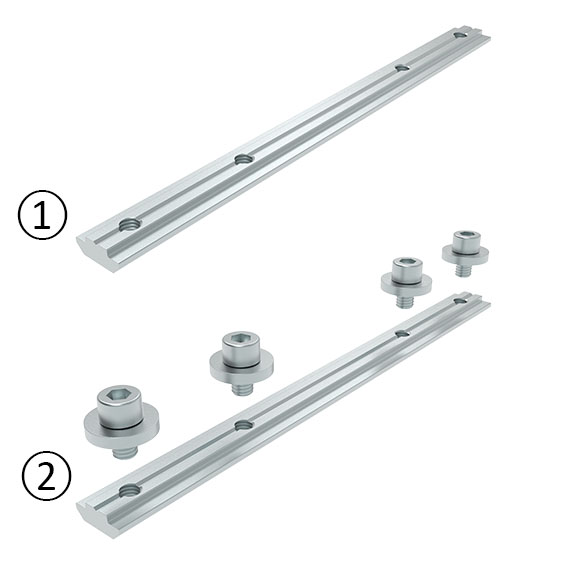

Connecting Strip 180 B, Slot 8
Assembly Set:4 screws DIN EN ISO 4762 (DIN 912) - M6 x 12, 4 washers DIN 7349 - 6.4Delivery Countries:WorldwideDescription:End-to-end connection of two aluminum profiles without machiningMaterial:SteelSurface:Zinc plated

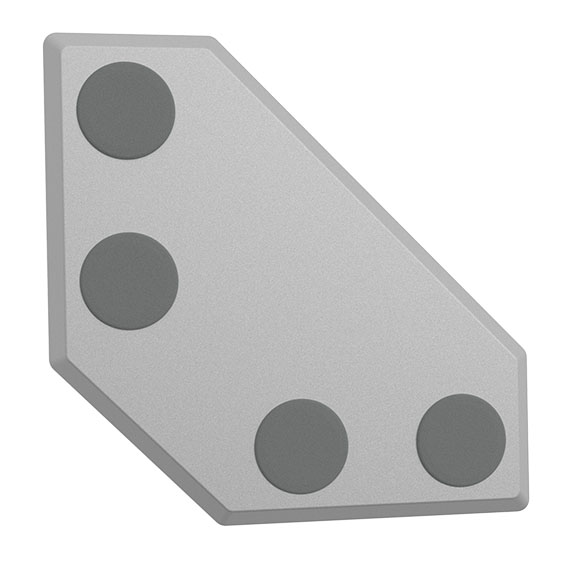

Connection Plate I120 M (Set)
Color:Connection plate: Alu color Cover Caps: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angle, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and counter sunk nuts; the open screwing holes of the connection plate can be closed with the cover capsMaterial:Connection plate: Aluminum die-cast Cover caps: Plastic PA, glass fiber reinforced Magnet rhombus screws: Steel Countersunk nuts: SteelSet:1 connection plate with pre-assembled magnet rhombus screws and counter sunk nuts 4 cover capsSpecials:Other surfaces, other colors on requestSurface:Connection plate: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc plated

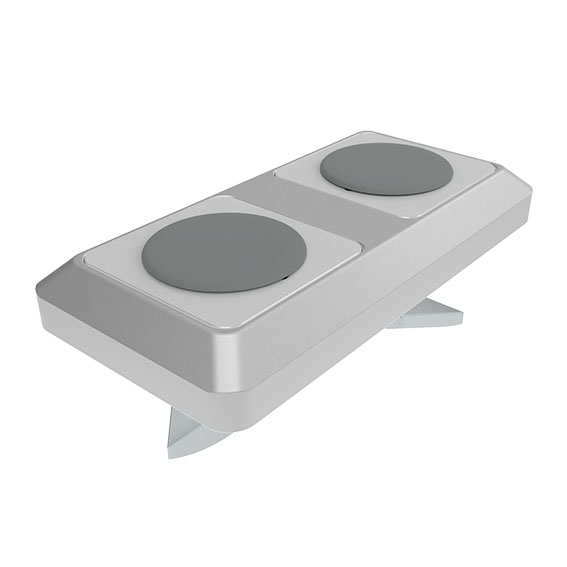

Connection Plate I40 M Length/Cross, Rectangular 2 Hole, 1 Slot (Set)
Color:Connection plate: Alu color Cover Caps: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To connect two aluminum profiles quickly at right angle or parallel, direct inserting into the profile slot thanks to lengthwise or crosswise positioning of the pre-assembled magnet rhombus screws and counter sunk nuts with the 90° turnable inserts; the open screwing holes of the connection plate can be closed with the cover capsMaterial:Connection plate: Aluminum die-cast Cover caps: Plastic PA, glass fiber reinforced Magnet rhombus screws: Steel Countersunk nuts: SteelSet:1 connection plate with pre-assembled magnet rhombus screws and counter sunk nuts in 90° turnable inserts 2 cover capsSpecials:Other surfaces, other colors on requestSurface:Connection plate: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc plated

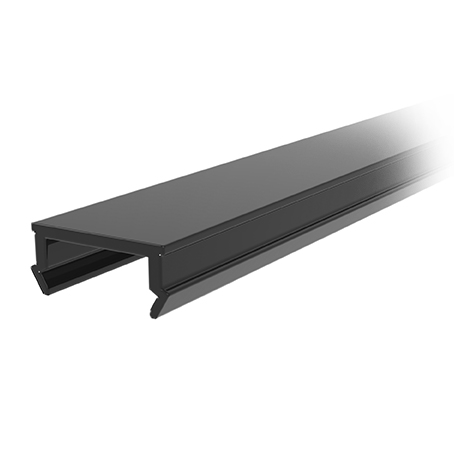

Cover Profile Slot 8 - 2.2
Color:Black, yellow, red, blue, gray, white, natural, alu colorDelivery Countries:WorldwideDescription:To cover T-Slots with 8 width and a 2.2 mm profile webMaterial:Plastic PPSpecials:Other colors on requestTip:ESD electrostatical discharging version: Notch at the bottom side

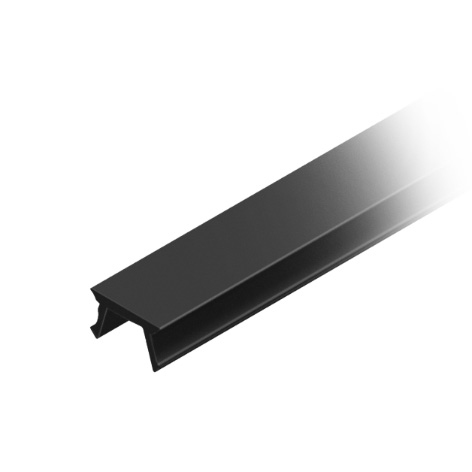

Cover Profile Slot 8 - 4.5
Color:Black, yellow, gray, natural, alu colorDelivery Countries:WorldwideDescription:To cover T-Slots with 8 mm width and a 4.5 mm profile webMaterial:Plastic PPSpecials:Other colors on request

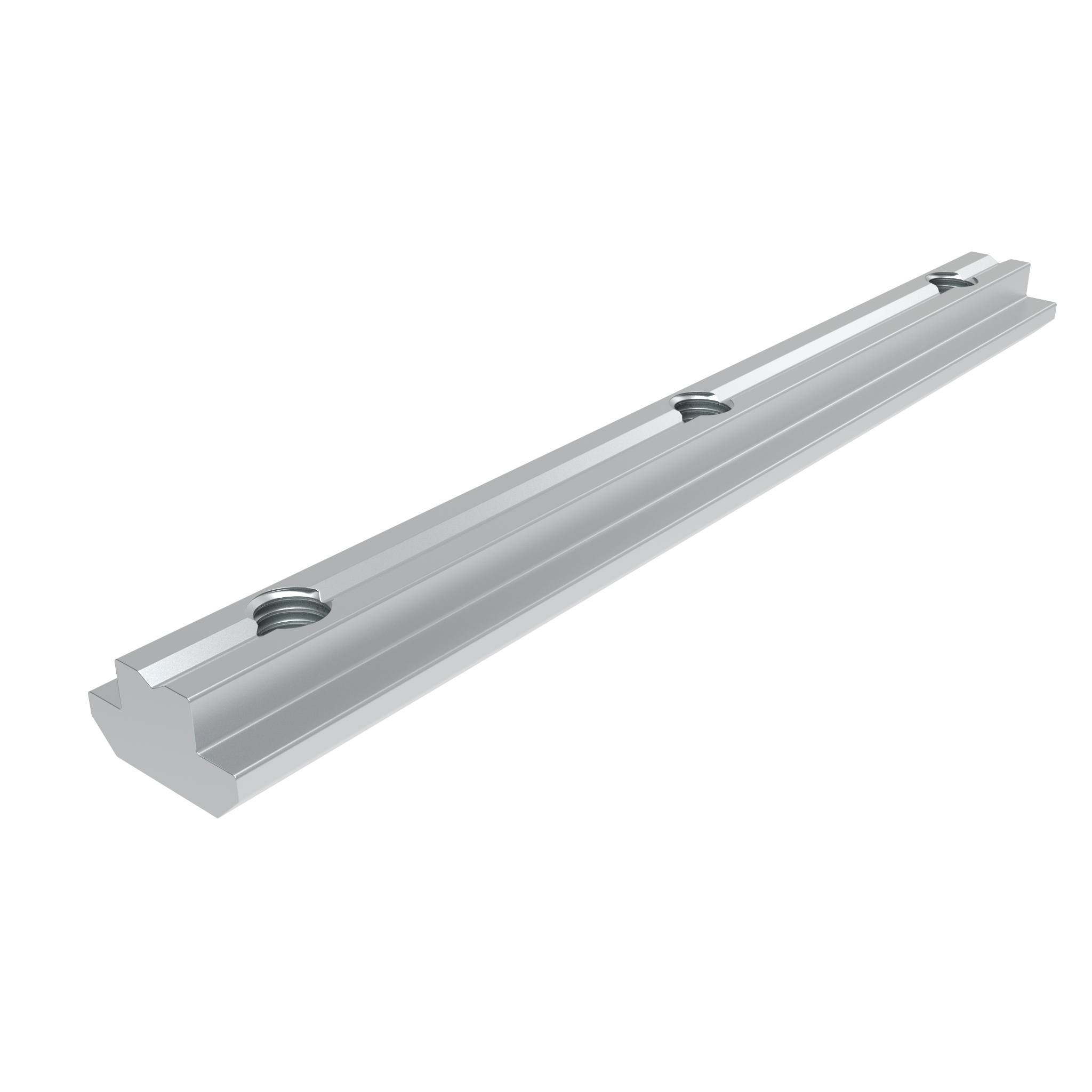

End Stop for FIFO Monorail Rail 40
Description:To stop dollies in FIFO monorail rails 40; Installation with mounting set for FIFO monorail rails (not included)Material:SteelSpecials:Compatible Mounting for FIFO Monorail Rails 40 and 55 (Set) see 02082MBSurface:Zinc plated

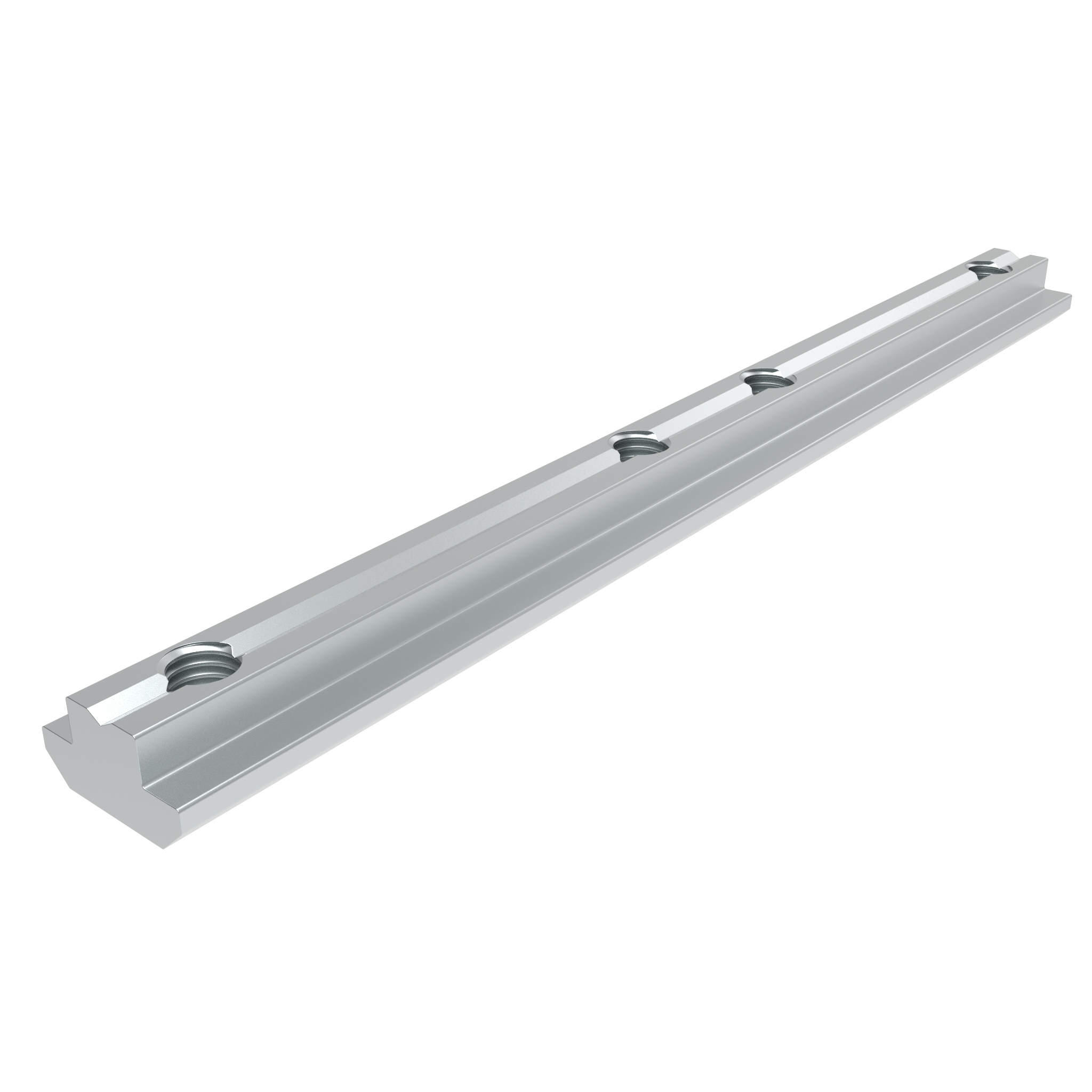

End Stop for FIFO Monorail Rail 55
Delivery Countries:WorldwideDescription:To stop dollies in FIFO monorail rails 55; Installation with mounting set for FIFO monorail rails (not included)Material:SteelSurface:Zinc platedTip:Compatible Mounting for FIFO Monorail Rails 40 and 55 (Set) see 02082MB

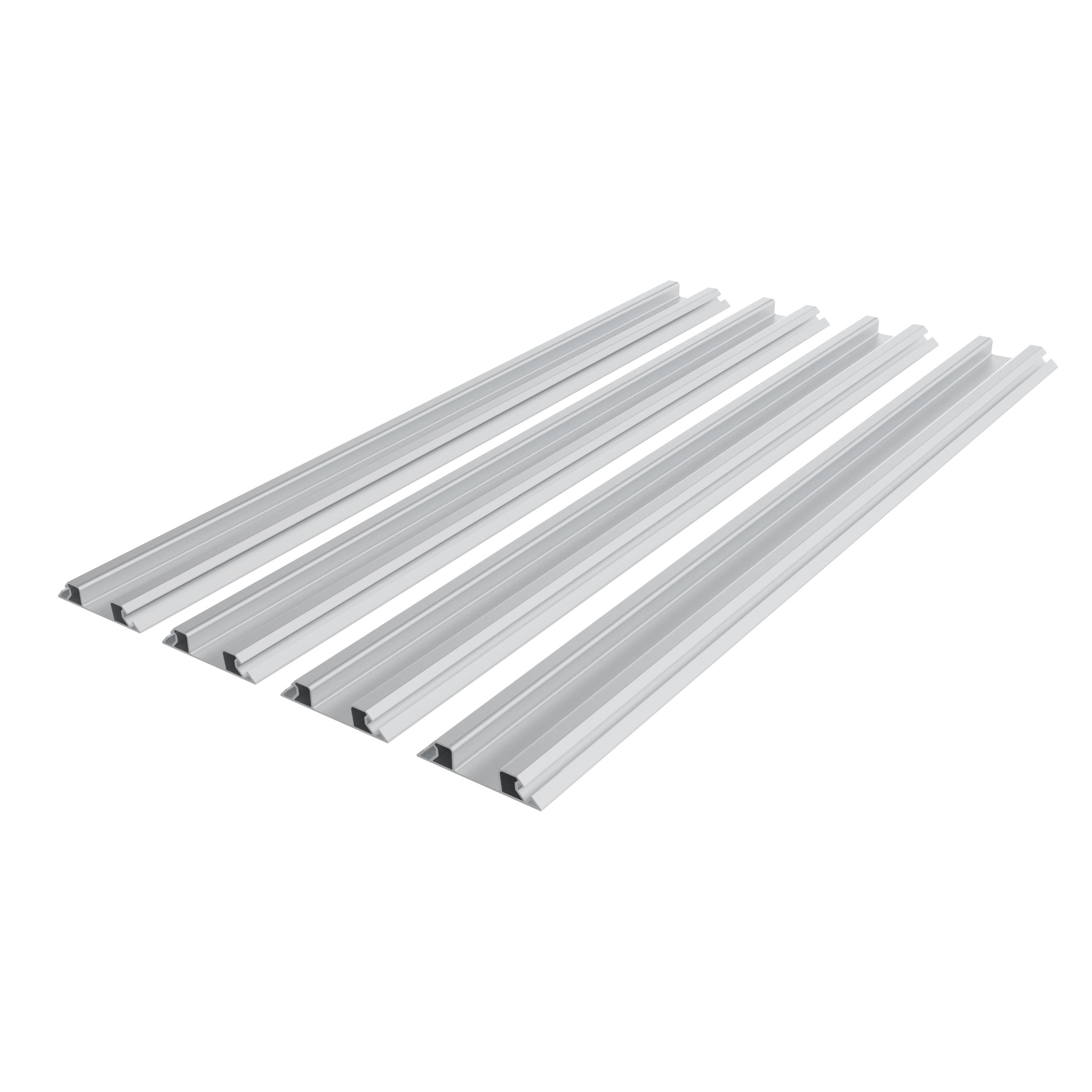

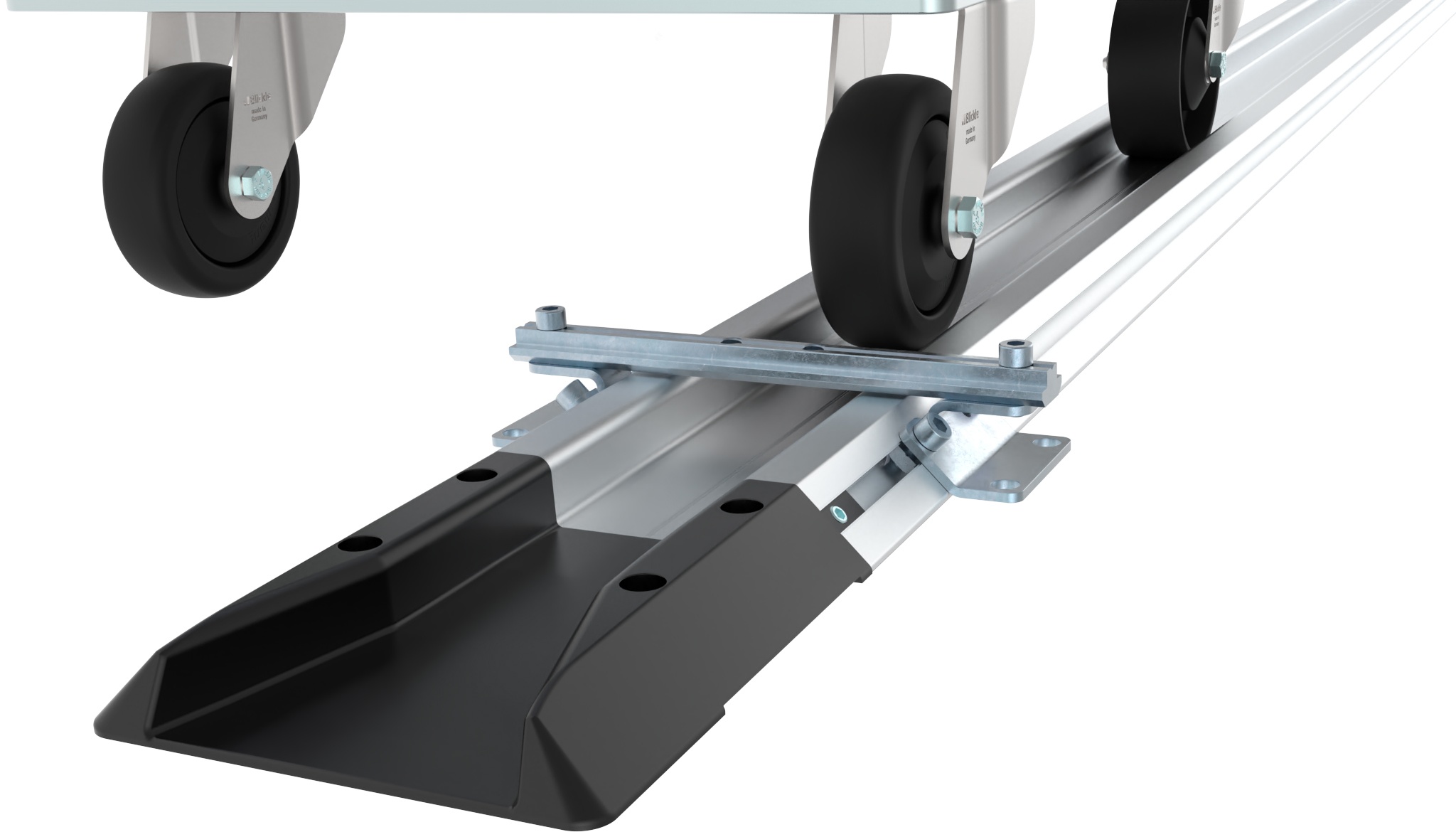

FIFO Monorail Rail 40
Delivery Countries:WorldwideDescription:For guiding floor dollies on one side in FIFO stations, with a wheel width of up to 40 mm 2 slots at the top, set at 45°; closed back side for optional full-surface adhesion to the floor To extend two guiding rails, connect them face to face with connecting strip in the slots; Posts can be mounted in the slot from above; To securely fix to the floor, use the optional mounting set; Mounting of a brush brake or an end stop with 2 optional mounting sets as a support baseMaterial:AluminumSurface:AnodizedTip:Compatible Connecting Strip see 096010S61 Compatible Infeed Cap for FIFO Monorail Rail (Set) see 02082CCS02 Compatible Monorail Angle Connector for Post see 093WS30145S01 Compatible Mounting Set for Posts Support Struts see 093WS30145S02 Compatible Cover Profiles see 092050; Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MB

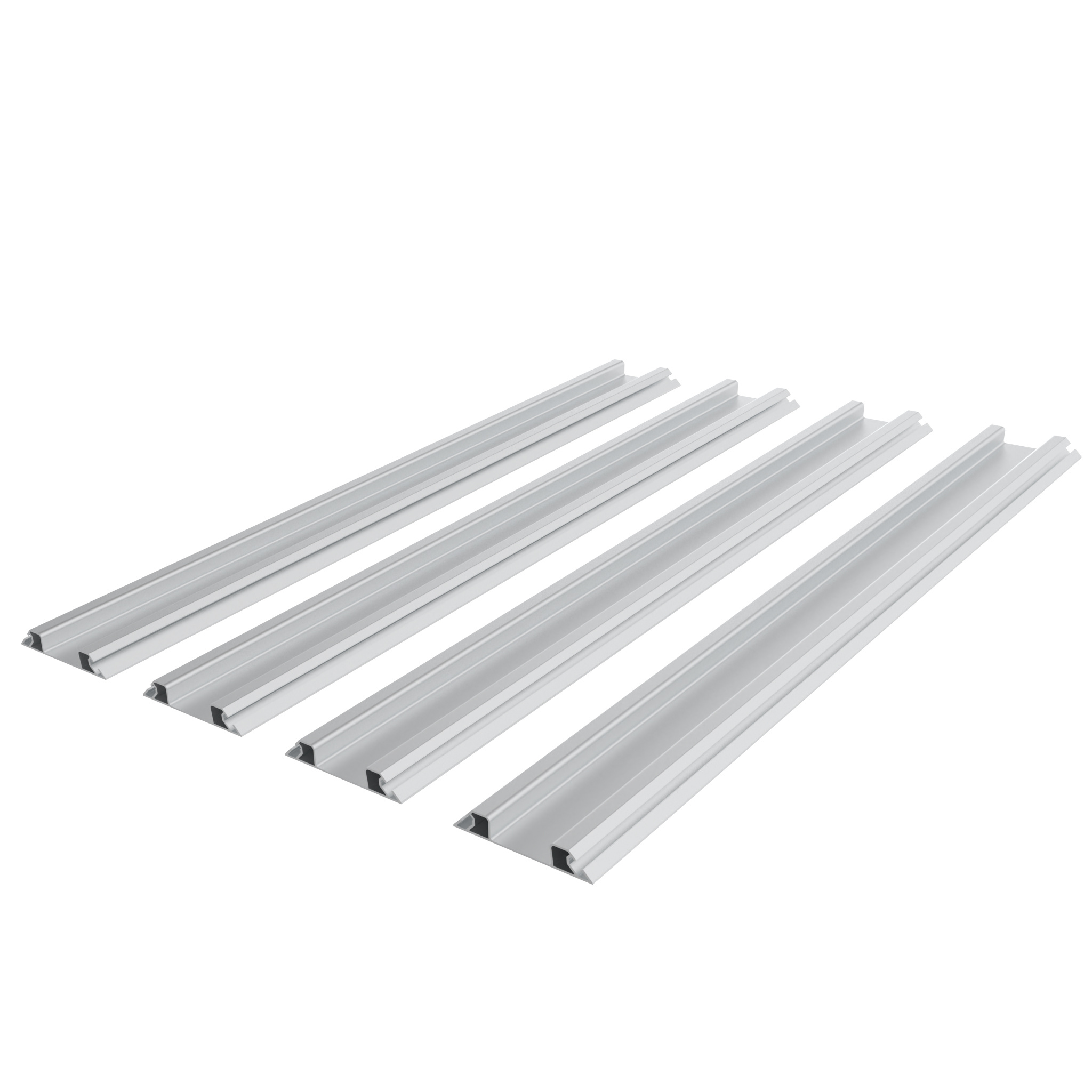

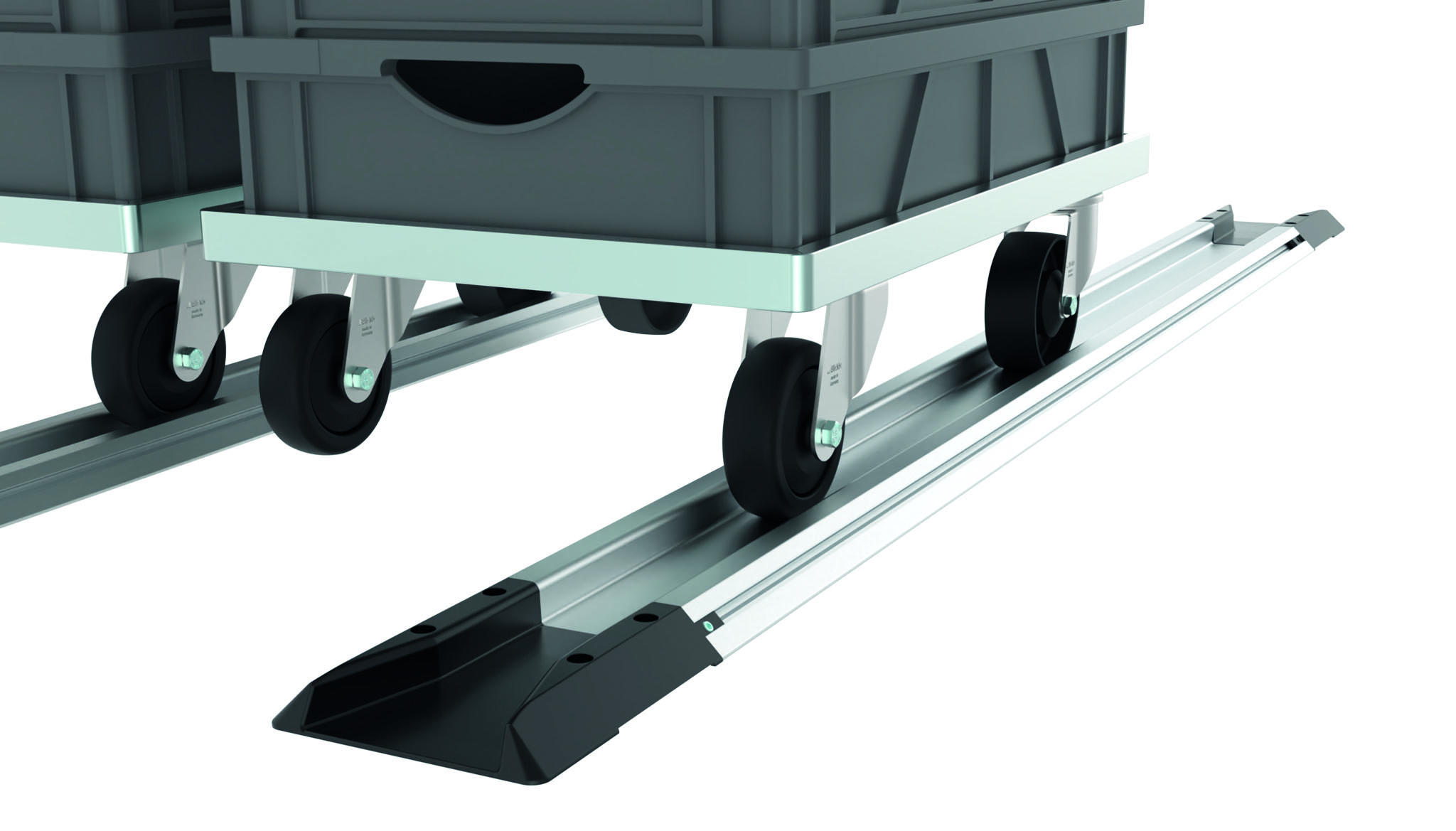

FIFO Monorail Rail 55
Delivery Countries:WorldwideDescription:For guiding floor dollies on one side in FIFO stations, with a wheel width of up to 55 mm 2 slots at the top, set at 45°; closed back side for optional full-surface adhesion to the floor To extend two guiding rails, connect them face to face with connecting strip in the slots; Posts can be mounted in the slot from above; To securely fix to the floor, use the optional mounting set; Mounting of a brush brake or an end stop with 2 optional mounting sets as a support baseMaterial:AluminumSurface:AnodizedTip:Compatible Connecting Strip see 096010S61 Compatible Infeed Cap for FIFO Monorail Rail (Set) see 02082CCS02 Compatible Monorail Angle Connector for Post see 093WS30145S01 Compatible Mounting Set for Posts Support Struts see 093WS30145S02 Compatible Cover Profiles see 092050; Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MB

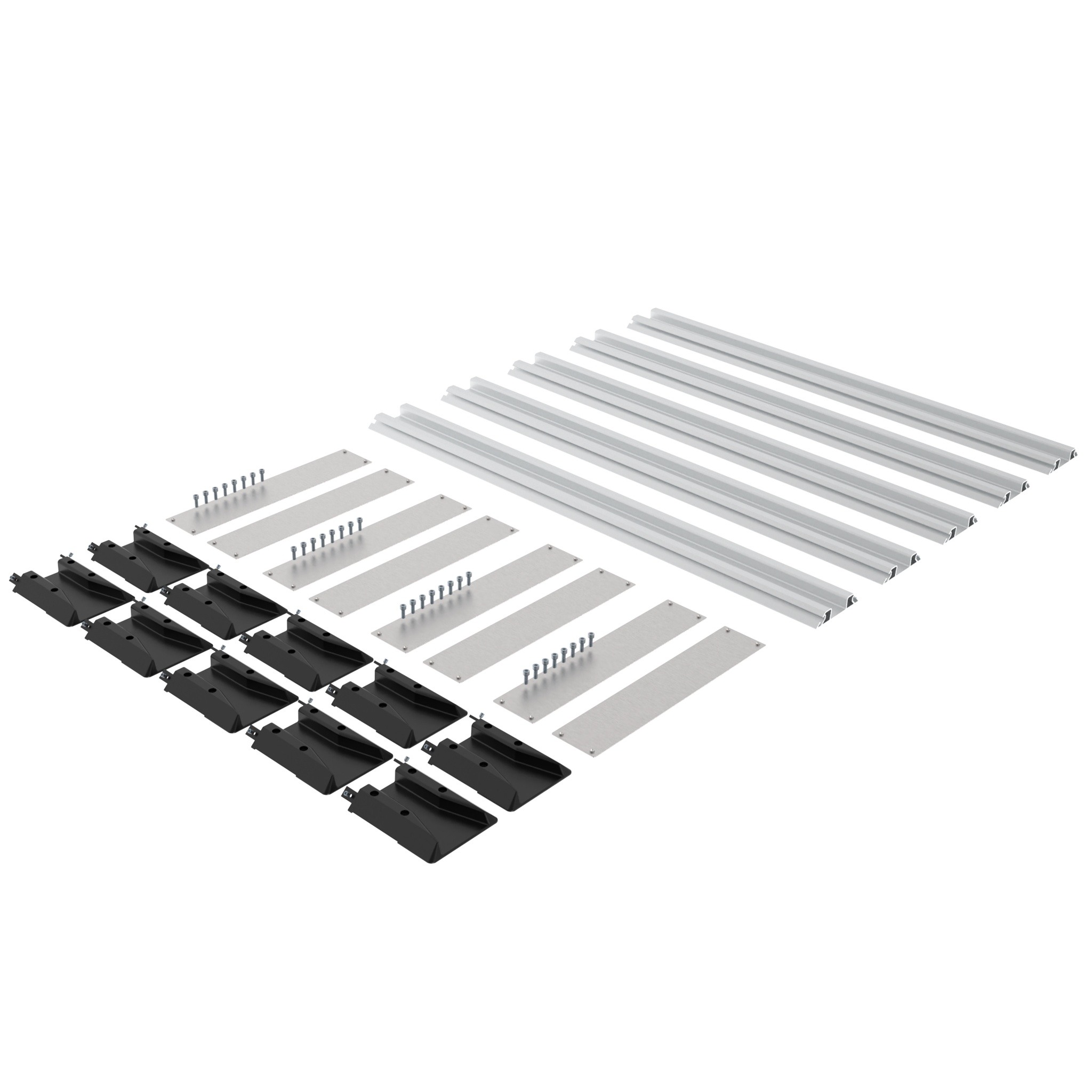

FIFO Monorail Station 40 (Set)
Color:Infeed caps: BlackDelivery Countries:WorldwideDescription:Fast mounting FIFO station for guiding floor dollies on one side in FIFO stations, with a wheel width of up to 40 mm; To extend guiding rails, connect them face to face with connecting strip in the slots; To widen, connect further parallel guided guiding rails and end caps with connecting elements Posts can be mounted in the slot from above; To securely fix to the floor, use the optional mounting set; Mounting of a brush brake or an end stop with 2 optional mounting sets as a support baseMaterial:Rails: Aluminum Infeed caps: Aluminum die-cast Hexagon socket set screws: Steel Connecting elements: Stainless steel Screws: SteelSet:5 FIFO Monorail Rails 40, 10 infeed caps, 20 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8, 8 connecting elements, 32 screws DIN EN ISO 10642 (DIN 7991) - M6 x 16Surface:Rails: Anodized Infeed caps: Powder coated Hexagon socket set screws: Zinc plated Screws: Zinc platedTip:Compatible Connecting Strip see 096010S61 Compatible Monorail Angle Connector for Post see 093WS30145S01 Compatible Mounting Set for Posts Support Struts see 093WS30145S02 Compatible Cover Profiles see 092050; Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MB
