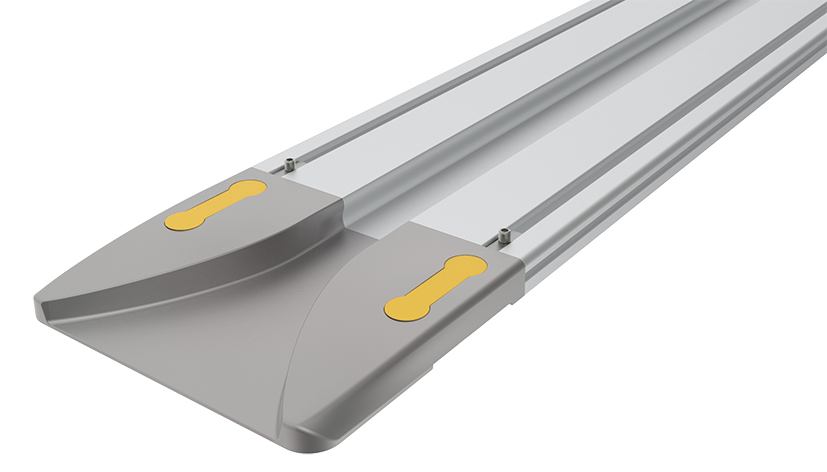

Infeed Cap for Guiding Rail FIFO (Set)

Product information "Infeed Cap for Guiding Rail FIFO (Set)"

Color:
Screw Covers: Yellow ≈ RAL 1003

Delivery Countries:
Worldwide

Description:
For easier loading and unloading of a FIFO stations with floor dollys;

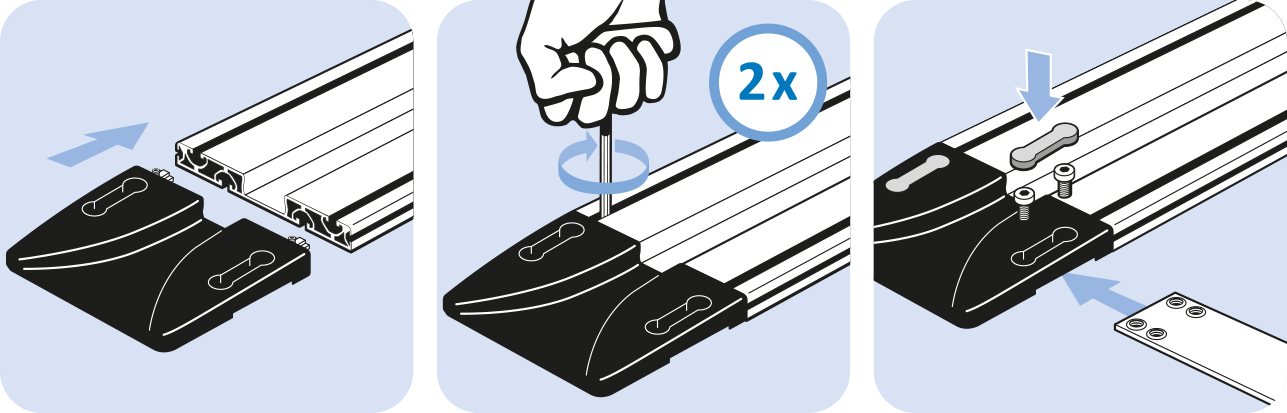

Robust design, mounting directly in the slot of guiding rails FIFO with enclosed hexagon socket set screws
Yellow screw cover with signal effect to indicate the infeed position for the wheels of floor dollys

Material:
Infeed caps: Aluminum die-cast
Screw covers: Plastic PC
Hexagon socket set screws: Steel

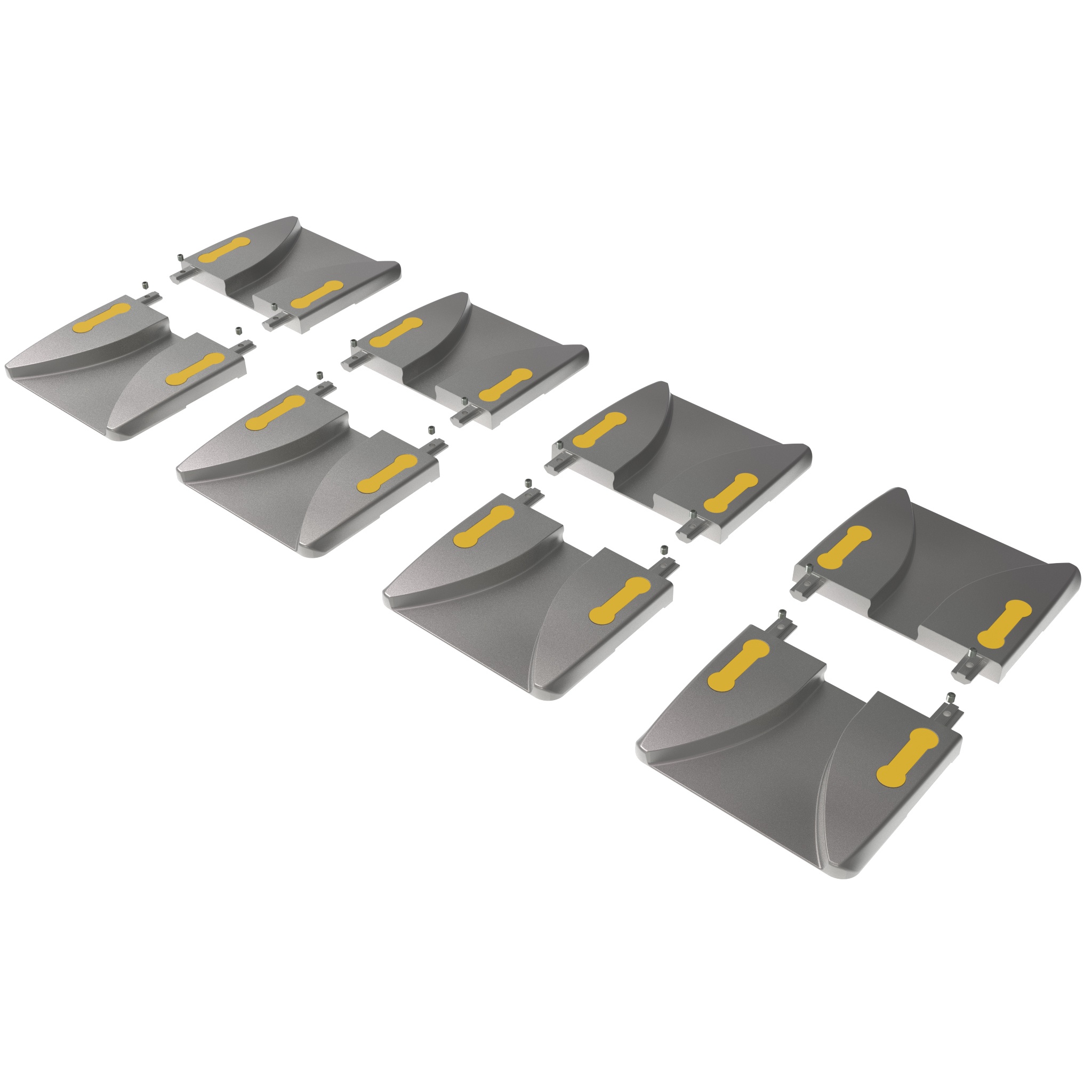

Set:
8 infeed caps
16 screw covers
16 hexagon socket set screws ISO 4027 - M6 x 8

Surface:
Infeed caps: Alu color powder coated
Hexagon socket set screws: Zinc plated

Tip:
Compatible Guiding Rails FIFO see 02082P.1200
Compatible Connecting Element for Guiding Rail FIFO see 02082D
Compatible Fastening Set see 02082FS
Compatible Screw Cover Infeed Cap for Guiding Rail FIFO as spare part see 02082S.15

Zolltarifnummer:
76169990990
(ECLASS 6.0): 21070390
(ECLASS 7.0): 21070390
(ECLASS 8.0): 21070390
(ECLASS 9.0): 21070390
(ECLASS 10.0): 21070390
(ECLASS 11.0): 21070491
(ECLASS 12.0): 21070491
(ECLASS 13.0): 21070491
Fastening: From the front, using M6 countersunk screws
Model: Aluminum die-cast
Pack Quantity: 1 set
Weight (g): 3.348

Variants

Product ID
02082CCS01

CAD Downloads

Certificates
