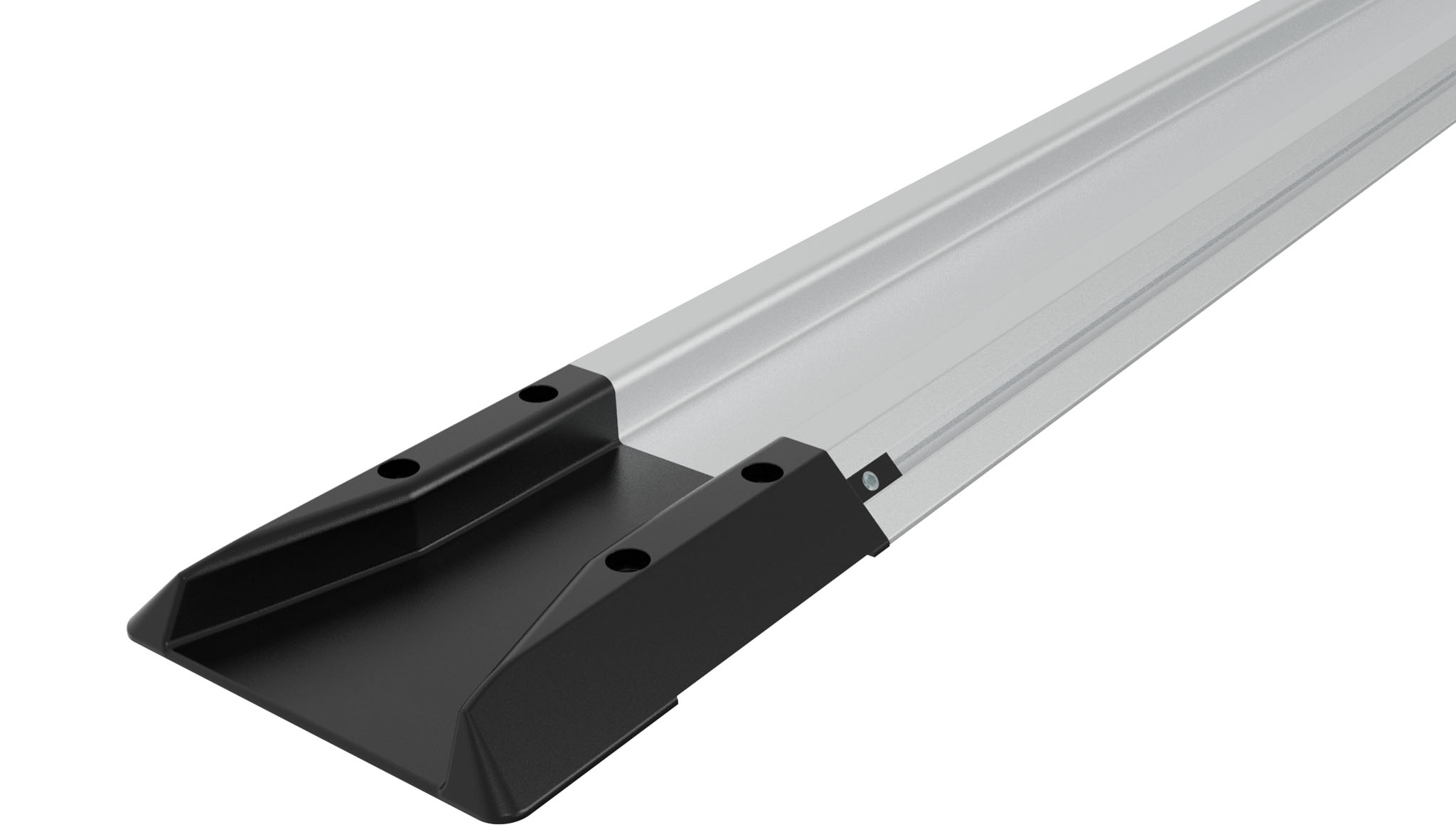

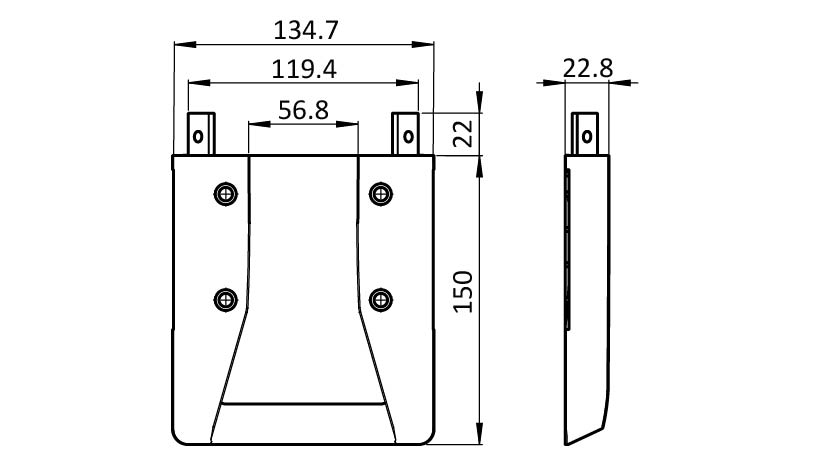

Infeed cap for FIFO Monorail Rail 55 (Set)
€0.00
For easier loading and unloading of FIFO stations with floor dollies;
Robust design, mounting directly in the slot of FIFO monorail rail with enclosed hexagon socket set screws
Infeed caps: Aluminum die-cast
Hexagon socket set screws: Steel
Surface:
Infeed caps: Powder coated
Hexagon socket set screws: Zinc plated
Color:
Infeed caps: Black
Fastening:
From the front, using M6 countersunk screws
Set:
8 infeed caps
16 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8
Tip:
Compatible FIFO monorail rail 55 see 02082PO55.1200
Delivery Countries:
Worldwide
| Pack Quantity: | 8 pieces |
|---|---|
| Model: | Aluminum die-cast |
| Weight (kg): | 2.3 |
| ERP Number: | 166584 |
Classifications
- ECLASS 6.0
- 21070390
- ECLASS 7.0
- 21070390
- ECLASS 8.0
- 21070390
- ECLASS 9.0
- 21070390
- ECLASS 10.0
- 21070390
- ECLASS 11.0
- 21070491
- ECLASS 12.0
- 21070491
- ECLASS 13.0
- 21070491
- Zolltarifnummer
- 76169990990
- Customs Tariff Number Export
- 76169990
Certificates
Matching accessories
Description:For guiding floor dollies on one side in FIFO stations, with a wheel width of up to 55 mm 2 slots at the top, set at 45°; closed back side for optional full-surface adhesion to the floor To extend two guiding rails, connect them face to face with connecting strip in the slots; Posts can be mounted in the slot from above; To securely fix to the floor, use the optional mounting set; Mounting of a brush brake or an end stop with 2 optional mounting sets as a support baseMaterial:AluminumSurface:AnodizedTip:Compatible Connecting Strip see 096010S61 Compatible Infeed Cap for FIFO Monorail Rail (Set) see 02082CCS02 Compatible Monorail Angle Connector for Post see 093WS30145S01 Compatible Mounting Set for Posts Support Struts see 093WS30145S02 Compatible Cover Profiles see 092050; Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MBDelivery Countries:Worldwide
