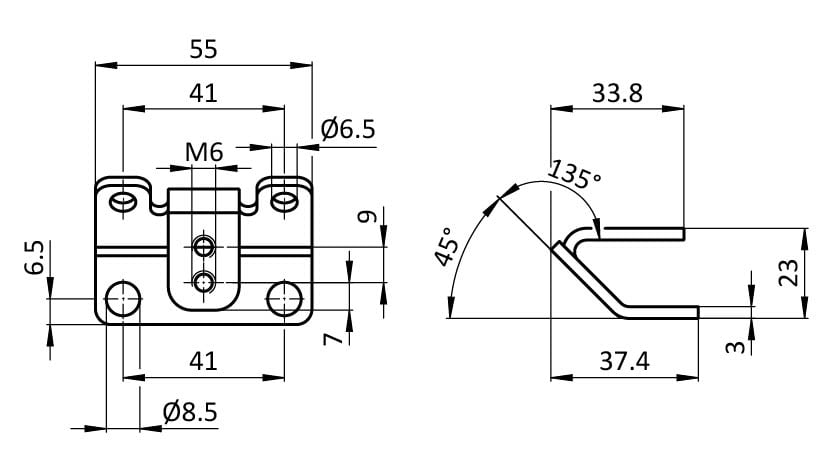

Mounting for FIFO Monorail Rail 40 and 55 (Set)
€0.00

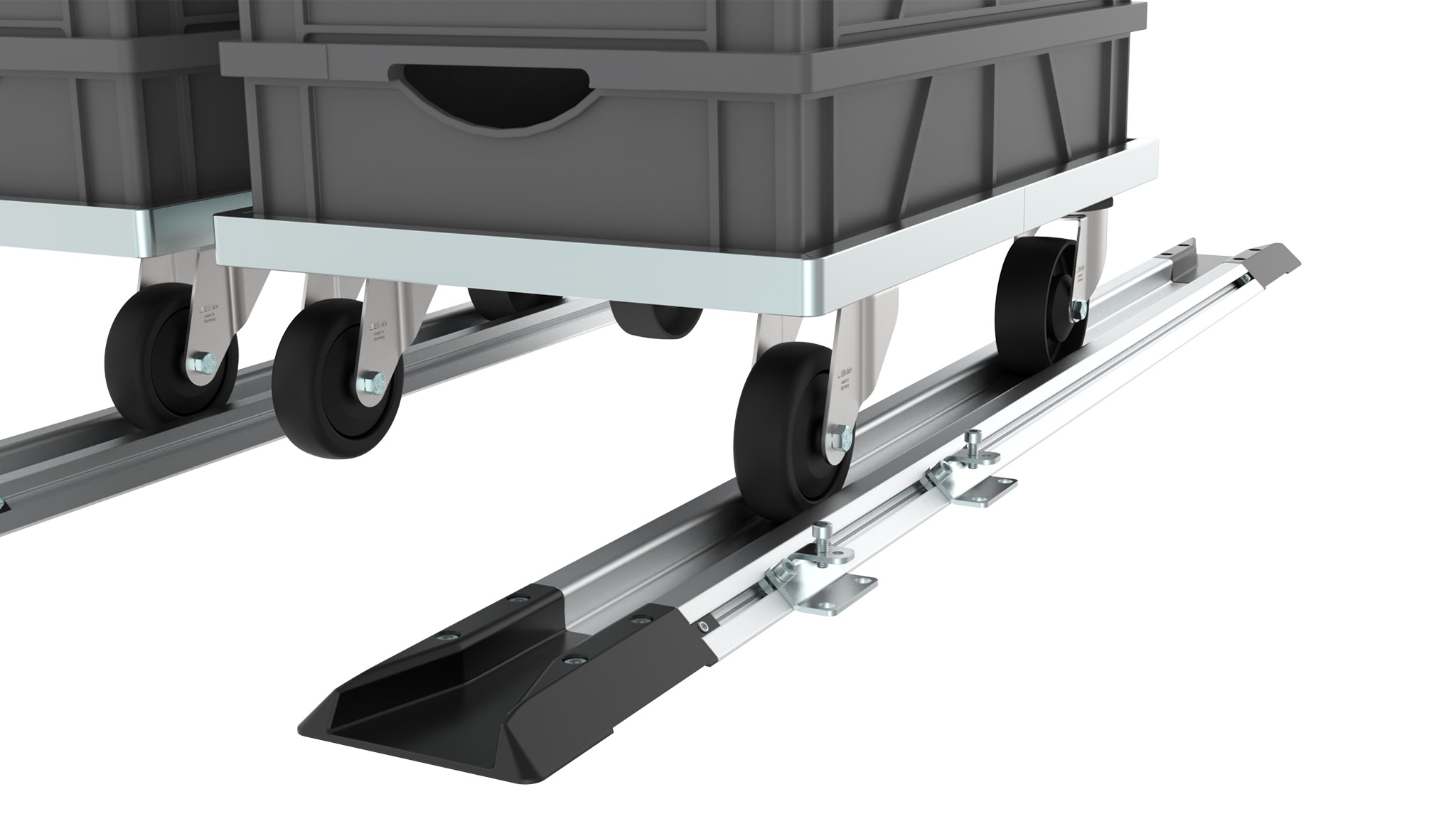

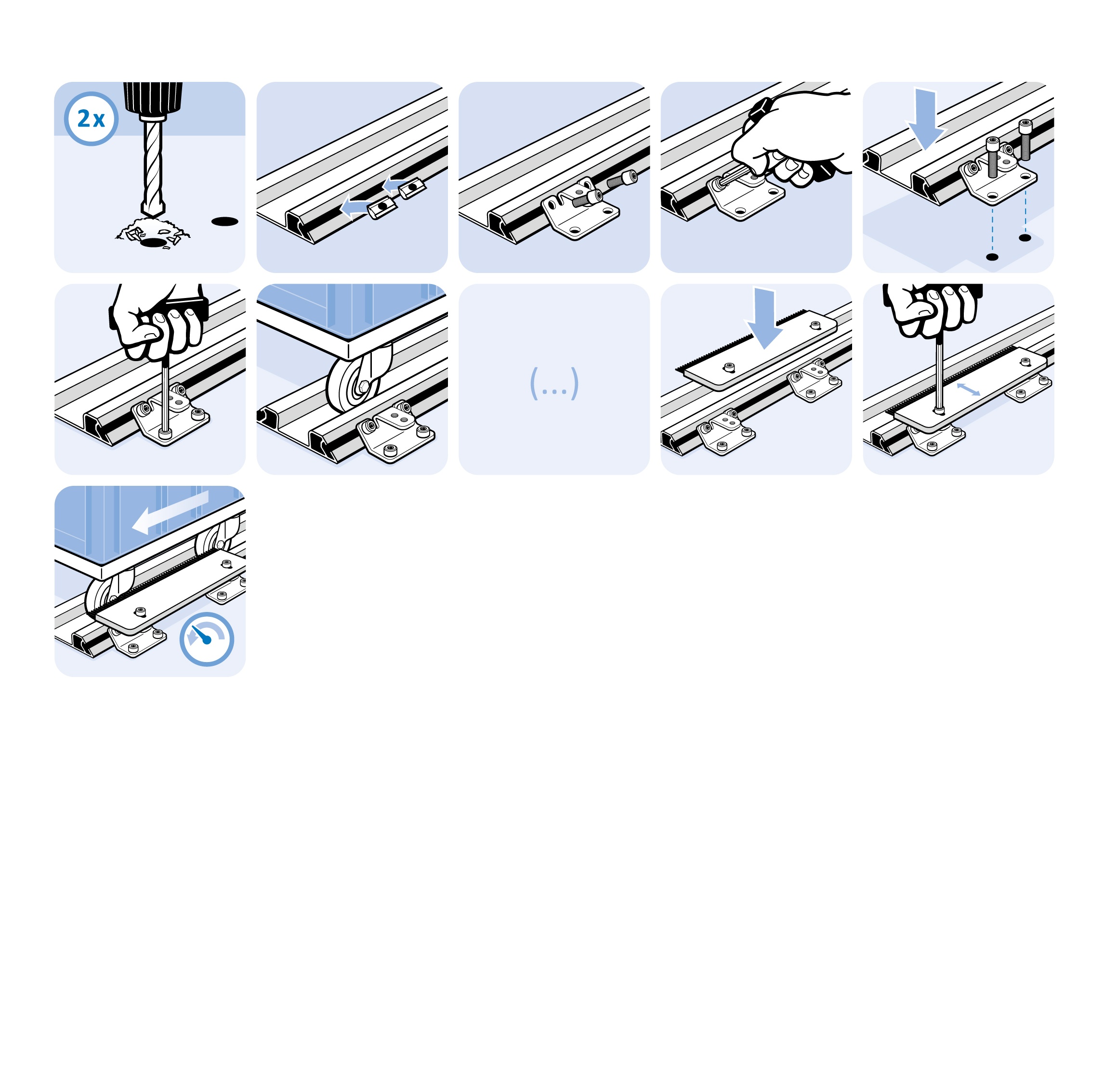

To securely fix FIFO Monorail Rails to the floor;
For use as a support base to mount a brush brake or an end stop
Steel
Surface:
Zinc plated
Set:
2 Mounting,
4 T-slot nuts - slot 8 - M6,
6 screws DIN EN ISO 4762 (DIN 912) - M6 x 12,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 16
Tip:
Compatible Brush Brake see 02082BB
Compatible variable End Stop for FIFO Monorail Rail 40 see 096030S52
Compatible variable End Stop for FIFO Monorail Rail 55 see 096030S12
Delivery Countries:
Worldwide
| Pack Quantity: | 1 piece |
|---|---|
| Weight (g): | 173.0 |
| ERP Number: | 169709 |
Classifications
- Zolltarifnummer
- 73269098900
- Customs Tariff Number Export
- 73269098
Certificates
Matching accessories
Description:For braking and stopping dollies in guiding rails; Variable fixable via slot of the guide rail FIFO, in combination with Fasteners for FIFO Monorail Rails 40 and 55 (Set) also on FIFO Monorail 40 and 55Material:Body : Aluminum Bristles: Plastics PASurface:Body : AnodizedColor:Bristles: BlackTip:Compatible Guiding Rail FIFO (Set) see 02082P.1200; Compatible FIFO Monorail Rail 40 see 02082PO.1200; Compatible FIFO Monorail Rail 55 see 02082PO55.1200; Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MBDelivery Countries:Worldwide
Description:To stop dollies in FIFO monorail rails 40; Installation with mounting set for FIFO monorail rails (not included)Material:SteelSurface:Zinc platedSpecials:Compatible Mounting for FIFO Monorail Rails 40 and 55 (Set) see 02082MBDelivery Countries:Worldwide
