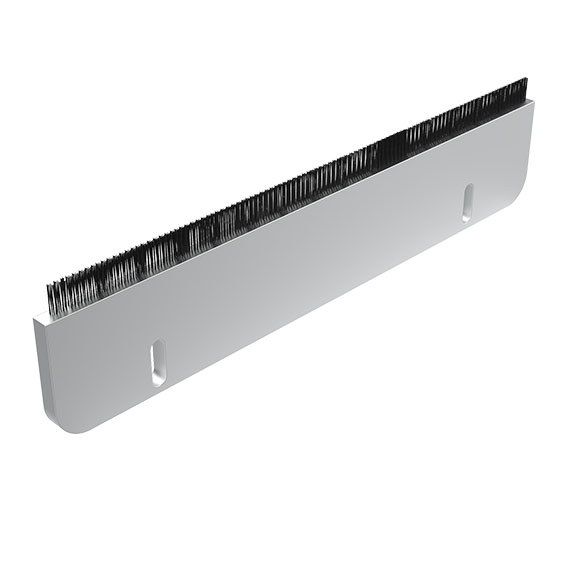

Brush Brake for Guiding Rail FIFO and FIFO Monorail 40 and 55
€0.00

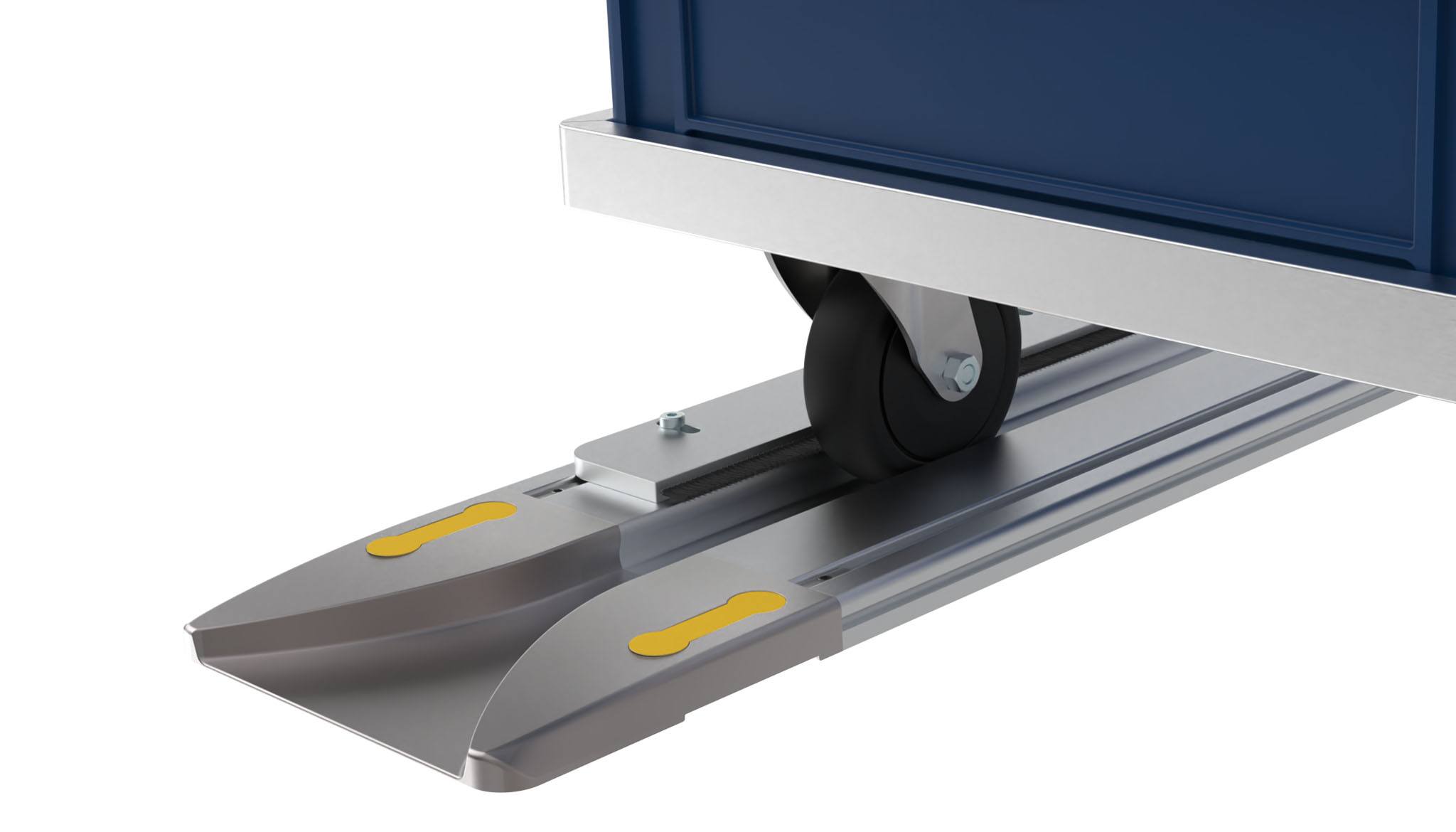

For braking and stopping dollies in guiding rails;
Variable fixable via slot of the guide rail FIFO, in combination with Fasteners for FIFO Monorail Rails 40 and 55 (Set) also on FIFO Monorail 40 and 55
Body : Aluminum
Bristles: Plastics PA
Surface:
Body : Anodized
Color:
Bristles: Black
Tip:
Compatible Guiding Rail FIFO (Set) see 02082P.1200;
Compatible FIFO Monorail Rail 40 see 02082PO.1200;
Compatible FIFO Monorail Rail 55 see 02082PO55.1200;
Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MB
Delivery Countries:
Worldwide
| Pack Quantity: | 1 piece |
|---|---|
| Model: | Aluminum, slot 8 |
| Weight (g): | 149.4 |

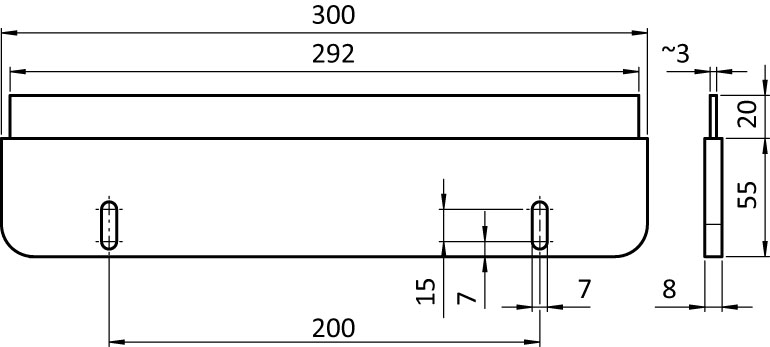

| Dimensions: | Total Length: 300 mm Length of the Bristles: 20 mm |
| ERP Number: | 148083 |
Classifications
- ECLASS 6.0
- 21070390
- ECLASS 7.0
- 21079290
- ECLASS 8.0
- 21079290
- ECLASS 9.0
- 21070392
- ECLASS 10.0
- 21070392
- ECLASS 11.0
- 21070492
- ECLASS 12.0
- 21070492
- ECLASS 13.0
- 21070492
- Zolltarifnummer
- 96035000000
- Customs Tariff Number Export
- 96035000
Certificates
Matching accessories
Description:For guiding floor dollys on one side in FIFO stations, with a wheel width of up to 40 mm with 2 slots at the top, bottom and sides; to extend two guiding rails, connect them face to face with connecting strip in the slots; sign posts can be mounted in the slot from aboveMaterial:AluminumSurface:AnodizedTip:Other lengths on requestTip 2:Compatible connecting strip see 096060S02 Compatible infeed cap for FIFO monorail rail (set) see 2082CCS02 Compatible monorail angle connector for post see 093WS30145S01 Compatible mounting set for posts support struts see 93WS30145S02 Compatible cover profiles see 092080Delivery Countries:Worldwide
Description:For guiding floor dollies on one side in FIFO stations, with a wheel width of up to 40 mm 2 slots at the top, set at 45°; closed back side for optional full-surface adhesion to the floor To extend two guiding rails, connect them face to face with connecting strip in the slots; Posts can be mounted in the slot from above; To securely fix to the floor, use the optional mounting set; Mounting of a brush brake or an end stop with 2 optional mounting sets as a support baseMaterial:AluminumSurface:AnodizedTip:Compatible Connecting Strip see 096010S61 Compatible Infeed Cap for FIFO Monorail Rail (Set) see 02082CCS02 Compatible Monorail Angle Connector for Post see 093WS30145S01 Compatible Mounting Set for Posts Support Struts see 093WS30145S02 Compatible Cover Profiles see 092050; Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MBDelivery Countries:Worldwide
Description:For guiding floor dollies on one side in FIFO stations, with a wheel width of up to 55 mm 2 slots at the top, set at 45°; closed back side for optional full-surface adhesion to the floor To extend two guiding rails, connect them face to face with connecting strip in the slots; Posts can be mounted in the slot from above; To securely fix to the floor, use the optional mounting set; Mounting of a brush brake or an end stop with 2 optional mounting sets as a support baseMaterial:AluminumSurface:AnodizedTip:Compatible Connecting Strip see 096010S61 Compatible Infeed Cap for FIFO Monorail Rail (Set) see 02082CCS02 Compatible Monorail Angle Connector for Post see 093WS30145S01 Compatible Mounting Set for Posts Support Struts see 093WS30145S02 Compatible Cover Profiles see 092050; Compatible Mounting for FIFO Monorail Rail 40 and 55 (Set) see 02082MBDelivery Countries:Worldwide
Description:To securely fix FIFO Monorail Rails to the floor; For use as a support base to mount a brush brake or an end stopMaterial:SteelSurface:Zinc platedSet:2 Mounting, 4 T-slot nuts - slot 8 - M6, 6 screws DIN EN ISO 4762 (DIN 912) - M6 x 12, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 16Tip:Compatible Brush Brake see 02082BB Compatible variable End Stop for FIFO Monorail Rail 40 see 096030S52 Compatible variable End Stop for FIFO Monorail Rail 55 see 096030S12Delivery Countries:Worldwide
