Friction Joint B45L for System Arm (Set)
Regular price:
€0.00
Part #:
061FGZ45LN10
Pack Quantity:
1 piece
Description:

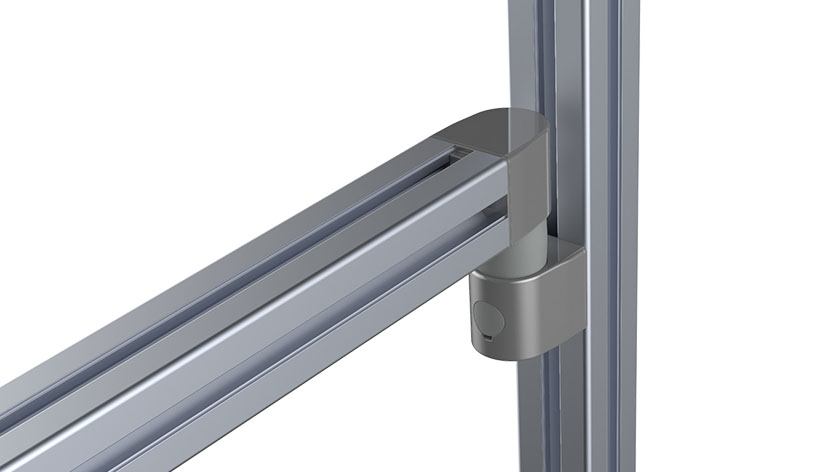

Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°;
Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°;
Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
Material:
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel
Surface:
Housing: Powder coated
Centering plates: Powder coated
Screws: Zinc plated
Washers: Zinc plated
T-slot nuts: Zinc plated
Color:
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color

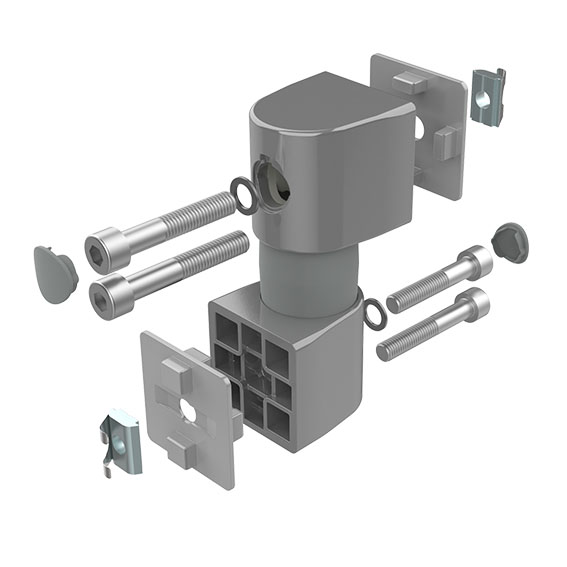

Set:
1 friction joint
2 cover caps
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut)
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole)
2 washers 8-FSt
2 centering plates
2 T-slot nuts - slot 10 - M8
Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Delivery Countries:
Worldwide
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel
Surface:
Housing: Powder coated
Centering plates: Powder coated
Screws: Zinc plated
Washers: Zinc plated
T-slot nuts: Zinc plated
Color:
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color
Set:
1 friction joint
2 cover caps
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut)
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole)
2 washers 8-FSt
2 centering plates
2 T-slot nuts - slot 10 - M8
Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Delivery Countries:
Worldwide
| Pack Quantity: | 1 piece |
|---|---|
| Model: | 45 mm modular dimension |
| Weight (g): | 813.5 |
| ERP Number: | 146980 |
Product Portraits
Classifications
- ECLASS 6.0
- 23360301
- ECLASS 7.0
- 23360301
- ECLASS 8.0
- 23360301
- ECLASS 9.0
- 23360301
- ECLASS 10.0
- 23360301
- ECLASS 11.0
- 23360301
- ECLASS 12.0
- 23360301
- ECLASS 13.0
- 23360301
- Zolltarifnummer
- 76169990990
- Customs Tariff Number Export
- 73269098
Certificates
Skip product gallery
Matching accessories
Cutting Bush with Shank
Regular price:
€0.00
Material:
Steel
Profile:
I / B
Surface:
Zinc plated
Description:For reduction from core hole 10.2 mm to M8 threadMaterial:SteelSurface:Zinc platedTip:Compatible Screw-in Tool for Cutting Bush with Shank see 09308802Delivery Countries:Worldwide
