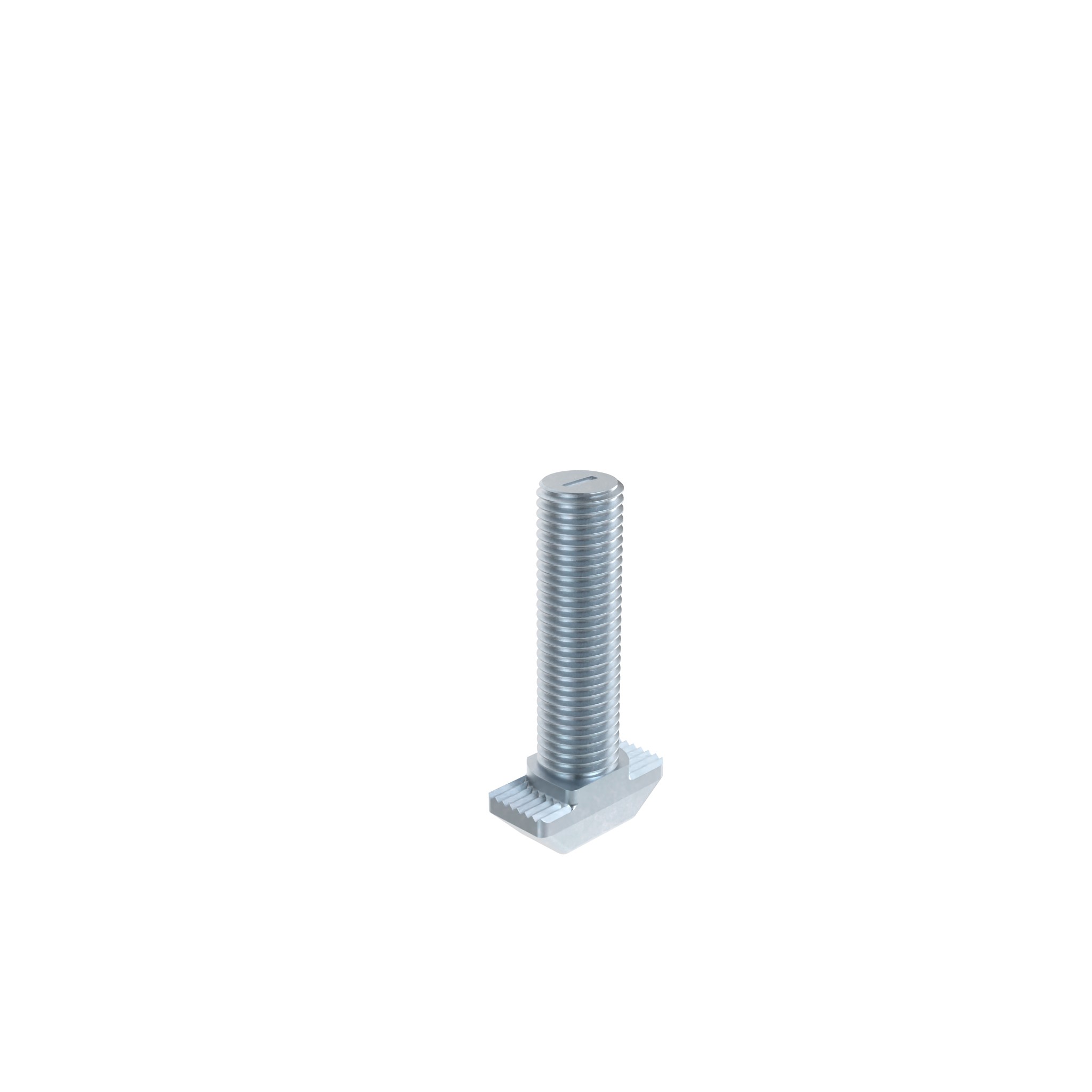

Hammer Head Screw Slot 10

Product information "Hammer Head Screw Slot 10"

Delivery Countries:
Worldwide

Description:
To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, electrically ESD conductive connection

Material:
Steel / stainless steel SS316

Specials:
Turning help: Polyamide thread locking dot on request
Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on request

Surface:
Zinc plated / plain

Tip:
Compatible Flange Nut see 340ME154
* Made of hammer nut with glued threaded rod
(ECLASS 6.0): 23110119
(ECLASS 7.0): 23110119
(ECLASS 8.0): 23110119
(ECLASS 9.0): 23110119
(ECLASS 10.0): 23110119
(ECLASS 11.0): 23110119
(ECLASS 12.0): 23110119
(ECLASS 13.0): 23110119
Customs Tariff Number Export: 73181595
Model: Slot 10, steel / stainless steel
Pack Quantity: 100 pieces
Weight (g): 15.7
pA Number: 103021

Variants

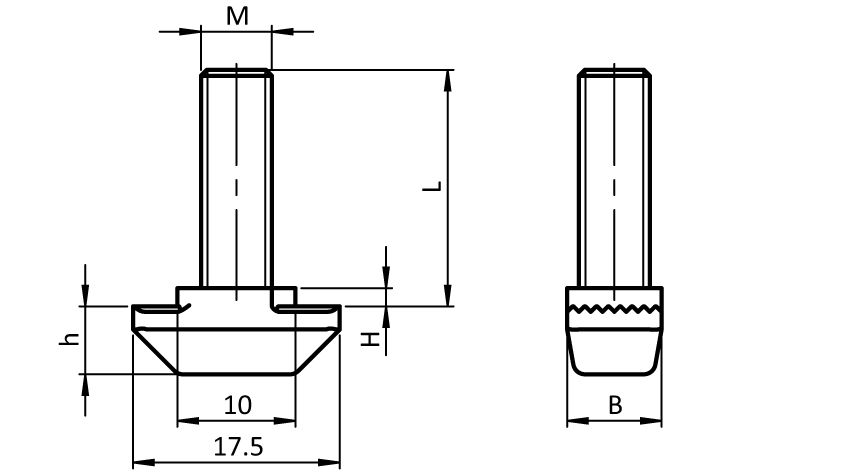

Product ID H (mm) h (mm) B (mm) Material Profile Size M x L (mm)
096HK1015M0620 1.5 5.8 9.7 Steel *M6 x 20
096HK1015M0625 1.5 5.8 9.7 Steel *M6 x 25
096HK1015M0630 1.5 5.8 9.7 Steel *M6 x 30
096HK1015M0640 1.5 5.8 9.7 Steel *M6 x 40
096HK1015M0660 1.5 5.8 9.7 Steel *M6 x 60
096HK1015M0820 1.5 5.8 7.9 Steel M8 x 20
096HK1015M0825 1.5 5.8 7.9 Steel M8 x 25
096HK1015M0830 1.5 5.8 9.7 Steel *M8 x 30
096HK1015M0840 1.5 5.8 9.7 Steel *M8 x 40
096HK1015M0860 1.5 5.8 9.7 Steel *M8 x 60
096HK1030M0620 3.0 5.8 9.7 Steel B *M6 x 20
096HK1030M0620E 3.0 5.8 8.5 Stainless steel B M6 x 20
096HK1030M0625 3.0 5.8 9.7 Steel B *M6 x 25
096HK1030M0625E 3.0 5.8 8.5 Stainless steel B M6 x 25
096HK1030M0630 3.0 5.8 9.7 Steel B *M6 x 30
096HK1030M0630E 3.0 5.8 8.5 Stainless steel B M6 x 30
096HK1030M0640 3.0 5.8 9.7 Steel B *M6 x 40
096HK1030M0660 3.0 5.8 9.7 Steel B *M6 x 60
096HK1030M0820 3.0 5.8 8.5 Steel B M8 x 20
096HK1030M0820E 3.0 5.8 8.5 Stainless steel B *M8 x 20
096HK1030M0825 3.0 5.8 8.5 Steel B M8 x 25
096HK1030M0825E 3.0 5.8 8.5 Stainless steel B *M8 x 25
096HK1030M0830 3.0 5.8 8.5 Steel B M8 x 30
096HK1030M0830E 3.0 5.8 8.5 Stainless steel B M8 x 30
096HK1030M0840 3.0 5.8 8.5 Steel B M8 x 40
096HK1030M0840E 3.0 5.8 8.5 Stainless steel B M8 x 40
096HK1030M0860 3.0 5.8 8.5 Steel B M8 x 60
096HK1030M0860E 3.0 5.8 8.5 Stainless steel B M8 x 60
096HK1045M0820 4.5 5.8 8.5 Steel B M8 x 20
096HK1045M0825 4.5 5.8 8.5 Steel B M8 x 25
096HK1045M0830 4.5 5.8 8.5 Steel B M8 x 30
