Hammer Head Screw Slot 8

Product information "Hammer Head Screw Slot 8"

Delivery Countries:
Worldwide

Description:

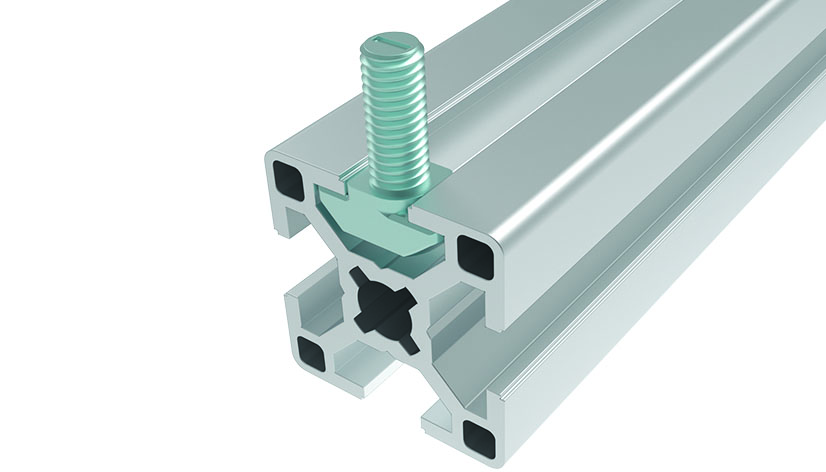

To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, electrically ESD conductive connection

Material:
Steel / stainless steel SS304

Specials:
Turning help: Polyamide thread locking dot on request
Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on request

Surface:
Zinc plated / plain

Tip:
Compatible flange nut see 340ME154
* Made of hammer nut SS316 with glued threaded rod SS304
(ECLASS 6.0): 23110119
(ECLASS 7.0): 23110119
(ECLASS 8.0): 23110119
(ECLASS 9.0): 23110119
(ECLASS 10.0): 23110119
(ECLASS 11.0): 23110119
(ECLASS 12.0): 23110119
(ECLASS 13.0): 23110119
Model: Slot 8, steel / stainless steel
Pack Quantity: 100 pieces
Weight (g): 11.2

Variants

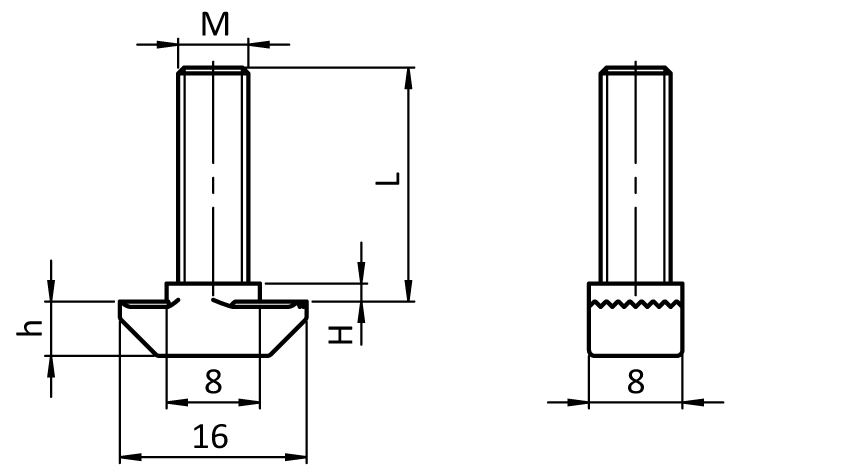

Product ID H (mm) Profile h (mm) Material Size M x L (mm)
096HK0815M0616 1.5 B 4.7 Steel M6 x 16
096HK0815M0620 1.5 B 4.7 Steel M6 x 20
096HK0815M0620E 1.5 B 4.7 Stainless steel *M6 x 20
096HK0815M0625 1.5 B 4.7 Steel M6 x 25
096HK0815M0625E 1.5 B 4.7 Stainless steel *M6 x 25
096HK0815M0630 1.5 B 4.7 Steel *M6 x 30
096HK0815M0630E 1.5 B 4.7 Stainless steel *M6 x 30
096HK0815M0640 1.5 B 4.7 Steel *M6 x 40

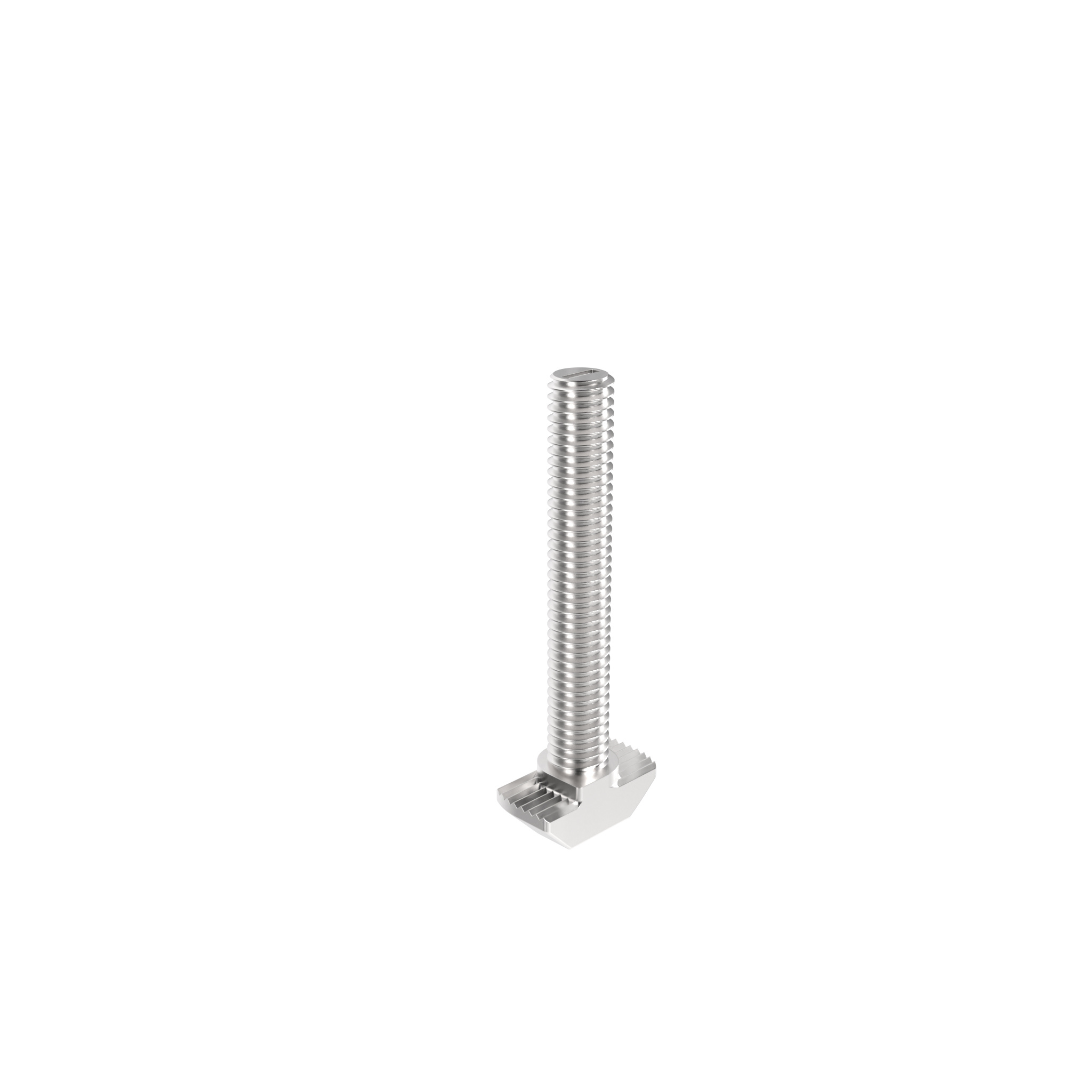

096HK0815M0640E 1.5 B 4.7 Stainless steel *M6 x 40
096HK0815M0660 1.5 B 4.7 Steel M6 x 60
096HK0815M0820 1.5 B 4.7 Steel M8 x 20
096HK0815M0825 1.5 B 4.7 Steel M8 x 25
096HK0815M0830 1.5 B 4.7 Steel M8 x 30
096HK0830M0620 3.0 I 4.7 Steel M6 x 20
096HK0830M0625 3.0 I 4.7 Steel M6 x 25
096HK0830M0630 3.0 I 4.7 Steel *M6 x 30
096HK0830M0640 3.0 I 4.7 Steel *M6 x 40
096HK0830M0660 3.0 I 4.7 Steel *M6 x 60
096HK0830M0820 3.0 I 4.7 Steel M8 x 20
096HK0830M0825 3.0 I 4.7 Steel M8 x 25
096HK0830M0830 3.0 I 4.7 Steel M8 x 30
096HK0830M0840 3.0 I 4.7 Steel M8 x 40
