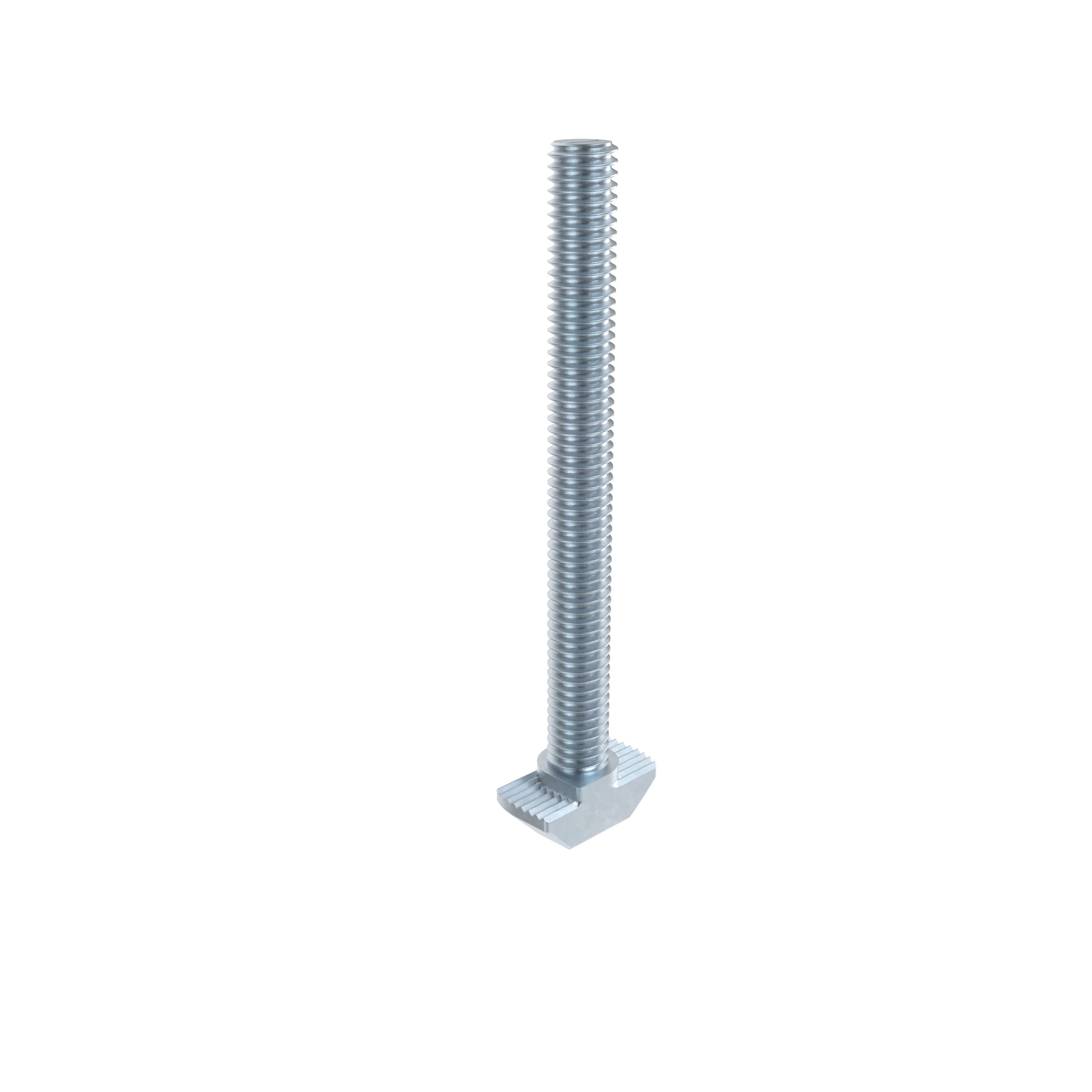

Hammer Head Screw Slot 8

Product information "Hammer Head Screw Slot 8"

Delivery Countries:
Worldwide

Description:
To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, electrically ESD conductive connection

Material:
Steel / stainless steel SS304

Specials:
Turning help: Polyamide thread locking dot on request
Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on request

Surface:
Zinc plated / plain

Tip:
Compatible Flange Nut see 340ME154
*Made of hammer nut with glued threaded rod

Model:	Slot 8, steel / stainless steel
Pack Quantity:	100 pieces
Customs Tariff Number Export:	73181595
Weight (g):	13.4
ECLASS 6.0:	23110119
ECLASS 7.0:	23110119
ECLASS 8.0:	23110119
ECLASS 9.0:	23110119
ECLASS 10.0:	23110119
ECLASS 11.0:	23110119
ECLASS 12.0:	23110119
ECLASS 13.0:	23110119
ERP Number:	103003

Variants

Part #	H (mm)	h (mm)	Material	Size M x L (mm)	Profile
096HK0815M0616	1.5	4.7	Steel	M6 x 16	B
096HK0815M0620	1.5	4.7	Steel	M6 x 20	B
096HK0815M0620E	1.5	4.7	Stainless steel	*M6 x 20	B
096HK0815M0625	1.5	4.7	Steel	M6 x 25	B
096HK0815M0625E	1.5	4.7	Stainless steel	*M6 x 25	B
096HK0815M0630	1.5	4.7	Steel	*M6 x 30	B
096HK0815M0630E	1.5	4.7	Stainless steel	*M6 x 30	B
096HK0815M0640	1.5	4.7	Steel	*M6 x 40	B
096HK0815M0640E	1.5	4.7	Stainless steel	*M6 x 40	B
096HK0815M0660	1.5	4.7	Steel	M6 x 60	B
096HK0815M0820	1.5	4.7	Steel	M8 x 20	B
096HK0815M0825	1.5	4.7	Steel	M8 x 25	B
096HK0815M0830	1.5	4.7	Steel	M8 x 30	B
096HK0830M0620	3.0	4.7	Steel	M6 x 20	I
096HK0830M0625	3.0	4.7	Steel	M6 x 25	I
096HK0830M0630	3.0	4.7	Steel	*M6 x 30	I
096HK0830M0640	3.0	4.7	Steel	*M6 x 40	I
096HK0830M0660	3.0	4.7	Steel	*M6 x 60	I
096HK0830M0820	3.0	4.7	Steel	M8 x 20	I
096HK0830M0825	3.0	4.7	Steel	M8 x 25	I
096HK0830M0830	3.0	4.7	Steel	M8 x 30	I
096HK0830M0840	3.0	4.7	Steel	M8 x 40	I
