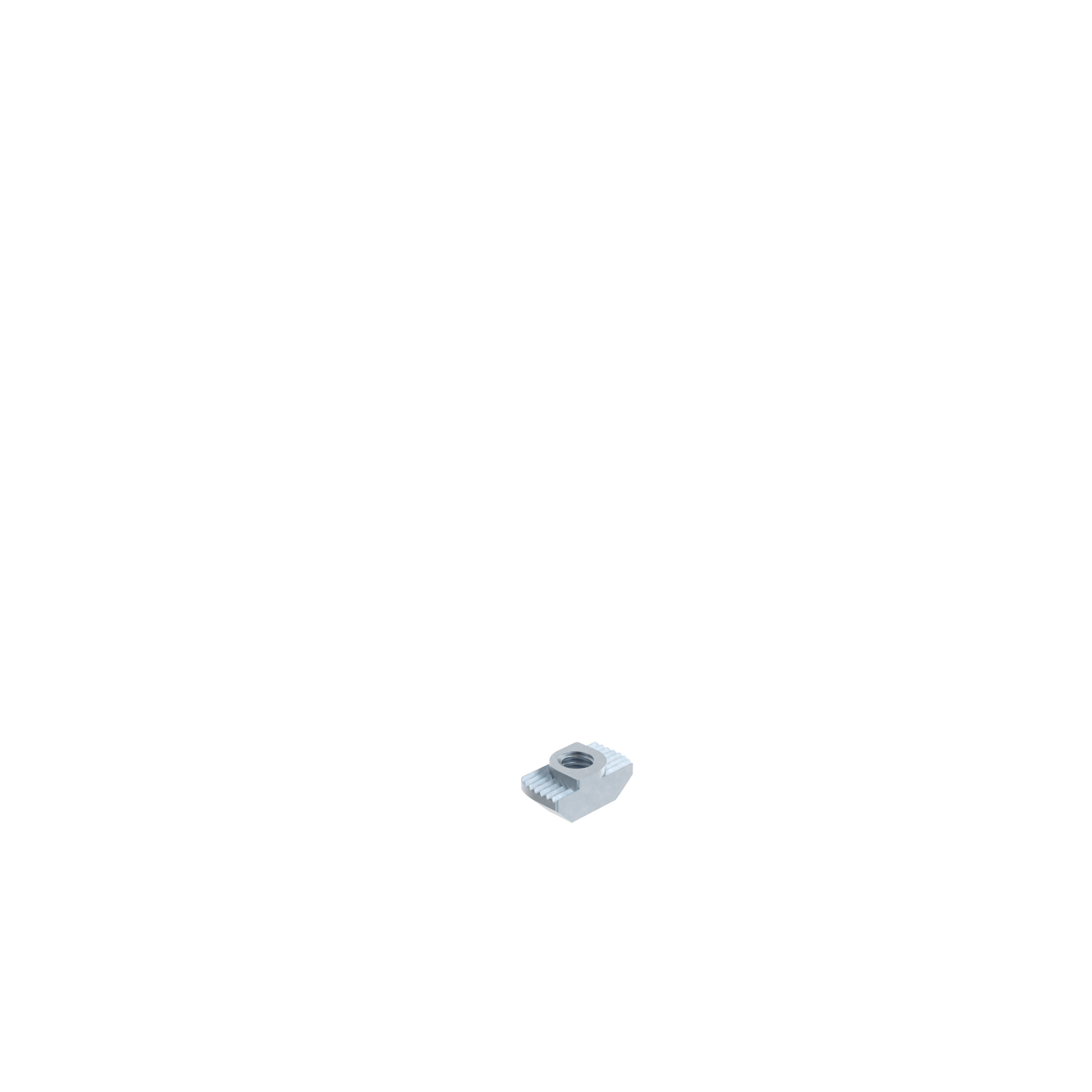

Hammer Nut Slot 6

Product information "Hammer Nut Slot 6"

Delivery Countries:
Worldwide

Description:

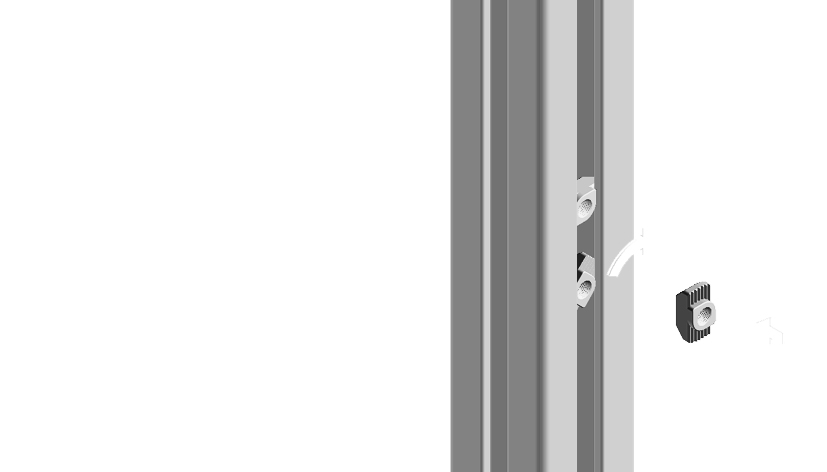

To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatic discharging connection

Material:
Steel / stainless steel SS304

Specials:
Turning help: Dented thread, thread pitch error or polyamide thread locking dot on request
Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on request

Surface:
Zinc plated / plain
(ECLASS 6.0): 23110890
(ECLASS 7.0): 23110810
(ECLASS 8.0): 23110810
(ECLASS 9.0): 23110810
(ECLASS 10.0): 23110810
(ECLASS 11.0): 23110716
(ECLASS 12.0): 23110716
(ECLASS 13.0): 23110716
Model: Slot 6, steel / stainless steel
Pack Quantity: 100 pieces
Weight (g): 1.0

Variants

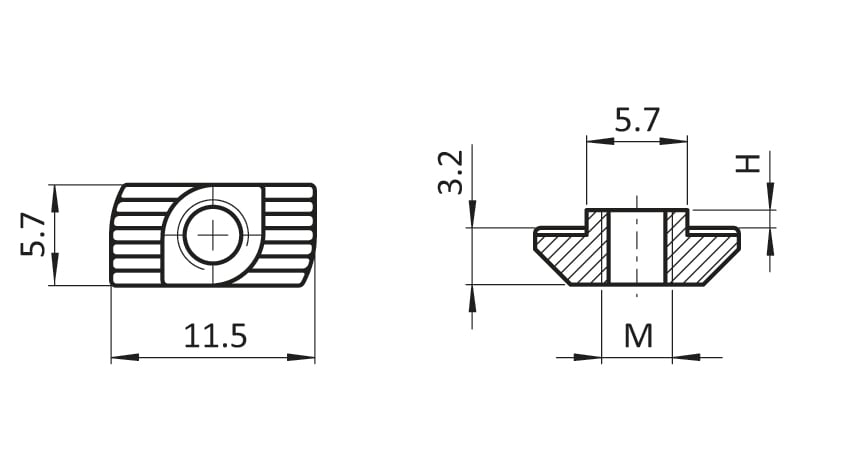

Product ID H (mm) Profile M Material
096H06410 1.0 B M4 Steel
096H06410E 1.0 B M4 Stainless steel

CAD Downloads

Certificates
