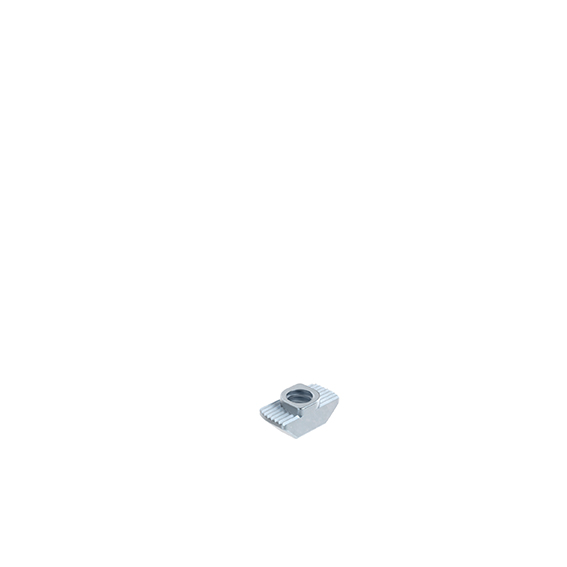

Hammer Nut Slot 8, Step Height 1.5/3.0 mm

Product information "Hammer Nut Slot 8, Step Height 1.5/3.0 mm"

Delivery Countries:
Worldwide

Description:

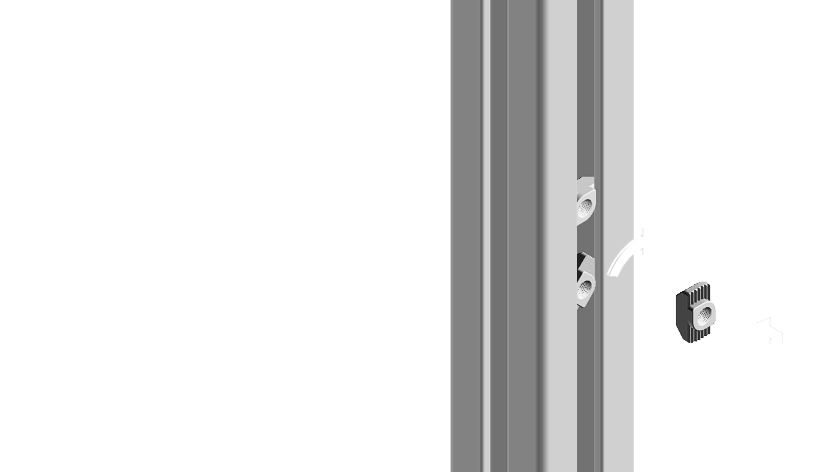

To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatic discharging connection

Material:
Steel / stainless steel SS304

Specials:
Turning help: Dented thread, thread pitch error or polyamide thread locking dot on request
Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on request

Surface:
Zinc plated / plain
(ECLASS 6.0): 23110890
(ECLASS 7.0): 23110810
(ECLASS 8.0): 23110810
(ECLASS 9.0): 23110810
(ECLASS 10.0): 23110810
(ECLASS 11.0): 23110716
(ECLASS 12.0): 23110716
(ECLASS 13.0): 23110716
Model: Slot 8, steel / stainless steel
Pack Quantity: 100 pieces
Weight (g): 2.9

Variants

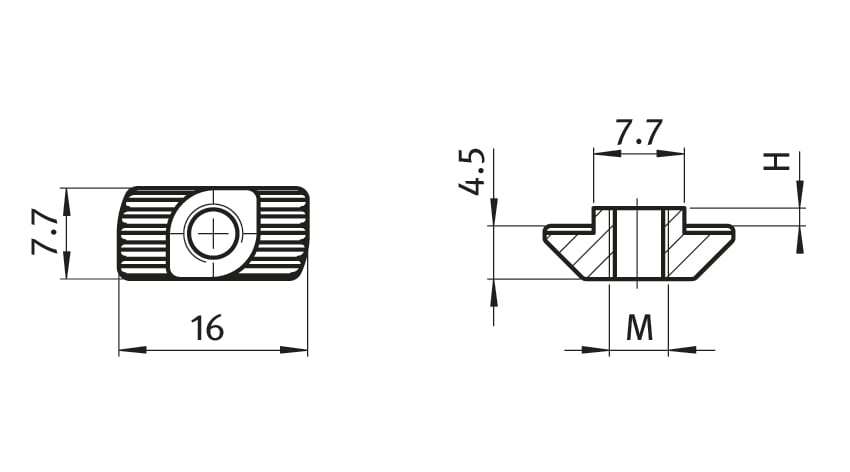

Product ID H (mm) Profile M Material Slot N (mm)
096H081/415 1.5 B 1/4-20 UNC Steel
096H081/415E 1.5 B 1/4-20 UNC Stainless steel
096H081/430 3.0 I 1/4-20 UNC Steel
096H0810-3215 1.5 B 10-32 UNF Steel
096H08415 1.5 B M4 Steel 8
096H08430 3.0 I M4 Steel 8
096H08515 1.5 B M5 Steel 8
096H08530 3.0 I M5 Steel 8
096H08615 1.5 B M6 Steel 8
096H08615E 1.5 B M6 Stainless steel 8
096H08630 3.0 I M6 Steel 8
