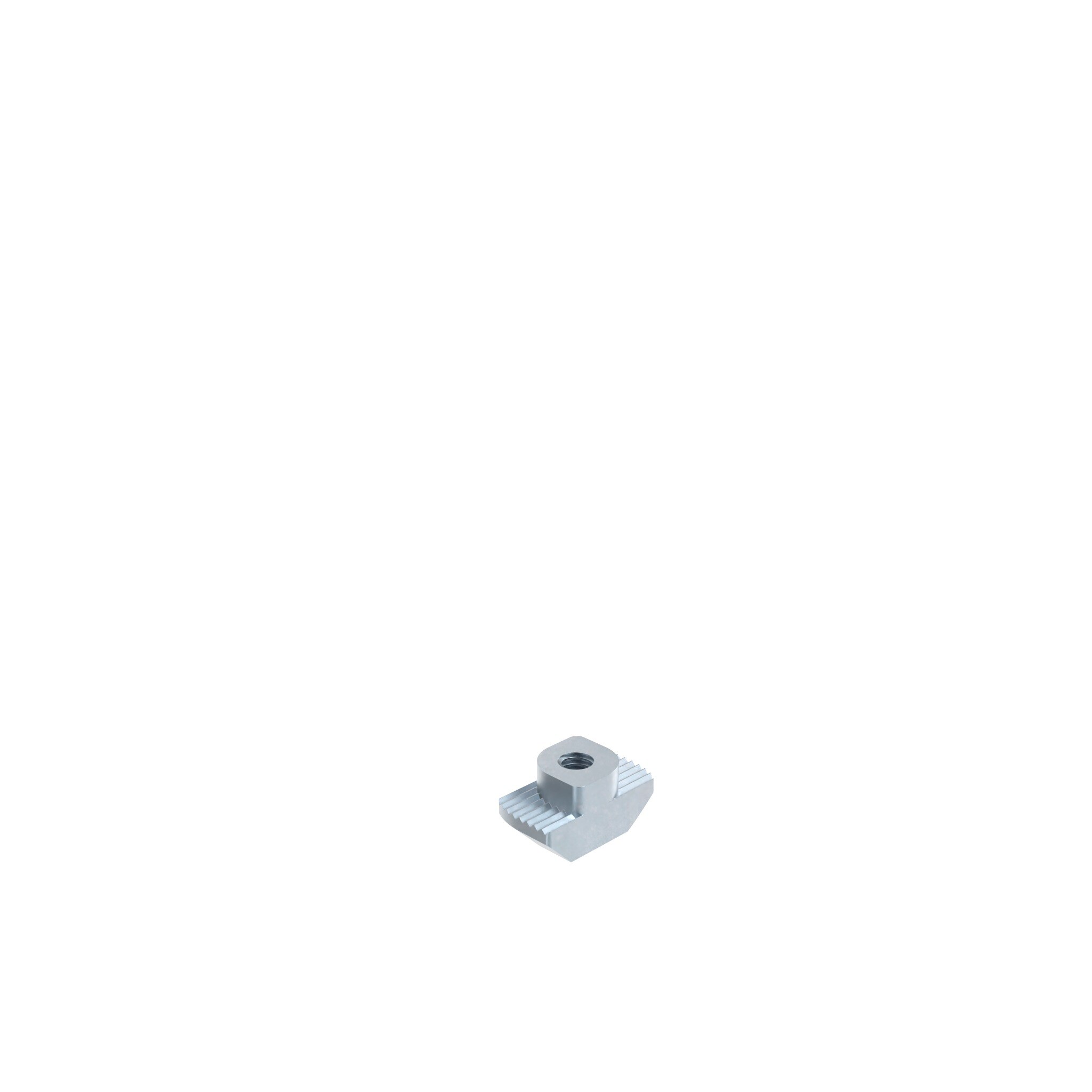

Hammer Nut Slot 8, Step Height 1.5/3.0 mm

Product information "Hammer Nut Slot 8, Step Height 1.5/3.0 mm"

Delivery Countries:
Worldwide / North America

Description:
To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connection

Material:
Steel / stainless steel SS304

Specials:
Turning help: Dented thread, thread pitch error or polyamide thread locking dot on request
Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on request

Surface:
Zinc plated / plain

Pack Quantity:	100 pieces
Model:	Slot 8, steel / stainless steel
Weight (g):	4.5
ERP Number:	102928

Variants

Part #	Material	H (mm)	Profile	M	Slot N (mm)
096H08415	Steel	1.5	B	M4	8
096H08515	Steel	1.5	B	M5	8
096H08615	Steel	1.5	B	M6	8
096H0810-3215	Steel	1.5	B	10-32 UNF	-
096H081/415	Steel	1.5	B	1/4-20 UNC	-
096H08430	Steel	3.0	I	M4	8
096H08530	Steel	3.0	I	M5	8
096H08630	Steel	3.0	I	M6	8
096H081/430	Steel	3.0	I	1/4-20 UNC	-
096H08615E	Stainless steel	1.5	B	M6	8
096H081/415E	Stainless steel	1.5	B	1/4-20 UNC	-
