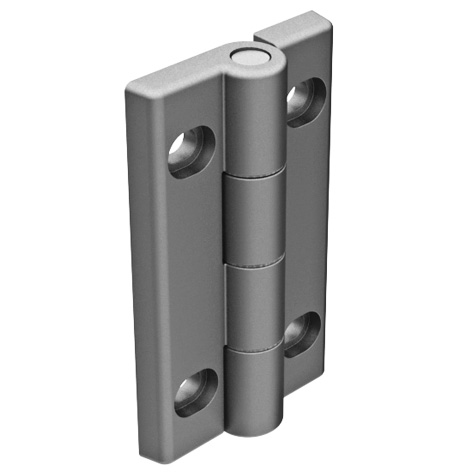

Heavy-duty Hinge
Regular price:
€0.00
Part #:
095051
Pack Quantity:
10 pieces
Description:
For panels and aluminum profiles, with bearing system for bolt
For panels and aluminum profiles, with bearing system for bolt
Material:
Wing: Aluminum die-cast
Bolt: Stainless steel
Bearings: PTFE
Surface:
Wing: Laquered
Bolt: Plain
Color:
Wing: Alu color
Fastening:
From the front, using socket head screws DIN 7984 - M6 or pan-head screws DIN EN ISO 7380 (34805) - M6
Delivery Countries:
Worldwide
Wing: Aluminum die-cast
Bolt: Stainless steel
Bearings: PTFE
Surface:
Wing: Laquered
Bolt: Plain
Color:
Wing: Alu color
Fastening:
From the front, using socket head screws DIN 7984 - M6 or pan-head screws DIN EN ISO 7380 (34805) - M6
Delivery Countries:
Worldwide
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | Non-detachable |
| Weight (g): | 155.0 |
| ERP Number: | 123831 |
Product Portraits
Classifications
- ECLASS 6.0
- 23219090
- ECLASS 7.0
- 23219090
- ECLASS 8.0
- 23219090
- ECLASS 9.0
- 23219090
- ECLASS 10.0
- 23219090
- ECLASS 11.0
- 23219090
- ECLASS 12.0
- 23219090
- ECLASS 13.0
- 23219090
- Zolltarifnummer
- 83021000900
- Customs Tariff Number Export
- 83021000
