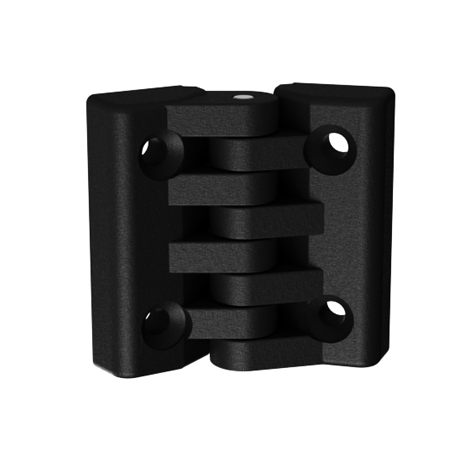

Heavy-duty Plastic Hinge 65 x 64

Product information "Heavy-duty Plastic Hinge 65 x 64"

Color:
Black

Delivery Countries:
Worldwide

Description:

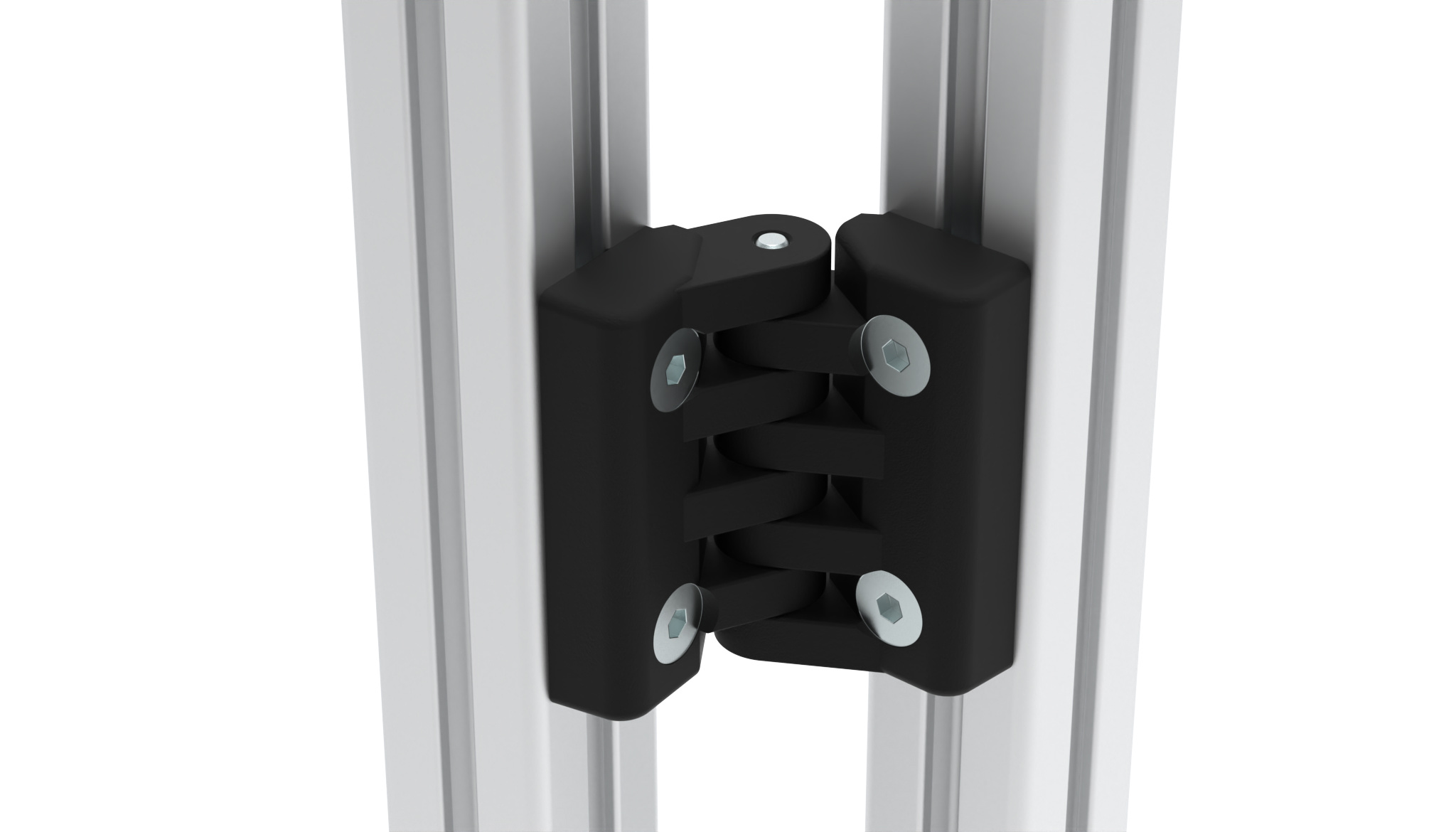

To hinge panels or aluminum profiles

Material:
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel

Specials:
ESD electrostatical discharging, other sizes, other colors on request
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Customs Tariff Number Export: 39263000
Fastening: From the front, using M6 countersunk screws
Model: Non-detachable
Pack Quantity: 100 pieces
Weight (g): 62.0
Zolltarifnummer: 39263000900
pA Number: 110979

Variants

Product ID FAmax (N) FRmax (N)
095065 1520 2850
