Heavy-duty Plastic Hinges

Filter products

Heavy-duty Plastic Hinge 30, Black – product image of all versions

Heavy-duty Plastic Hinge 30, Black

Version: - Slot N (mm): - B1 (mm): 30.0 B2 (mm): 30.0 Combination: 30 / 30 FAmax (N): 150.0 FRmax (N): 280.0 A1 (mm): 17.5 A2 (mm): 17.5

Description:To hinge panels or aluminum profiles; each side has two holes for centering boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steel Assembly set: SteelSurface:Bolt: Plain Assembly set: Zinc platedColor:Wings: BlackFastening:From the front, using M6 countersunk screwsAssembly Set 1:2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 16, 2 hammer nuts slot 8 - M6Assembly Set 2:1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 16, 1 hammer nut slot 8 - M6, 1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 18, 1 hammer nut slot 10 - M6Specials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Heavy-duty Plastic Hinge 40, Black – product image of all versions

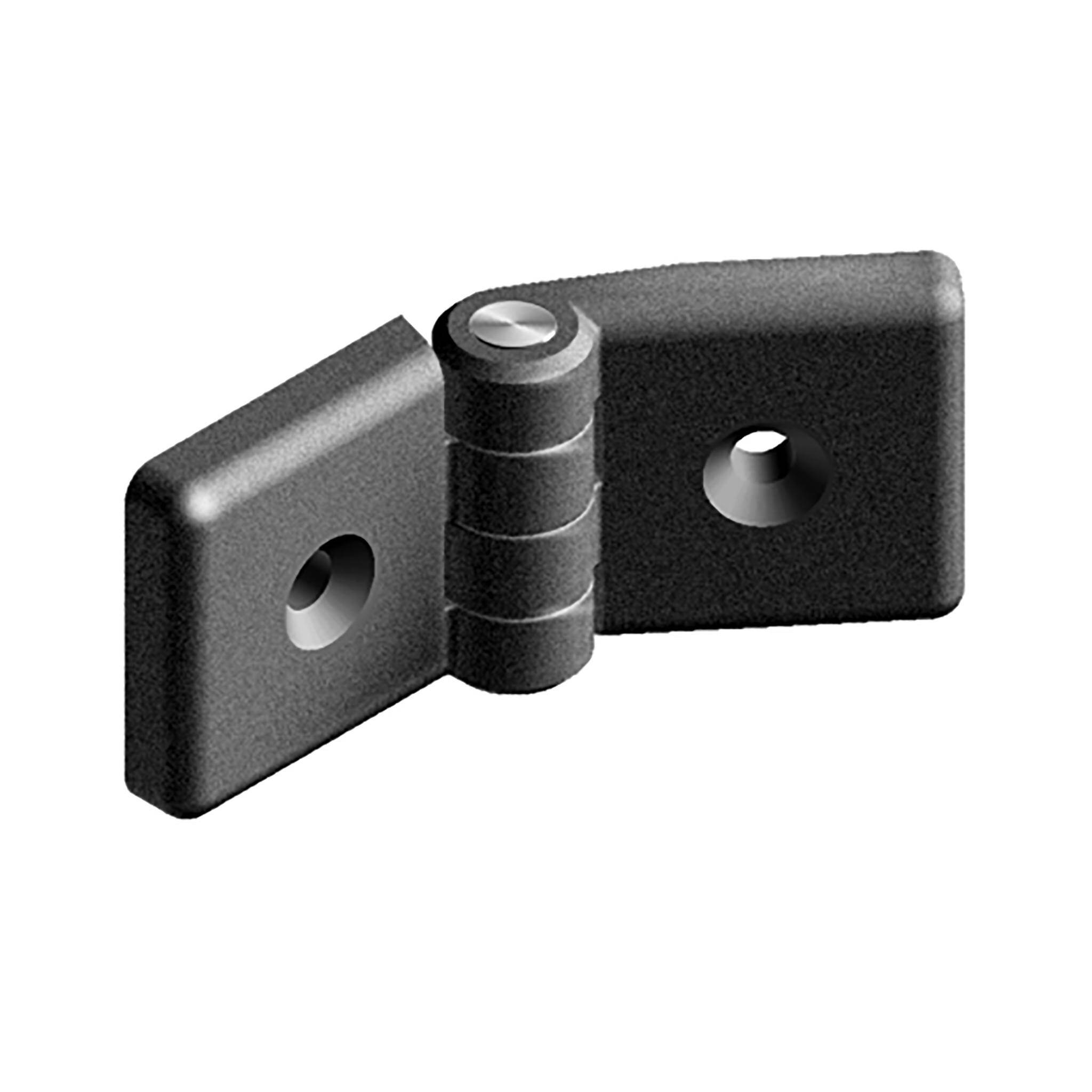

Heavy-duty Plastic Hinge 40, Black

Version: - Slot N (mm): - B1 (mm): 39.0 B2 (mm): 39.0 Combination: 40 / 40 FAmax (N): 150.0 FRmax (N): 280.0 A1 (mm): 22.5 A2 (mm): 22.5

Description:To hinge panels or aluminum profiles; each side has two holes for centering boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steel Assembly set: SteelSurface:Bolt: Plain Assembly set: Zinc platedColor:Wings: BlackFastening:From the front, using M6 countersunk screwsAssembly Set:2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 18, 2 hammer nuts slot 10 - M6Specials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Heavy-duty Plastic Hinge 30, Black – product image of all versions

Heavy-duty Plastic Hinge 45

Version: - Slot N (mm): - B1 (mm): 45.0 B2 (mm): 45.0 Combination: 45 / 45 FAmax (N): 150.0 FRmax (N): 280.0 A1 (mm): 25.0 A2 (mm): 25.0

Description:To hinge panels or aluminum profiles; each side has two holes for centering boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steel Assembly set: SteelSurface:Bolt: Plain Assembly set: Zinc platedColor:Wings: BlackFastening:From the front, using M6 countersunk screwsAssembly Set:2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 18, 2 hammer nuts slot 10 - M6Specials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Heavy-duty Plastic Hinge 30, Black – product image of all versions

Heavy-duty Plastic Hinge 60

Version: 60 / 60 Slot N (mm): 10 B1 (mm): 60.0 B2 (mm): 60.0 FAmax (N): 130.0 FRmax (N): 280.0 A1 (mm): 32.5 A2 (mm): 32.5

Description:To hinge panels or aluminum profiles; each side has two holes for centering boltsMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steel Assembly set: SteelSurface:Bolt: Plain Assembly set: Zinc platedColor:Wings: BlackFastening:From the front, using M6 countersunk screwsAssembly Set:2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 18, 2 hammer nuts slot 10 - M6Specials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide

€0.00
Heavy-duty Plastic Hinge 65 x 64 – product image

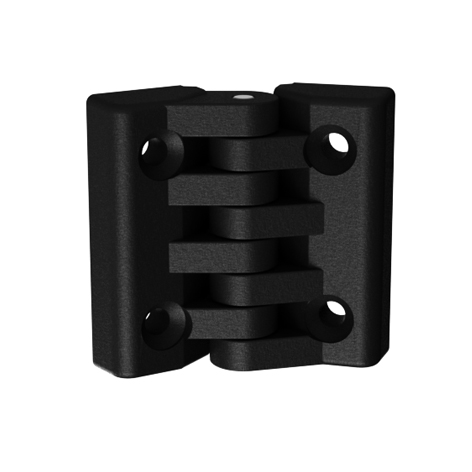

Heavy-duty Plastic Hinge 65 x 64

FAmax (N): 1520 FRmax (N): 2850

Description:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelColor:BlackFastening:From the front, using M6 countersunk screwsSpecials:ESD electrostatical discharging, other sizes, other colors on requestDelivery Countries:Worldwide
