Holding Bracket AL D30

Product information "Holding Bracket AL D30"

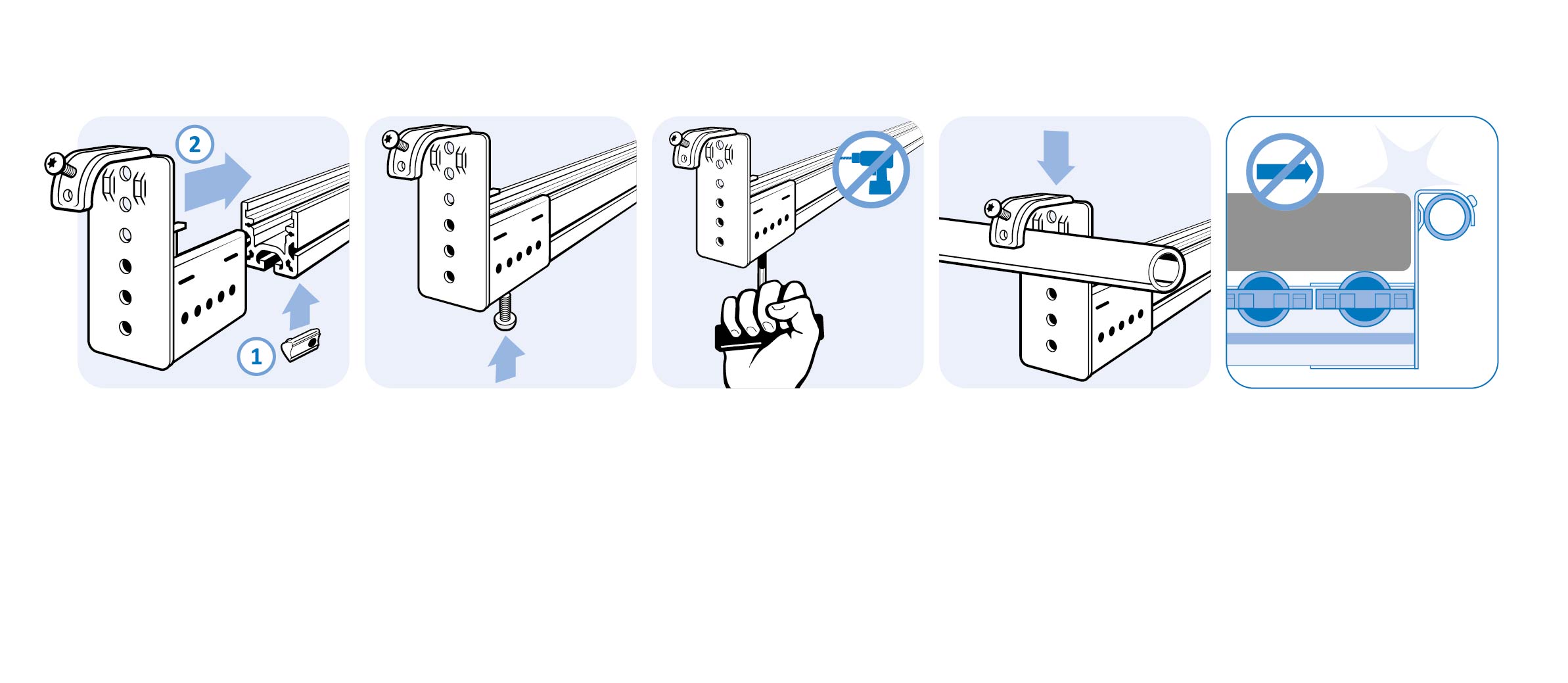

Assembly Set:
1 self-drilling screw DIN 7504 Form N - 3.9 x 16
1 washer DIN EN ISO 7089 (DIN 125)
1 T-slot nut slot 8 - M5
1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14

Delivery Countries:
Worldwide

Description:

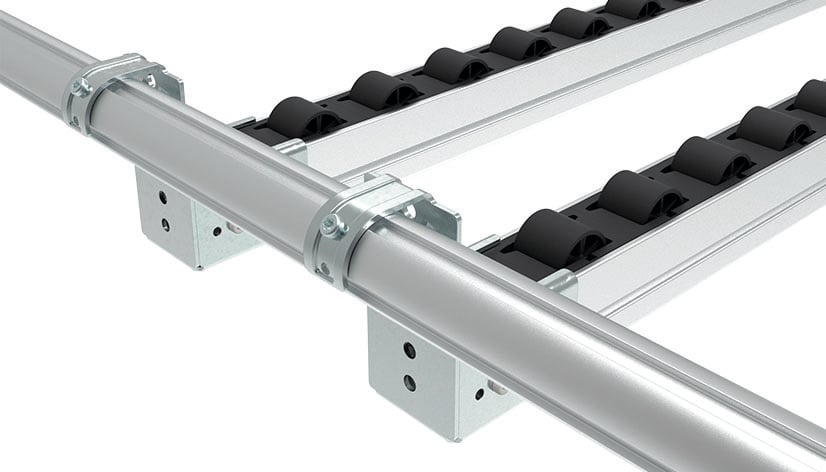

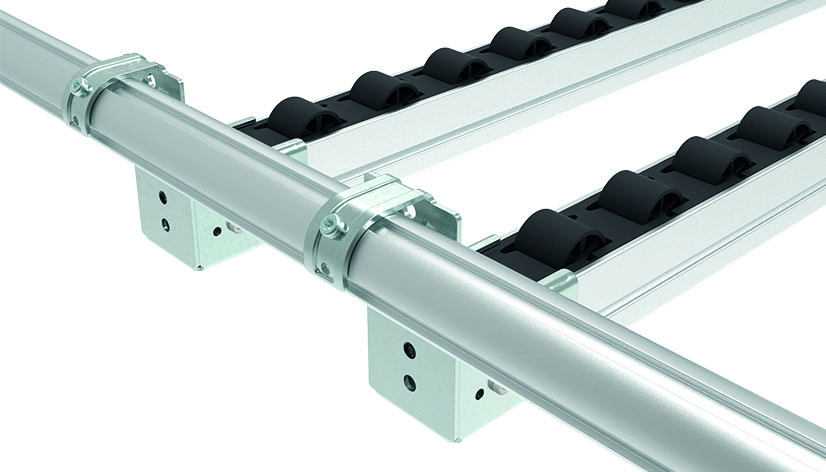

To mount AL roller track profiles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping out

Material:
Steel

Surface:
Zinc plated

Zolltarifnummer:
73269098900
Model: For roller tracks AL
Pack Quantity: 10 pieces
Weight (g): 194.0

Variants

Product ID Version Fig.
062AHSD30M With end stop
062AHSD30MS01 With end stop, with assembly set
